Custom Made Guide Rail Roll Forming Machine For Making Sliding System Devices With Hydraulic Punching

China Custom Made Guide Rail Roll Forming Machine For Making Sliding System Devices With Hydraulic Punching supplier
Custom Made Guide Rail Roll Forming Machine For Making Sliding System Devices With Hydraulic Punching supplier Custom Made Guide Rail Roll Forming Machine For Making Sliding System Devices With Hydraulic Punching supplier Custom Made Guide Rail Roll Forming Machine For Making Sliding System Devices With Hydraulic Punching supplier Custom Made Guide Rail Roll Forming Machine For Making Sliding System Devices With Hydraulic Punching supplier

Large Image :  Custom Made Guide Rail Roll Forming Machine For Making Sliding System Devices With Hydraulic Punching

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-GDA008

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Encoder: OMRON Brand Cutting: Disk Saw Cutting
Electrical Control Board: PLC Frequency Control Material Thickness: 1.5-3.0mm
Forming Speed: 0-15m/min Working Stations: About 16 Stations

Custom-Made Guide Rail Roll Forming Machine For Making Sliding System Devices With Hydraulic Punching

   Main Specifications of Guide Rail Roll Forming Machine

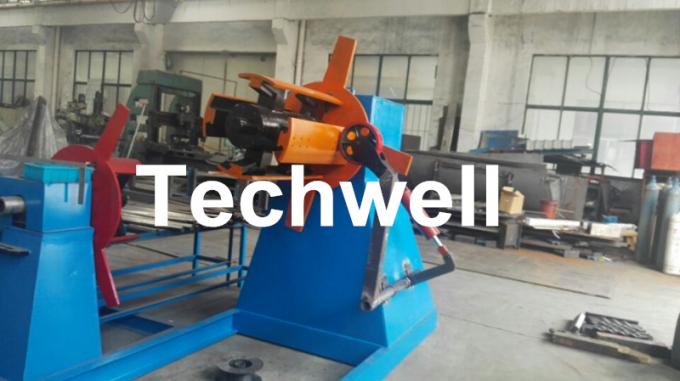

 1). 3Ton Manual Decoiler

  1. Decoiler Type: Manual type decoiler
  2. Weight capacity of decoiler: 3Ton
  3. Manual expanding
  4. Passive uncoiling
  5. I.D: 508mm, 610mm

Custom Made Guide Rail Roll Forming Machine For Making Sliding System Devices With Hydraulic Punching


 2). Feeding & Leveling Device

  1. Function: It is used to release the head of coil and feed into the forming machine, making the coil straight and flat after decoiling.


 3). Guide Rail Roll Forming Machine

  1. Material Thickness: 1.5-3.0mm
  2. Forming Material Type: Galvanized steel, PPGI
  3. Forming Frame Structure: Guiding column + Slide blocks
  4. Shaft Diameter: 80mm
  5. Material of Shaft: High grade 45# steel with heat treatment
  6. Roller Material: High grade GCr15, model steel, all treated by CNC precise machines, HRC50-54
  7. Forming Stations: About 16 stations (Depend on final design)
  8. Forming Speed: 0-15m/min
  9. Forming Motor: 11KW
  10. Transmission: Chain drive

Custom Made Guide Rail Roll Forming Machine For Making Sliding System Devices With Hydraulic Punching


 4). Punching Device

  1. Punching Type: Hydraulic punching
  2. Punching Mold Size: According to drawing
  3. Hydraulic Power: 5.5KW


 5). Cutting Device

  1. Cutting Type: Disk saw cutting
  2. Cutting Die Material: Cr12Mov
  3. Cutting Tolerance: +/-1.5mm


 6). PLC Control System

  1. Adopts PLC control technology, frequency adjust speed technology, realize the automatic production.
  2. Provide good man and machine screen, which can set the batches, plate length, and quantity.
  3. Operation type: Touching screen + Button
  4. Using encoder to calculate the number and measuring the length
  5. Electrical control: PLC frequency control system with touch screen
  6. PLC: PANASONIC Brand
  7. Encoder: OMRON Brand
  8. Size of PLC control board: 700mm (L) x 1000mm (H) x 300mm (W)


 7). Run-out Table

  1. It is used to support the finished panels
  2. Teh table we supply is 2 pieces with length of 2000mm, it can support panels with 10000mm at normal condition
  3. The frame of supporter is welded by square-steel
  4. Simple non-power table type

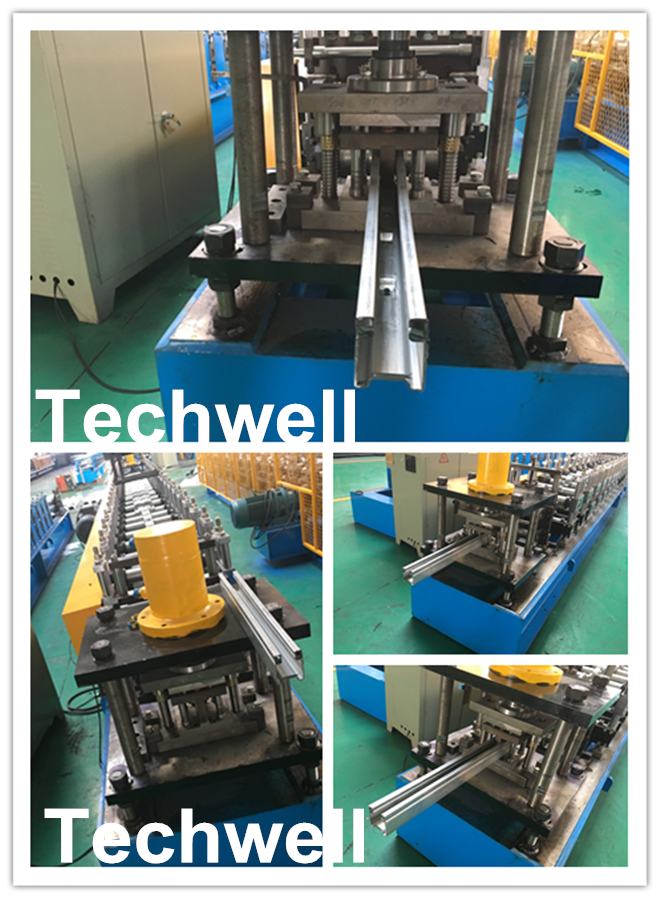

   Reference Profile Drawings


Custom Made Guide Rail Roll Forming Machine For Making Sliding System Devices With Hydraulic Punching
Custom Made Guide Rail Roll Forming Machine For Making Sliding System Devices With Hydraulic Punching
Custom Made Guide Rail Roll Forming Machine For Making Sliding System Devices With Hydraulic Punching



   Main Components


Decoiler / Uncoiler 1 Unit
Feeding & Leveling 1Unit
Main Roll Forming 1 Unit
Punching Device 1Unit
Cutting 1Unit
Hydraulic Station 1 Unit
PLC Electrical Control Board 1 Unit
Out put Tables 1 Unit

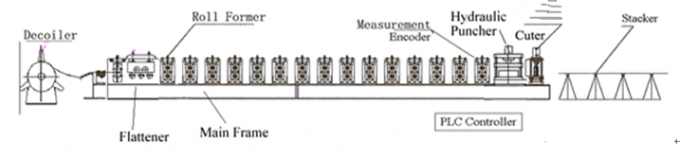

   Working Flow

Decoiler --- Feeding and Leveling --- Main Roll Forming --- Hydraulic Punching --- Cut-to-length ---
Run out Table

Custom Made Guide Rail Roll Forming Machine For Making Sliding System Devices With Hydraulic Punching


   Applications

Elevator guide rail, door frame guide rail, curtain track, shutter door slats guide

   Competitive Advantages


  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

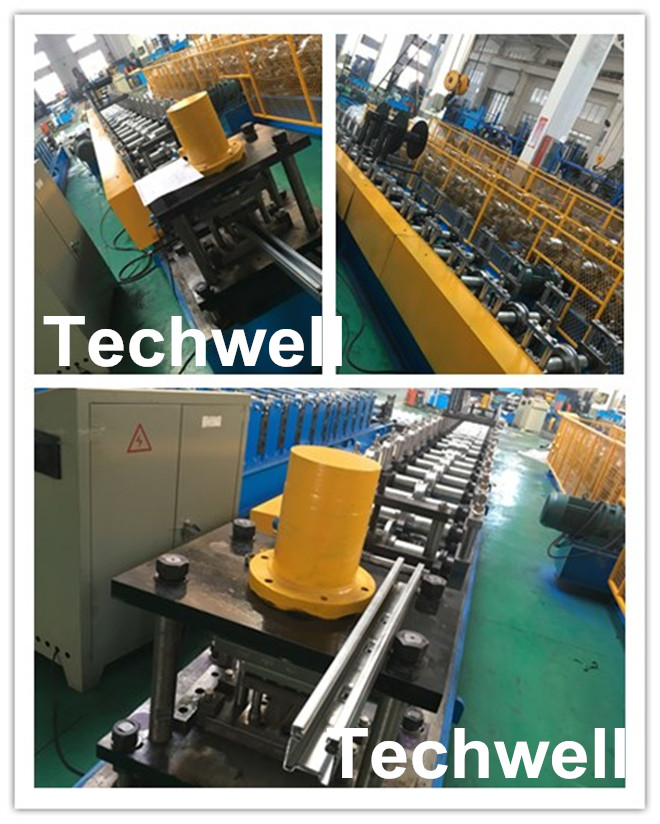

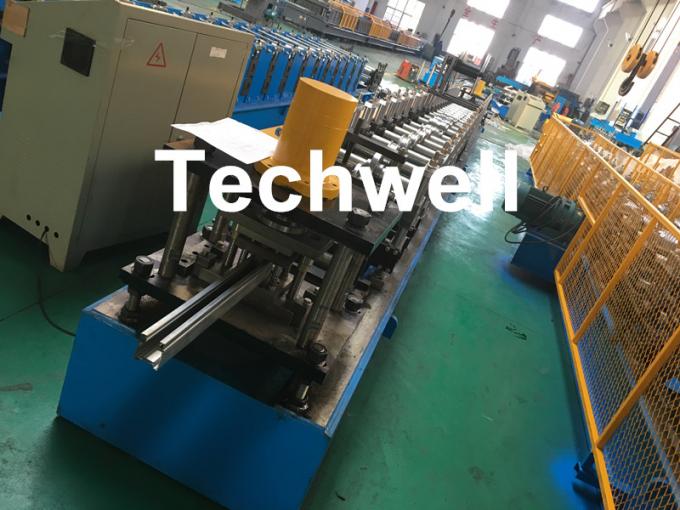

   More Machine Pictures

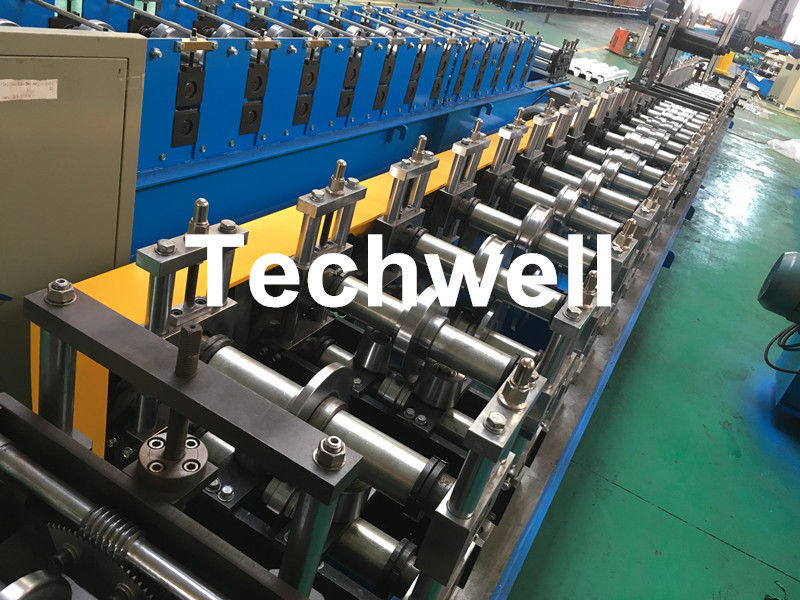

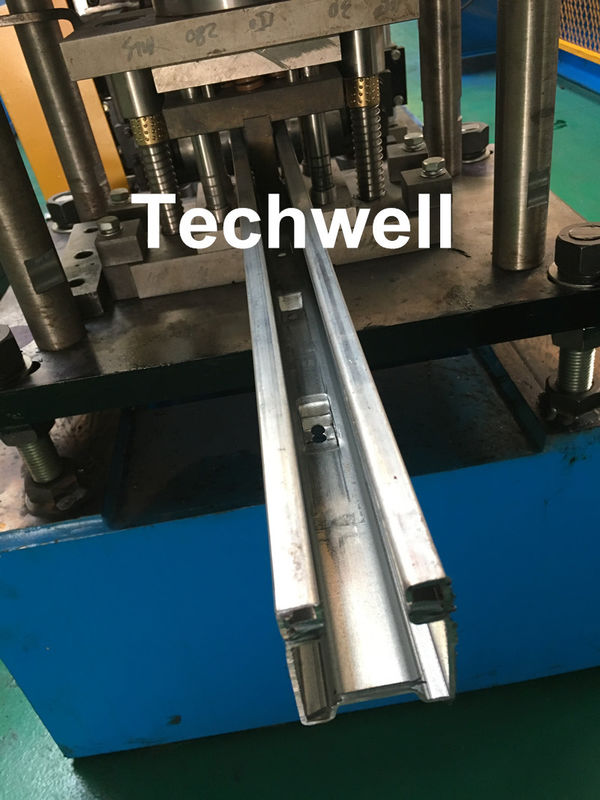

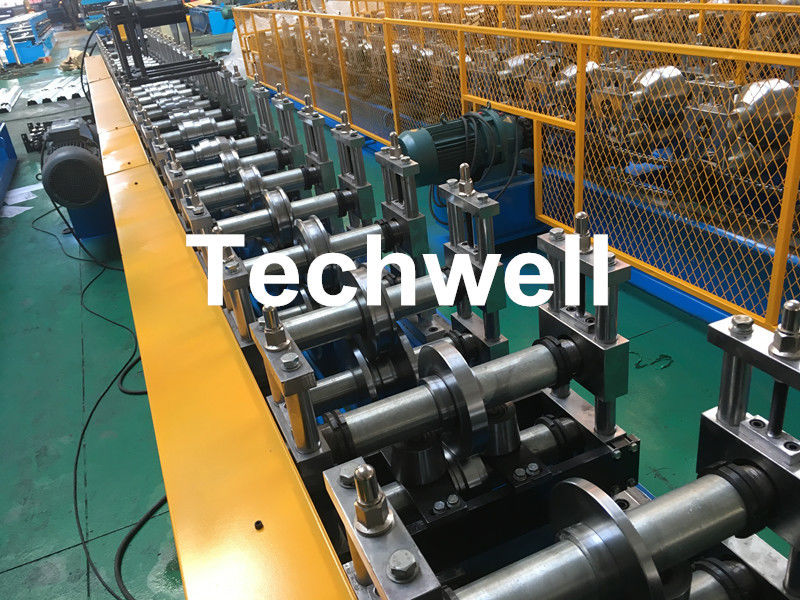

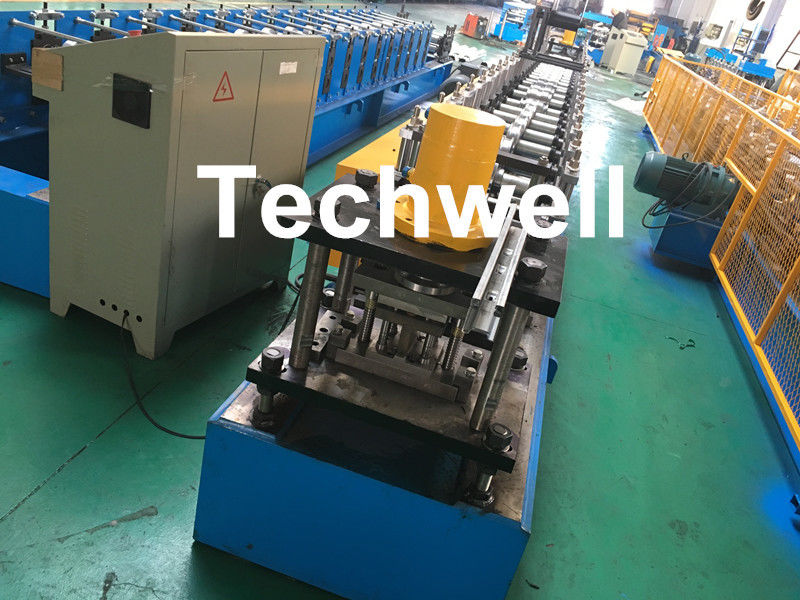

Custom Made Guide Rail Roll Forming Machine For Making Sliding System Devices With Hydraulic Punching
Custom Made Guide Rail Roll Forming Machine For Making Sliding System Devices With Hydraulic Punching
