Steel Metal Wall Cladding Roof Roll Forming Machine With PLC Control System

China Steel Metal Wall Cladding Roof Roll Forming Machine With PLC Control System supplier
Steel Metal Wall Cladding Roof Roll Forming Machine With PLC Control System supplier Steel Metal Wall Cladding Roof Roll Forming Machine With PLC Control System supplier Steel Metal Wall Cladding Roof Roll Forming Machine With PLC Control System supplier Steel Metal Wall Cladding Roof Roll Forming Machine With PLC Control System supplier

Large Image :  Steel Metal Wall Cladding Roof Roll Forming Machine With PLC Control System

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-35-200-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Drive Type: Chain Of Transmission Coil Thickness: 0.3-0.7mm
Material: Color Steel Coil, PPGI, Yield Strength 350Mpa Forming Speed: 0-20m/min
Forming Structure: Welding Wall Plate Structure Axis Diameter: 75mm

Steel Metal Roof Wall Cladding Roll Forming Machine, Roof Panel Roll Forming Machine With PLC Control System



   Feature of Roof Wall Cladding Roll Former





 1. This Wall Panel Roof Profile Roll Forming Machine can rollform metal roofing wall sheet. After roll formed by this wall panel sheet roll forming machine, the surface of iron roof wall panel is very smooth and beautiful without any scratch on the surface of profile sheets.



 2. The Roof Wall Panel Sheet Roll Forming Machine is with fully automatic control system with PLC.



 3. Length, quantity of sheets is adjustable.



 4. Rollforming process: Decoiler, Rollforming, Cut to length.



 5. Easy operation: Key in the length and quantity on the control panel.



 6. 1 Year warranty, lifelong time service.



 7. We also can do a custom roll forming machine, we can design machines according to your specifications and profile drawings, all our machines are customized.





   Main Specifications





 1). 5 Ton Manual Decoiler



  1. Decoiler Type: Manual type decoiler

  2. Weight Capacity of Decoiler: 5Ton

  3. Manual expanding

  4. Passive uncoiling

  5. I.D: 508mm



Steel Metal Wall Cladding Roof Roll Forming Machine With PLC Control System



 2). Main Roll Forming Part



  1. Forming material thickness: 0.3-0.7mm

  2. Forming material type: PPGI, GI

  3. Machine frame: high grade steel welded and tempering treatment

  4. Forming structure: Welded wall plate strcuture

  5. Forming motor: 7.5KW

  6. Shaft material: 45# high grade steel tempering treatment (HB220-260)

  7. Shaft diameter: 75mm

  8. Roller material: 45# high grade steel, and roller surface with hard chrome 0.05mm

  9. Forming speed: about 0-15m/min (excluding cutting time)

  10. Forming station: ≈ 18 stations



Steel Metal Wall Cladding Roof Roll Forming Machine With PLC Control System



 3). Hydraulic Cutting & Hydraulic Station



  1. Cutting type: Hydraulic cutting after roll forming, Burr-free cutting

  2. When cutting, Machine stop

  3. Cutting blade: 1 SET

  4. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62

  5. Hydraulic station power: 4KW

  6. Hydraulic pressure: 15Mpa

  7. Cutting Tolerance: +/-1.5mm



Steel Metal Wall Cladding Roof Roll Forming Machine With PLC Control System



 4). Electrical Control System



  1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.

  2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.



Steel Metal Wall Cladding Roof Roll Forming Machine With PLC Control System



 5). Run out Table



  1. Roller type support table

  2. to support the profile sheet after cutting





   Main Components



  • Decoiler / Uncoiler ----------------------------------------------------------------1 Unit
  • Feeding Guide --------------------------------------------------------------------1 Unit
  • Main Roll Forming Machine -----------------------------------------------------1 Unit
  • Hydraulic Cutting System --------------------------------------------------------1 Unit
  • Hydraulic Station -------------------------------------------------------------------1 Unit
  • PLC Computer Control Box ------------------------------------------------------1 Unit
  • Support Tables --------------------------------------------------------------------1 Unit



   Working Flowing



5T decoiler -------- Pinch Feeding ------ Main Roll Forming Machine ------- Hydraulic Cutting ------ Support



Table



Steel Metal Wall Cladding Roof Roll Forming Machine With PLC Control System







   Reference Profile Drawing



Steel Metal Wall Cladding Roof Roll Forming Machine With PLC Control System

Steel Metal Wall Cladding Roof Roll Forming Machine With PLC Control System

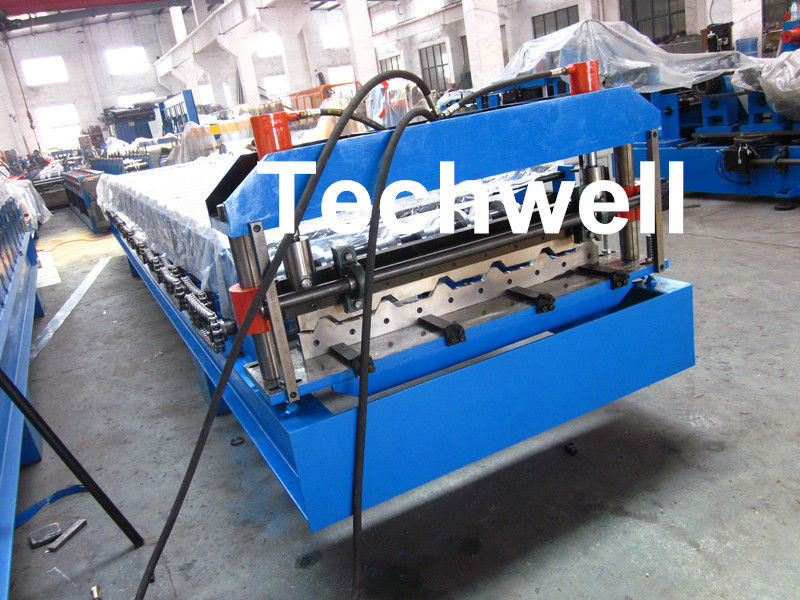

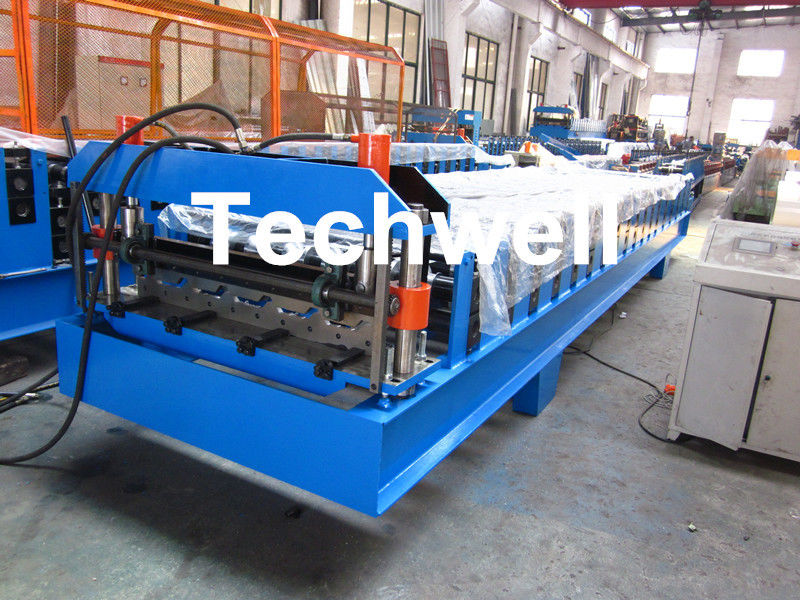

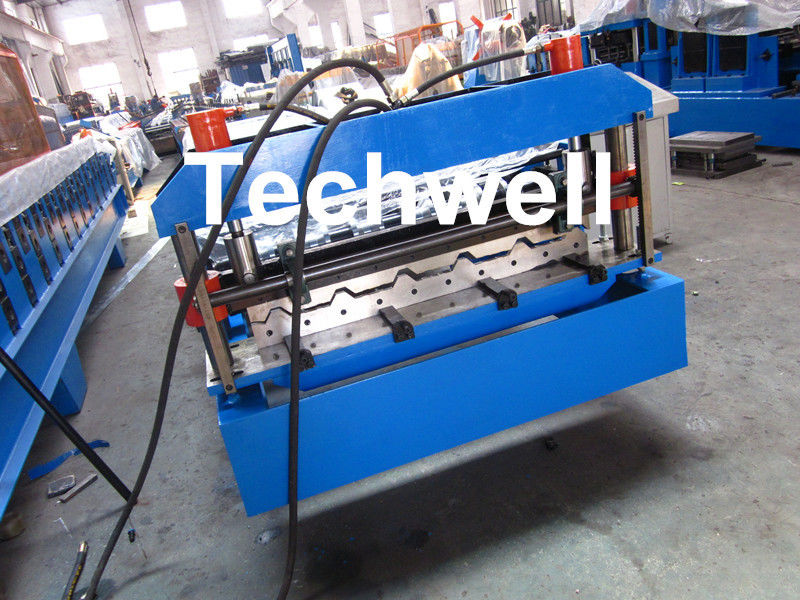

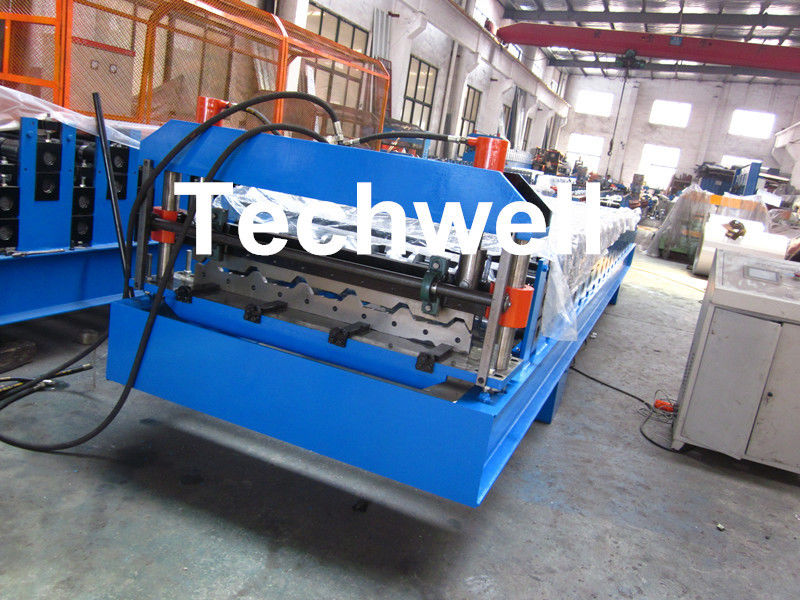

   Roof Wall Cladding Roll Forming Machine Pictures



Steel Metal Wall Cladding Roof Roll Forming Machine With PLC Control System



   Contact Details



Company Wuxi Techwell Machinery Co.,LTD
Website www.cold-rollformingmachine.com
www.roofrollformingmachine.com
www.wxtechwell.com
Mobile 0086-15861597732( Miss Lemon )
E-Mail / Skype sales@wxtechwell.com
Reference video link

https://youtu.be/612A2XVnzIU

https://youtu.be/I7LDqh0DS64

https://youtu.be/8ontpIV81w4

Contact Details
Wuxi Techwell Machinery Co., Ltd

Contact Person: monica

Send your inquiry directly to us (0 / 3000)
