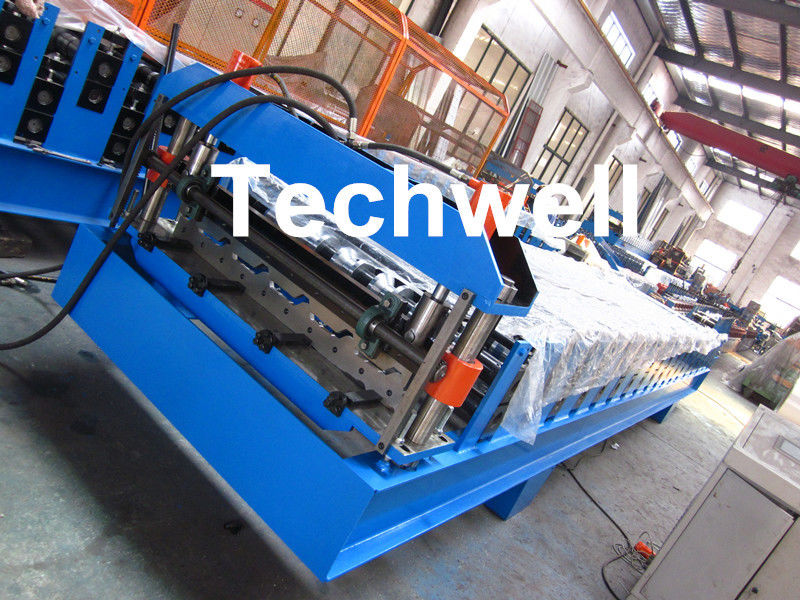

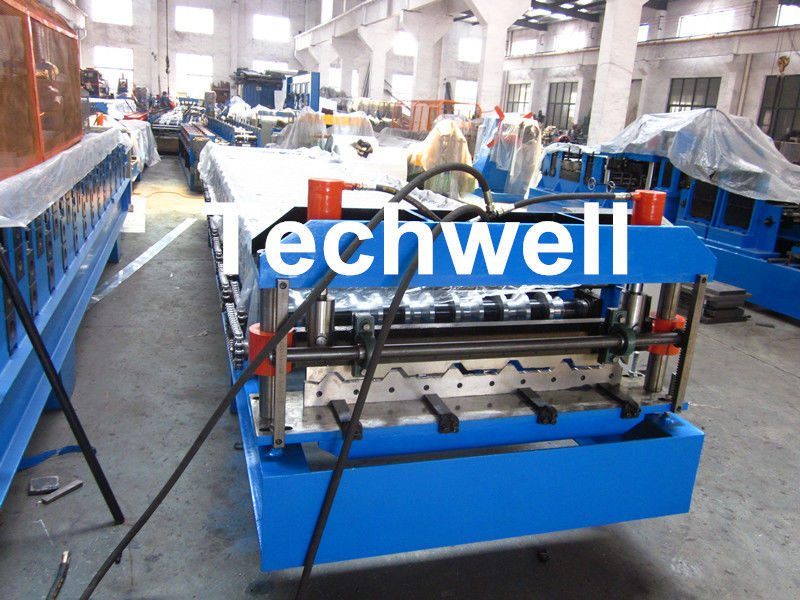

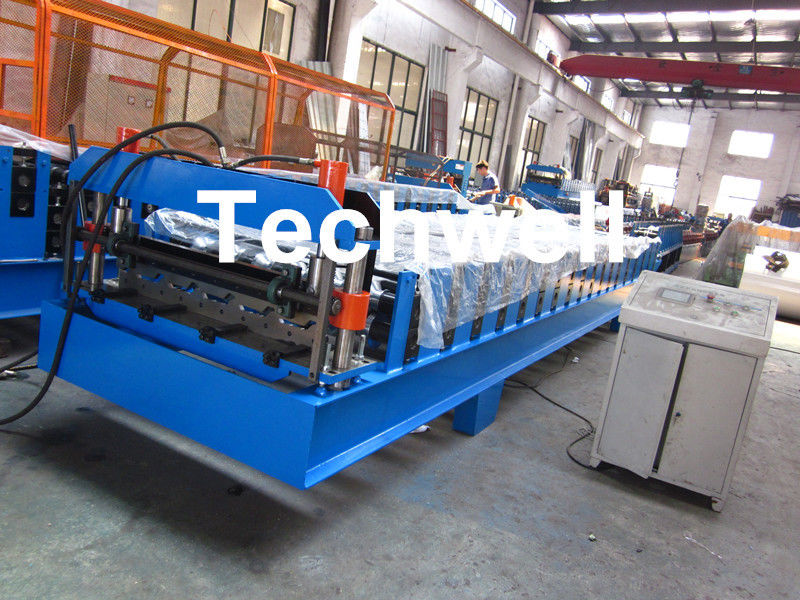

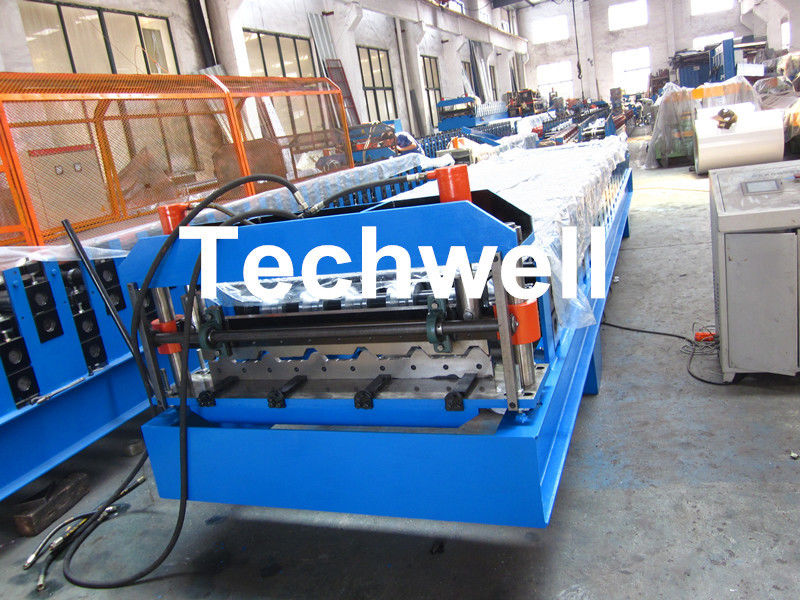

PPGI / GI Roof Roll Forming Machine , Wall Panel Forming Machine Fully Automatic

Large Image : PPGI / GI Roof Roll Forming Machine , Wall Panel Forming Machine Fully Automatic

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE, ISO
Model Number:	TW-RWM

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact us
Packaging Details:	Standard packing
Delivery Time:	55-65 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 sets

Contact Now

Detailed Product Description

Material:	PPGI, Color Steel, GI	Forming Stations:	16-18 Stations (depend On Profiles)
Decoiler Type:	Manual Or Hydraulic Or Auto Type	Shaft Material:	High Grade 45# Steel
Forming Speed:	0-15m/min	Cutting Die Material:	Cr12Mov Steel, HRC58-62
High Light:	Roof Sheet Roll Forming Machine , roof panel roll forming machine

Welded Wall Plate Structure PPGI, GI Roof Roll Forming Machine For Making Roof Wall Cladding, Roof Panel

Maintenance of Roof Roll Forming Machine

Daily maintenance plays an very importance role in extending the operation time and of roof wall sheet roll forming machine and the good quality finished roof wall panel. The following points should be part of the machine's daily production and usage routine.

Regularly lubricated the outside parts of the roof wall roll forming machine, such as the driving chain...
Regularly brush the surface of roller, particularly when working outside. If you do not use the roof panel forming machine in a long time, you should apply luricating oil on the roller surface, make sure you clean it for next time running machine.
If the roof wall sheet roll forming machine is not operated in a long period, should cover it with plastic film, to avoid getting rain or dust on the machine, or avoid the machine becoming dampt, especially the PLC electric control board.
Make sure the cutting system is lubricated when necessary.
Check the Hydraulic station often and the oil quantity of the deceleration machines, add more oil if the oil level is low.
Check the electric appliances box and every leads conjuction circumstance of the roof wall roll forming machine.

Main Specifications

1). 5 Ton Manual Decoiler

1. Decoiler Type: Manual type decoiler
2. Weight Capacity of Decoiler: 5Ton
3. Manual expanding
4. Passive uncoiling
5. I.D: 508mm

2). Main Roll Forming Part

1. Forming material thickness: 0.3-0.7mm
2. Forming material type: PPGI, GI
3. Machine frame: high grade steel welded and tempering treatment
4. Forming structure: Welded wall plate strcuture
5. Forming motor: 7.5KW
6. Shaft material: 45# high grade steel tempering treatment (HB220-260)
7. Shaft diameter: 75mm
8. Roller material: 45# high grade steel, and roller surface with hard chrome ≥ 0.05mm
9. Forming speed: about 0-15m/min (excluding cutting time)
10. Forming station: ≈ 18 stations

3). Hydraulic Cutting & Hydraulic Station

1. Cutting type: Hydraulic cutting after roll forming, Burr-free cutting
2. When cutting, Machine stop
3. Cutting blade: 1 SET
4. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62
5. Hydraulic station power: 4KW
6. Hydraulic pressure: 15Mpa
7. Cutting Tolerance: +/-1.5mm

4). Electrical Control System

1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.
2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.

PPGI / GI Roof Roll Forming Machine , Wall Panel Forming Machine Fully Automatic 1

5). Run out Table

1. Roller type support table
2. to support the profile sheet after cutting

Main Components

Decoiler / Uncoiler ----------------------------------------------------------------1 Unit
Feeding Guide --------------------------------------------------------------------1 Unit
Main Roll Forming Machine -----------------------------------------------------1 Unit
Hydraulic Cutting System --------------------------------------------------------1 Unit
Hydraulic Station -------------------------------------------------------------------1 Unit
PLC Computer Control Box ------------------------------------------------------1 Unit
Support Tables --------------------------------------------------------------------1 Unit

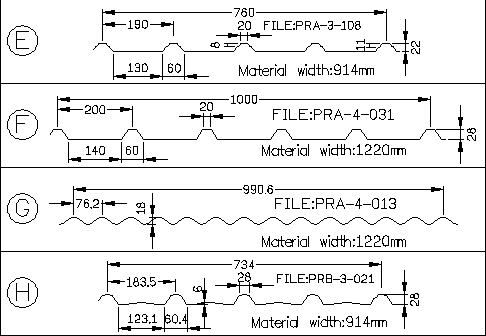

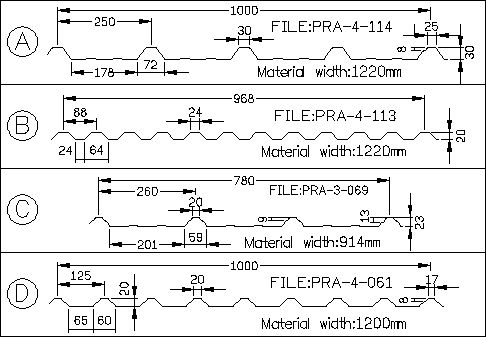

Reference Profile Drawing

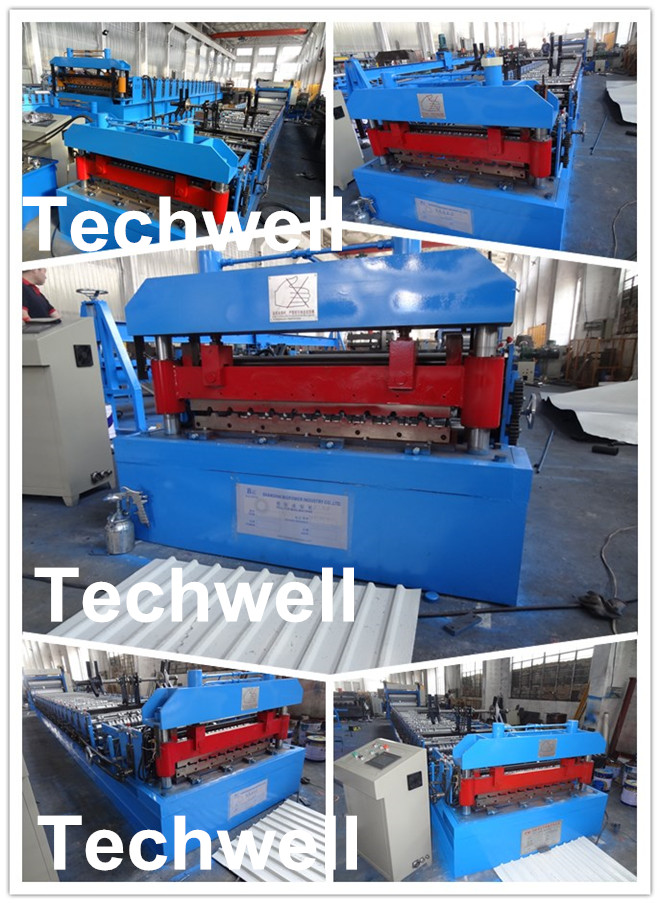

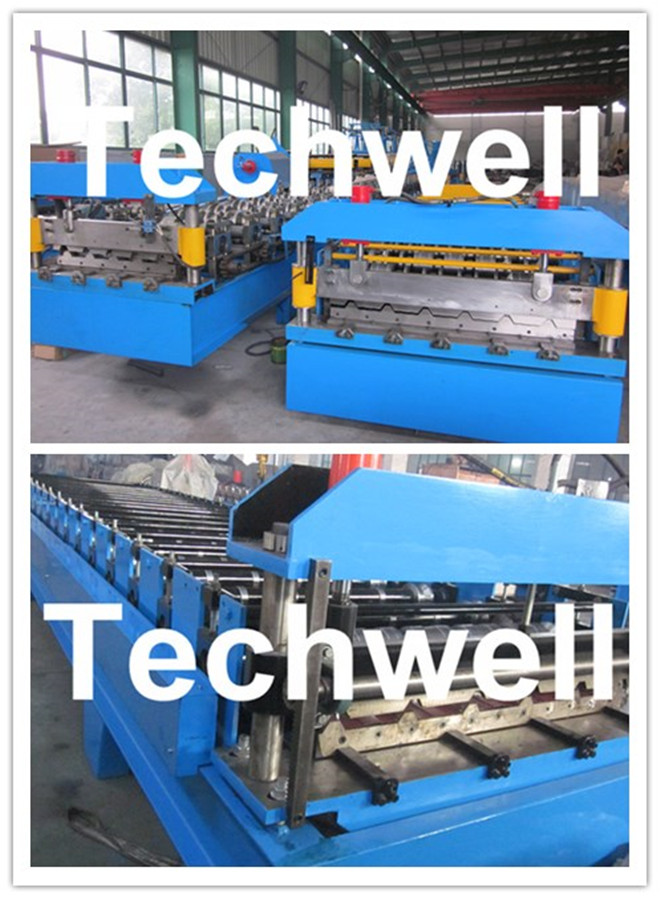

More Machine Pictures

Contact Details

Company	Wuxi Techwell Machinery Co.,LTD
Website	www.cold-rollformingmachine.com
	www.roofrollformingmachine.com
	www.wxtechwell.com
Mobile	0086-15861597732( Miss Lemon )
E-Mail / Skype	sales@wxtechwell.com
Reference video link	https://youtu.be/612A2XVnzIU https://youtu.be/I7LDqh0DS64 https://youtu.be/8ontpIV81w4

Tag:

Contact Person: monica

Tel: +8618018304331

Other Products

Iron Metal Roof Sheet Roll Forming Machine With Manual Or Hydraulic Uncoiler

Thickness: 0.3-0.8mm

Decoiler Coil Width: Max. 1250mm

Forming Stations: 13-18 Stations ( Depend on Profiles )

Roller material: 45# steel

Customized Trapezoidal Profile Roof Roll Forming Machine With Hydraulic Post Cutting Device

Forming material type: PPGI, Color steel, GI

Decoiler type: Manual or Hydraulic or Auto Type

I.D: 508-610mm

Diameter of shaft: 75mm

Aluminium Corrugated Sheet Roof Roll Forming Machine High Speed 10-15m / Min

Thickness Of Coil Sheet: 0.3-0.7mm

Forming Station: 13-20 Stations (Depend On Drawing)

Feature: High Speed, Low Energy Consumption

Roller Material: High grade 45# steel, With Hard Chrome

Wall Cladding Roof Roll Forming Machine , Metal Forming Equipment Yield Strength 250-350Mpa

Usage: Metal Roofing, Steel Roofing Sheets

Material: Color Steel, PPGI

Forming Structure: Welded wall plate structure

Forming Station: about 18-20 stations

Welded Wall Plate Forming Structure Roof Roll Forming Machine 0-15m / Min Forming Speed

Forming Structure: Welded Wall Plate Structure

Forming Material: Color steel, Galvanized steel

Forming Station: About 18-20 Stations

Yield Strength: 250-350Mpa

PPGI / GI Roof Roll Forming Machine , Wall Panel Forming Machine Fully Automatic
