Auto Crimping Cold Roll Forming Machine , Arch Metal Roofing Forming Machine

Auto Crimping Curved Machine, Arch Roof Bending Machine For Making Roofing Panel Sheet

   Description of Cripming Curved Machine

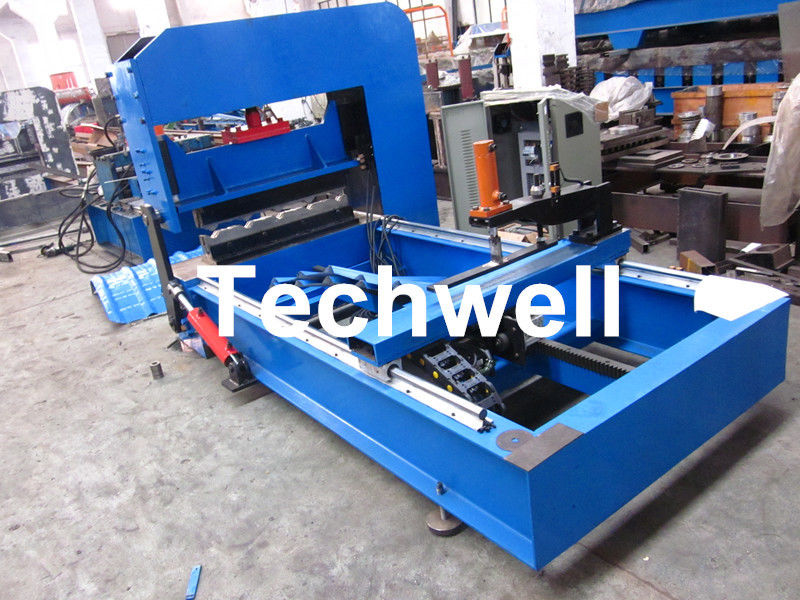

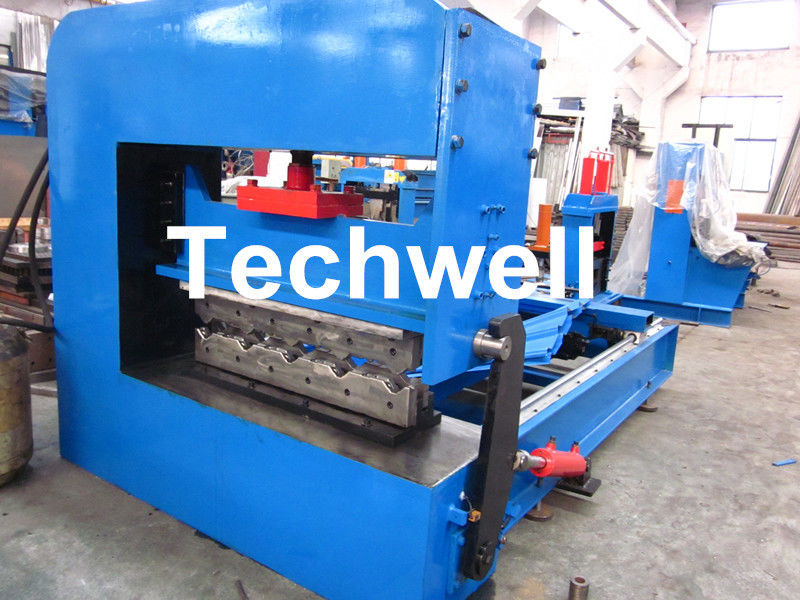

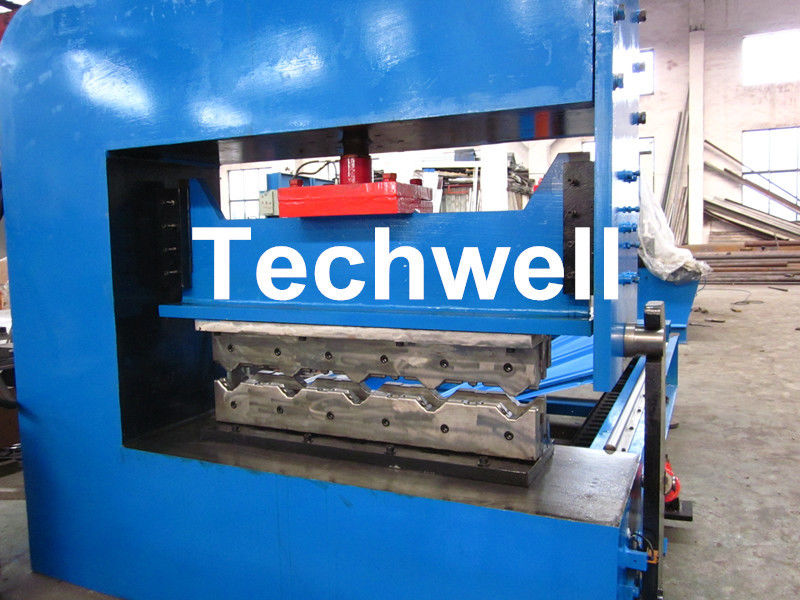

• Hydraulic Arch crimping machine is used to crimp the formed corrugated sheets into horizontal stripes through hydraulic crimping mold. The distance between each press will decide the curvature of the arch. It is suitable for edge of buildings, parking garage, pavilion and various round roofs of buildings.

• We also can do a custom roll forming machine, i.e. We can design the machine according to your specification and profile drawing.

   Main Technical Parameters of Roofing Sheet Crimping Curved Machine

• Raw Material Thickness: 0.3-0.8mm
• Speed of Line: 0-10m/min (Adjustable)
• Material Width: 1000, 1220 or 1250mm(according to customer’s need)
• Electrica Control: Panasonic PLC computer control ( frequency converter)
• Hydraulic Power: 3KW
• Roller Material: 45#forged steel, with surface polished and coated with 0.05mm thickness hard chrome
• Axis of Diameter: 70mm
• Shaft Material: High grade 45# steel

   Reference Finished Products

   Competitive Advantages

   More Machine Pictures

   Pictures of Loading The Container

   Contacts of WUXI TECHWELL
