0-10M / Min Cold Roll Forming Equipment , Roof Sheet Making Machine 500mm Curving Radius

China 0-10M / Min Cold Roll Forming Equipment , Roof Sheet Making Machine 500mm Curving Radius supplier
0-10M / Min Cold Roll Forming Equipment , Roof Sheet Making Machine 500mm Curving Radius supplier 0-10M / Min Cold Roll Forming Equipment , Roof Sheet Making Machine 500mm Curving Radius supplier 0-10M / Min Cold Roll Forming Equipment , Roof Sheet Making Machine 500mm Curving Radius supplier 0-10M / Min Cold Roll Forming Equipment , Roof Sheet Making Machine 500mm Curving Radius supplier

Large Image :  0-10M / Min Cold Roll Forming Equipment , Roof Sheet Making Machine 500mm Curving Radius

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-CCM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Material Thickness: 0.3-0.8mm Control: PLC Computer Control (Frequency Convercy)
Material Width: 1000, 1220 Or 1250mm(according To Customer’s Need) Pressing Die: Cr12 Mould Steel With Quenched Treatment
Motor Power: 2.2KW Roller Material: High Grade 45# Forged Steel

0-10m/min Forming Speed Crimped Curving Machine / Roof Curving Machine With 500mm Curving Radius





   Main Technical Specifications of Roof Bending Machine



  • Raw material thickness: 0.3-0.8mm
  • Raw material width and length: according to customer's request
  • Working Speed: 10000-12000mm/min ( adjustable)
  • Total Motor Power: 2.2 Kw
  • Roller material: High grade 45# forged steel, surface polished and coated with 0.05mm thickness hard chrome
  • Shaft material: high grade 45# Steel with Diameter 75mm
  • Cutting Blade: Cr12 mould steel with quenched treatment
  • Control: PLC computer control ( frenquency convercy )
  • Curving radius: 500mm

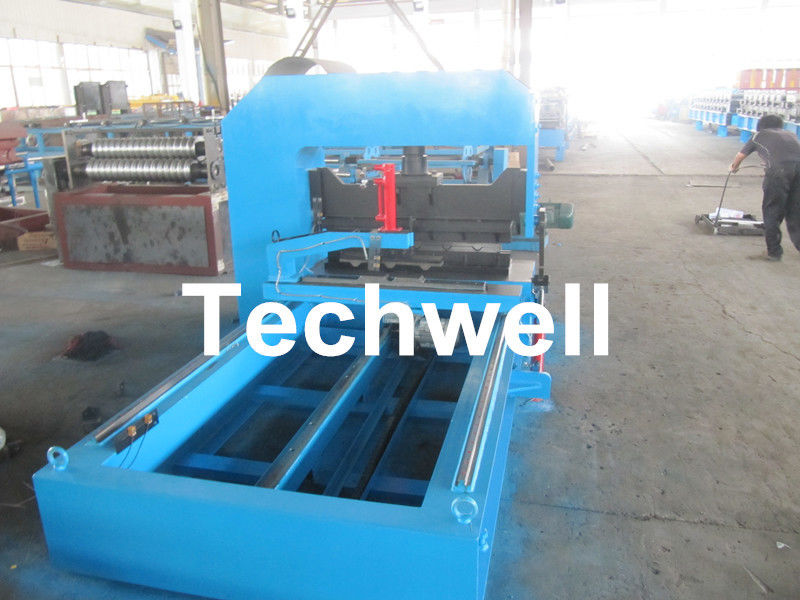

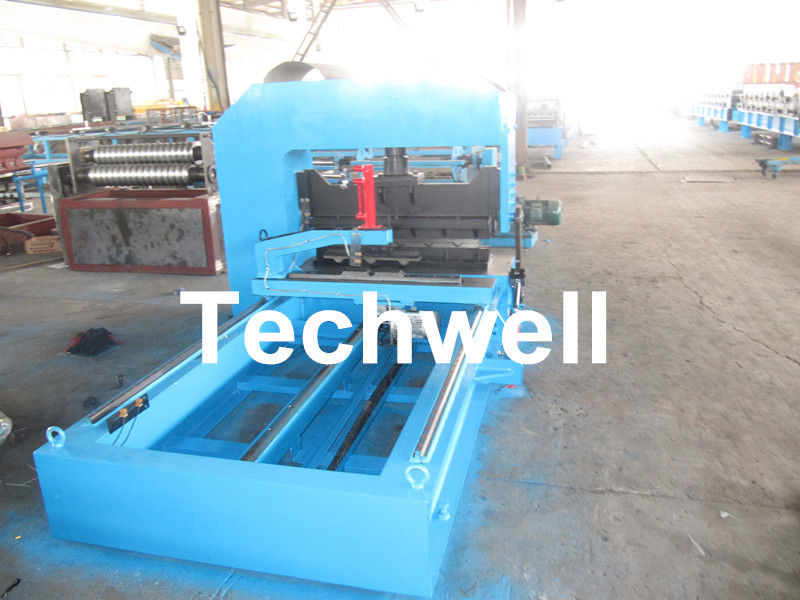

   Description of Crimped Curving Machine



  • Hydraulic Arch crimping machine is used to crimp the formed corrugated sheets into horizontal stripes through hydraulic crimping mold. The distance between each press will decide the curvature of the arch. It is suitable for edge of buildings, parking garage, pavilion and various round roofs of buildings.
  • We also can do a custom roll forming machine, i.e. We can design the machine according to your specification and profile drawing.



   Working Process



Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→ Output





   Applications



To curve roof wall panel, roof sheet, roof panel, to mak bull nose...





   Output Tables Reference Pictures



0-10M / Min Cold Roll Forming Equipment , Roof Sheet Making Machine 500mm Curving Radius

0-10M / Min Cold Roll Forming Equipment , Roof Sheet Making Machine 500mm Curving Radius

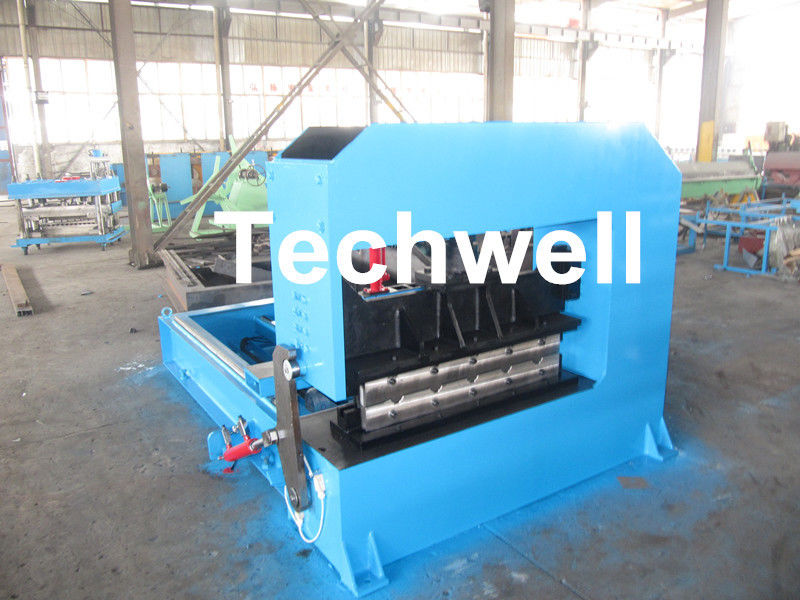

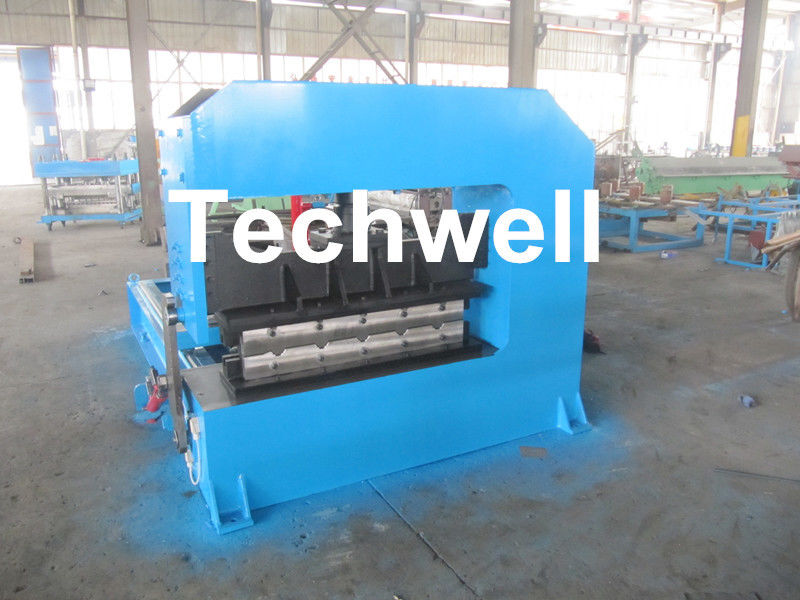

   More Macine Pictures



0-10M / Min Cold Roll Forming Equipment , Roof Sheet Making Machine 500mm Curving Radius





   Pictures of the Loading Container



0-10M / Min Cold Roll Forming Equipment , Roof Sheet Making Machine 500mm Curving Radius
