Custom Made Sliding Shutter Door Guide Rail Roll Forming Line With Chain Drive

China Custom Made Sliding Shutter Door Guide Rail Roll Forming Line With Chain Drive supplier
Custom Made Sliding Shutter Door Guide Rail Roll Forming Line With Chain Drive supplier Custom Made Sliding Shutter Door Guide Rail Roll Forming Line With Chain Drive supplier Custom Made Sliding Shutter Door Guide Rail Roll Forming Line With Chain Drive supplier Custom Made Sliding Shutter Door Guide Rail Roll Forming Line With Chain Drive supplier

Large Image :  Custom Made Sliding Shutter Door Guide Rail Roll Forming Line With Chain Drive

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-GDA008

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Coil Thickness: 1.5-3.0mm Cutting Type: Hydraulic Cutting
Material: PPGI, GI. Or Carbon Steel Drive Type: Chain Drive
Forming Stations: About 16 Stations (Depend On Final Profile) Working Speed: 0-15m/min

Sliding Guide Rail Roll Forming Machine For Rolling Shutter Door Slats, Door Guide Rail Roll Forming Line



   Introduction of Guide Rail Roll Former



The shutter door guide rail roll former includes decoiler, feeding device, punching device, main roll forming machine, hydralic cutting, PLC control system and run-out table.



The line speed is about 0-15m/min



   Working Flow Chart



Decoiler---Leveling---Servo Feeding---Punching---Roll Forming---Hydraulic Post-Cutting---Run-out Table



Custom Made Sliding Shutter Door Guide Rail Roll Forming Line With Chain Drive



   Main Specifications of Guide Rail Roll Former



Item Guide Rail Roll Forming Machine
Coil Material Thickness 1.0-3.0mm
Coil Width Custom-made
Yield Strength 250-350Mpoa
Material PPGI, Color Steel, GI.
Decoiler / Uncoiler Decoiler Type Manual or Hydraulic or Auto Type
Coil Width Max. 1250mm
I.D 508-610mm
O.D Max. 1500mm
Punching Device Punching Type Hydraulic punching
Punching Mold Size According to drawing
Hydraulic Power 5.5KW
Guide Rail Roll Forming Machine Forming Stations About 16 stations (Depend on profiles)
Roller Material GCr15 steel, surface coated with 0.05mm hard chrome
Diameter of Shaft 80mm
Shaft Material High grade 45# steel
Drive Type Chain drive
Forming Speed 0-15m/min
Main Power 18KW
Cutting Device Cutting Type Hydraulic cutting
Cutting Die Material Cr12Mov
Cutting Tolerance +/-1.5mm
Electrical Control Box PLC PANASONIC Brand
Inverter YASKAWA Brand
Touch Screen PANASONIC
Operation Type Touch screen & Button
Support Table Table Type Simple non-power type
Function To support the finished panels



Reference Profile Drawing



Custom Made Sliding Shutter Door Guide Rail Roll Forming Line With Chain Drive



Applications



Elevator guide rail, door frame guide rail, curtain track, shutter door slats guide

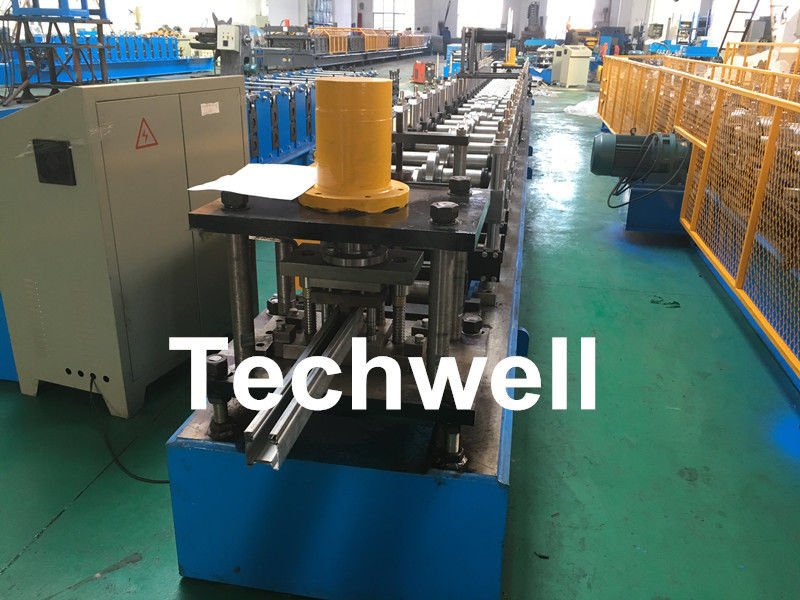

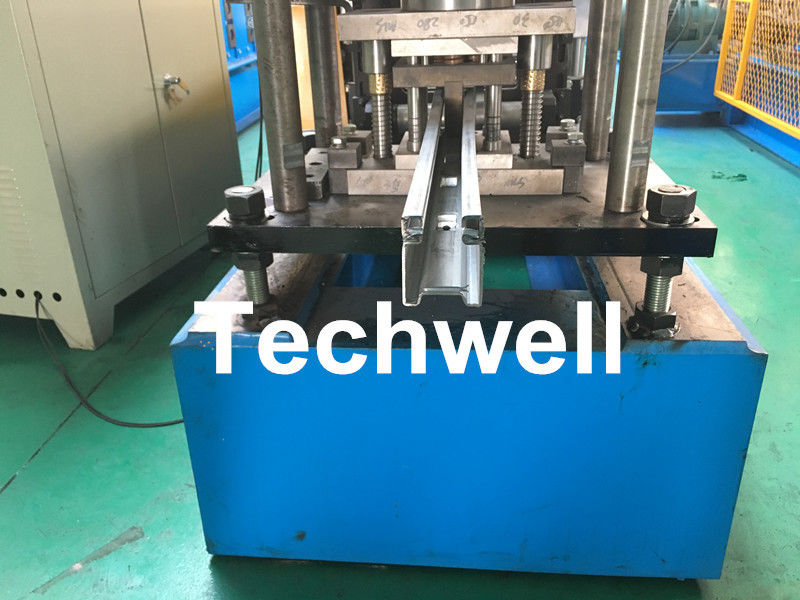

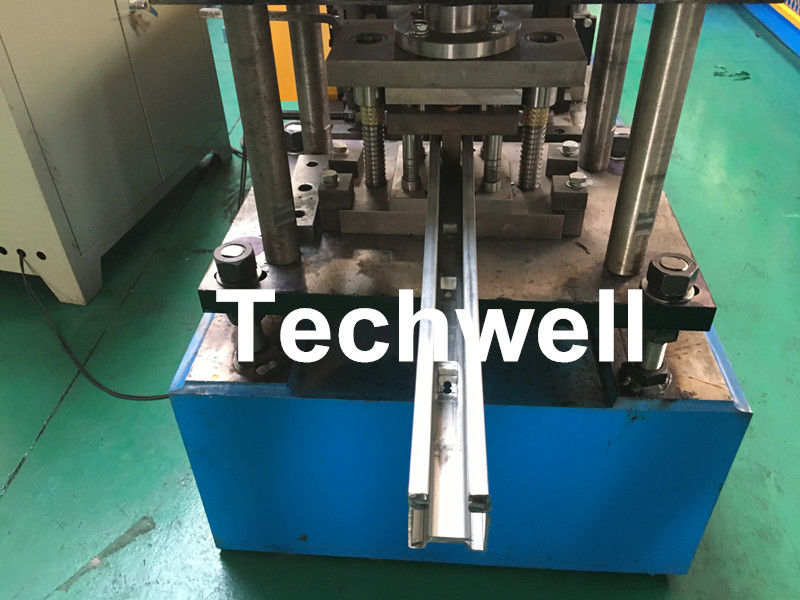

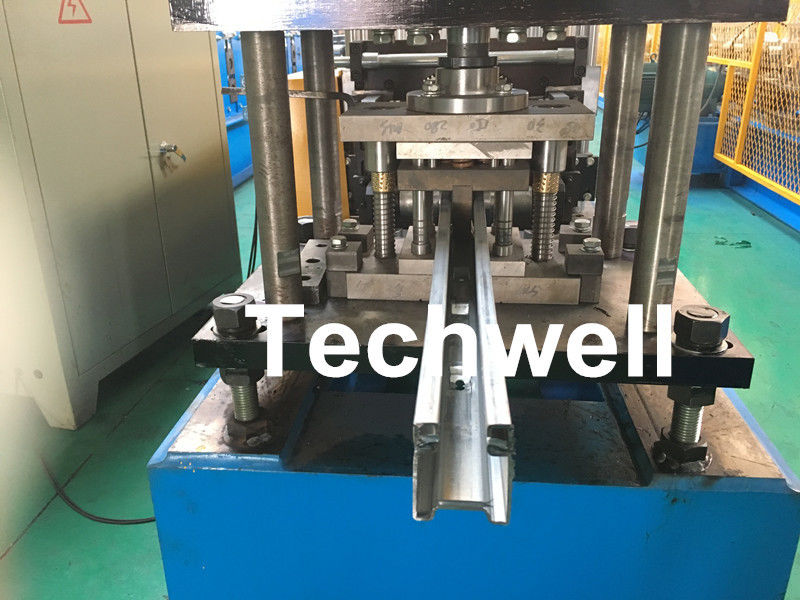

More Machine Pictures



Custom Made Sliding Shutter Door Guide Rail Roll Forming Line With Chain Drive
