Carbon Steel Top Hat Channel Cold Roll Forming Machine With 1.5 Inch Chain

China Carbon Steel Top Hat Channel Cold Roll Forming Machine With 1.5 Inch Chain supplier
Carbon Steel Top Hat Channel Cold Roll Forming Machine With 1.5 Inch Chain supplier Carbon Steel Top Hat Channel Cold Roll Forming Machine With 1.5 Inch Chain supplier Carbon Steel Top Hat Channel Cold Roll Forming Machine With 1.5 Inch Chain supplier Carbon Steel Top Hat Channel Cold Roll Forming Machine With 1.5 Inch Chain supplier

Large Image :  Carbon Steel Top Hat Channel Cold Roll Forming Machine With 1.5 Inch Chain

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-HCM100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Material: G.I. Steel, Carbon Steel Yield Strength: 250-350Mpa
Feeding Rollers: 4 Rollers Leveling Roller: 7 Rollers ( Upper 3 Rollers, Bottom 4 Rollers )
Punching Type: Hydraulic Punching Roller Material: GCr15 Steel, HRC58-62

GI. Carbon Steel Top Hat Channel Roll Forming Machine With 1.5 Inch Chain of Transmission



   Main Specifications of Top Hat Purlin Roll Forming Machine



Coil Material Thickness 1.5-3.0mm
Coil width Custom-made
Yield Strength 250-350Mpa
Material GI. Carbon Steel
Decoiler / Uncoiler Coil Width Max. 600mm
I.D 508-610mm
O.D Max. 1500mm
Pinch Feeding & Leveling Feeding roller 4 Rollers
Leveling roller 7 Rollers ( upper 3 rollers, bottom 4 rollers )
Punching Punching type Hydraulic Punching
Punching die Cr12Mov, quenched, HRC58-62
Roll Forming Machine Forming stations 15 Stations ( Depend on Profiles )
Roller material GCr15 steel, HRC58-62
Diameter of shaft 85mm
Shaft material High grade 45# steel
Drive type Chain transmission
Forming speed 0-15m/min
Main power 15KW
Cutting Cutting type Hydraulic cutting
Cutting blade Cr12Mov, quenched
Cutting Tolerance 10m+/-1.5mm
Encoder OMRON Brand
Electrical control PLC PANASONIC Brand or Custom-made
Inverter YASKAWA Brand or Custom-made
Touch screen MCGS Brand or Custom-made
Operation type Touch screen & Button
Hydraulic Station Hydraulic station Famous Chinese brand
Hydraulic Power 7.5KW
Runout Table Table type Simple nonpower type
Function To support the finished panels



   Introduction of Top Hat Roll Former



Top hat channel machine in which the adjustable pedestal system is introduced can be used to produce different height top hat purlin.
Adapting the PLC, touch screen, and frequency converter system, it applies convenient operation, stable speed control and precise production



   Main Components



  • Decoiler / Uncoiler ----------------------------------------------------- 1 Unit
  • Pinch Feeding & Leveling -------------------------------------------- 1 Unit
  • Punching ----------------------------------------------------------------- 1 Unit
  • Main Roll Forming Machine ------------------------------------------ 1 Unit
  • Cutting To Length ------------------------------------------------------ 1 Unit
  • Hydraulic Station ------------------------------------------------------- 1 Unit
  • PLC Computer Control Board --------------------------------------- 1 Unit
  • Runout Table ------------------------------------------------------------ 1 Unit



   Working Flow Chart



Decoiler ---> Fedding & Leveling ---> Punching ---> Roll Forming ---> Cut-to-length ---> Run out table



   Hat Channel Profile Drawing



Carbon Steel Top Hat Channel Cold Roll Forming Machine With 1.5 Inch Chain

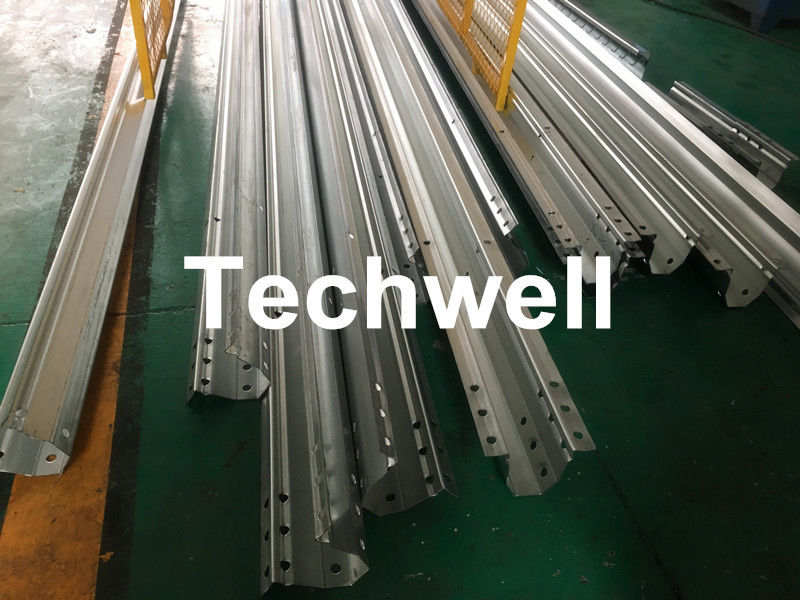

   Applications



Top Hat Channel, Furring Channel, Hat Channel, Ridge Channel, Top Furring Channel...

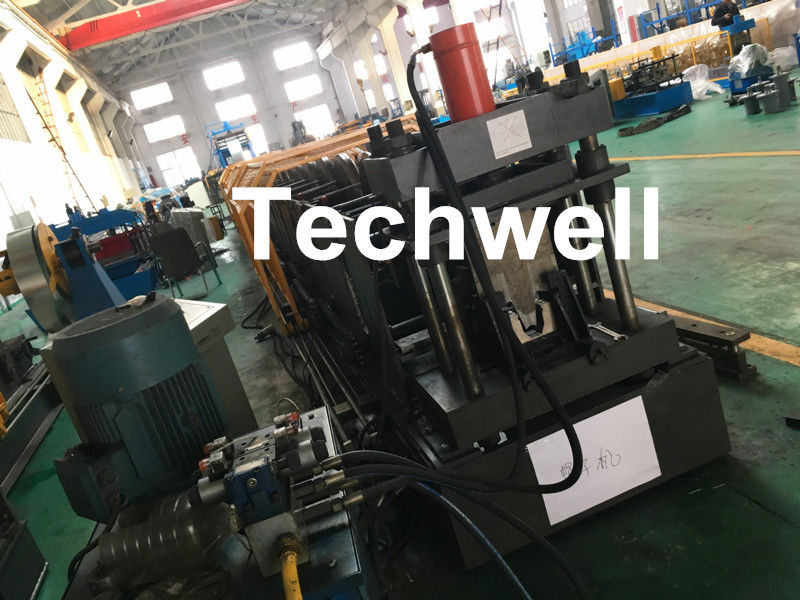

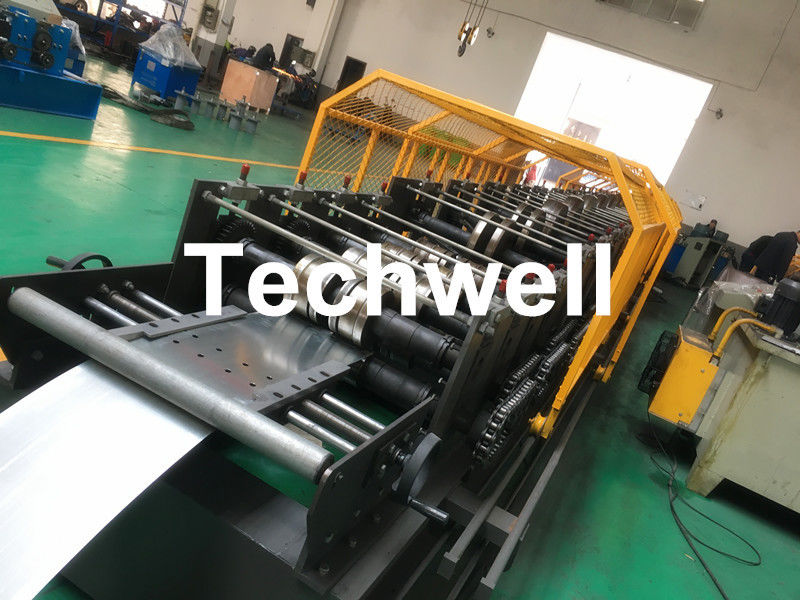

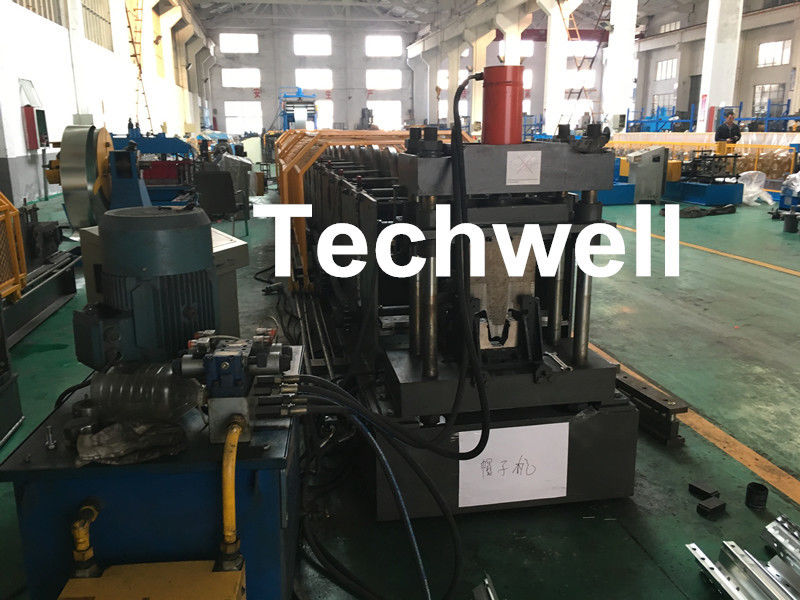

   More Machine Pictures



Carbon Steel Top Hat Channel Cold Roll Forming Machine With 1.5 Inch Chain
