Top Purlin GI Carbon Steel Cold Roll Forming Machine 0-15m/Min 15KW

China Top Purlin GI Carbon Steel Cold Roll Forming Machine 0-15m/Min 15KW supplier
Top Purlin GI Carbon Steel Cold Roll Forming Machine 0-15m/Min 15KW supplier Top Purlin GI Carbon Steel Cold Roll Forming Machine 0-15m/Min 15KW supplier Top Purlin GI Carbon Steel Cold Roll Forming Machine 0-15m/Min 15KW supplier Top Purlin GI Carbon Steel Cold Roll Forming Machine 0-15m/Min 15KW supplier

Large Image :  Top Purlin GI Carbon Steel Cold Roll Forming Machine 0-15m/Min 15KW

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-HCM100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Decoiler Type: Manual Decoiler Or Hydraulic Decoiler Principle Axis: 80mm Diameter
Main Power: 15KW Forming Station: 14-18 Steps
Drive Type: 1.5' Chain Transmission Roller Material: GCr15 Steel, Quenched And Heated Process

1.5-3.0mm Material Thickness Top Purlin Forming Machine For Making Top Hat Channel, Furring Channel



   Main Specifications



  1. Material: GI, Carbon steel
  2. Material thickness: 1.5-3.0mm
  3. Main power: 15KW
  4. Feeding Rollers: 4 Rollers
  5. Leveling rollers: 7 rollers (upper 3 rollers, bottom 4 rollers)
  6. Machine diameter: about 11500x1500x1300mm ( LXWXH )
  7. Weight of machine: about 10 Ton
  8. Main Technical Specification:
  9. Decoiler: Manual or hydraulic decoiler ( customer can choose )
  10. Weight capacity of decoiler: 5 Ton
  11. Punching type: Hydraulic punching
  12. Forming station: 16 stations
  13. Principle axis: 80mm diameter
  14. Forming speed: 0-15m/min
  15. Drive type: 1.5' chain transmission
  16. Roller material: GCr15 steel, quenched and heated process
  17. Main power: 15KW
  18. Hydraulic power: 7.5KW
  19. Electrical Control: PLC Frequency Control System with touch screen
  20. PLC: PANASONIC Brand
  21. Encoder: OMRON Brand
  22. Transducer: PANASONIC Brand

   Main Components



Decoiler / Uncoiler 1 Unit
Pinch Feeding & Leveling 1 Unit
Punching 1 Unit
Main Roll Forming Machine 1 Unit
Cutting To Length 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Board 1 Unit
Runout Table 2 Units



   Working Flow Chart



Manual Decoiler ---- Feeding guide & Leveling Device ---- Punching------Roll Forming ---- Cutting ------



Run out table

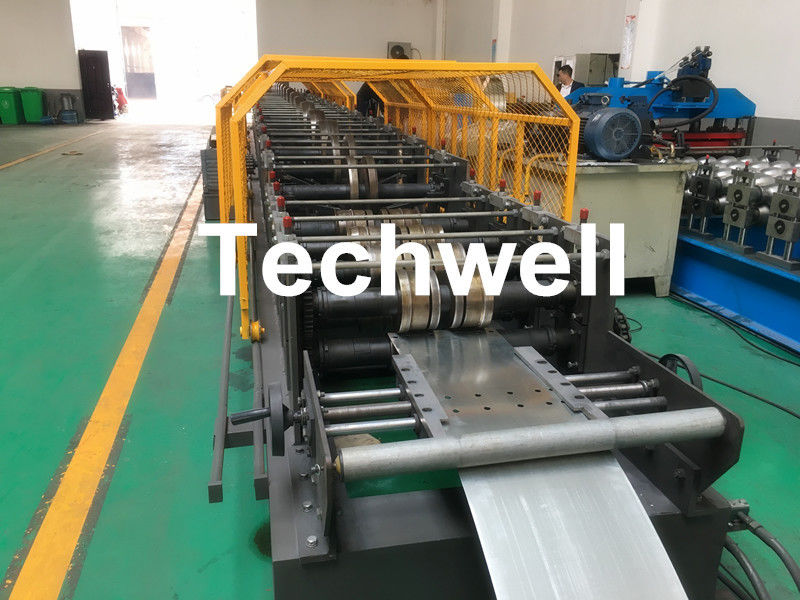

Top Purlin GI Carbon Steel Cold Roll Forming Machine 0-15m/Min 15KW





   Reference Profile Drawing



Top Purlin GI Carbon Steel Cold Roll Forming Machine 0-15m/Min 15KW
Top Purlin GI Carbon Steel Cold Roll Forming Machine 0-15m/Min 15KW



   Applications



Top Hat Channel, Furring Channel, Hat Channel, Ridge Channel, Top Furring Channel...



   Competitive Advantages



1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements

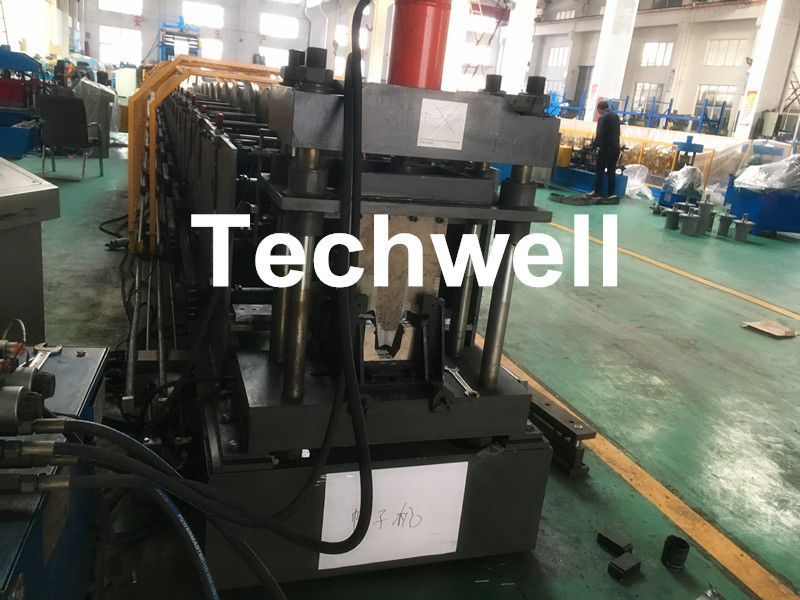

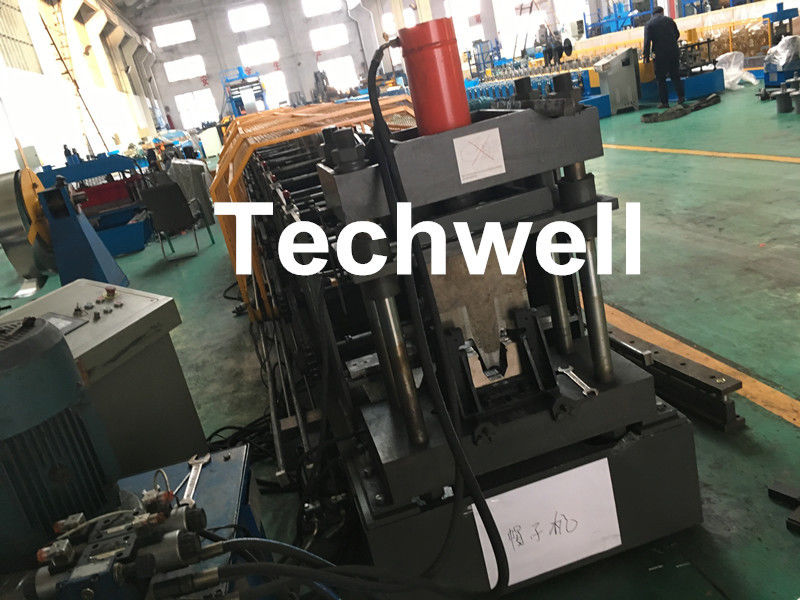

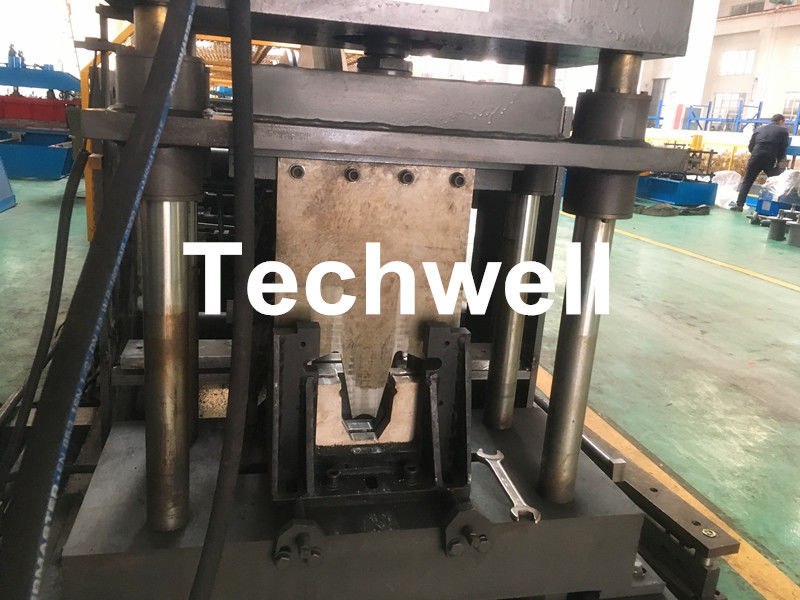

   More Machine Pictures



Top Purlin GI Carbon Steel Cold Roll Forming Machine 0-15m/Min 15KW
