Guiding Column Steel Structure Cold Roll Forming Machine For Making Corrugated Sheet Panel With 0.3-0.7mm Thickness

Large Image : Guiding Column Steel Structure Cold Roll Forming Machine For Making Corrugated Sheet Panel With 0.3-0.7mm Thickness

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE, ISO
Model Number:	TW-RWM

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard packing
Delivery Time:	55-65 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 Sets

Contact Now

Detailed Product Description

Material Thickness:	0.3-0.7mm	Forming Speed:	0-15m/min
Forming Stations:	16 Stations (Depend On Profile)	Forming Structure:	Guiding Column Steel Structure
Roller Material:	45# Steel, Surface Coated With 0.05mm Hard Chrome	Shaft Material:	High Grade 45# Steel
High Light:	Roll Former Machine , Roll Forming Equipment

Guiding Column Steel Structure Cold Roll Forming Machine For Making Corrugated Sheet Panel With 0.3-0.7mm Thickness

Main Specifications

No.	Item		Parameter	Remark
1	Suitable Material	Type	PPGI
		Width	1250mm
		Thickness	0.3-1.0mm
		Yield Strength	345Mpa
2	Forming Station		13-20 Stations	Depend on Profile Drawing
3	Forming Speed		≈ 0-20m/min Excluding Cutting
4	Roller Material		High grade 45# steel	With Hard Chrome
5	Drive Type		Chain Drive
6	Shaft Diameter		Φ75mm	Solid Shaft
7	Bearing		Hab Bearing
8	Cutting Model		Hydraulic Cutting	Stop to cutting
9	Power Source	Type	380V/3PH/50HZ	Customized
		Main Power	≈ 7.5KW	Depend on profile
		Hydraulic Power	≈ 3.0KW	Cutting power
10	Electric Control System		PLC -PANASONIC	Operation: Screen + Button
			Inverter -YASKAWA
			Touch Screen- MCGS
			Encoder- OMRON
11	Motor		Changzhou Huiyuan	Chinese Brand
12	Hydraulic Station		Wuxi Wansheng	Chinese Brand
13	Hydraulic Valve		HuaDei	Chinese Brand
14	Machine Dimension			(LXWLH)

Main Components

Decoiler / Uncoiler-----------------------------------------------------------------------------1 Unit
Feeding Guide---------------------------------------------------------------------------------1 Unit
Main Corrugated Sheet Making Machine-------------------------------------------------1 Unit
Hydraulic Cutting Device---------------------------------------------------------------------1 Unit
Hydraulic Station-------------------------------------------------------------------------------1 Unit
PLC Computer Control Board---------------------------------------------------------------1 Unit
Support Tables---------------------------------------------------------------------------------1 Unit

Working Flowing

Decoiler --- Fedding Guide --- Roll Forming --- Cut-to-length --- Run out table

Applications

Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet;

metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding

Competitive Advantages

Copra designing software
5-8 technicians every month specially do international installation and debugging
High Quality
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

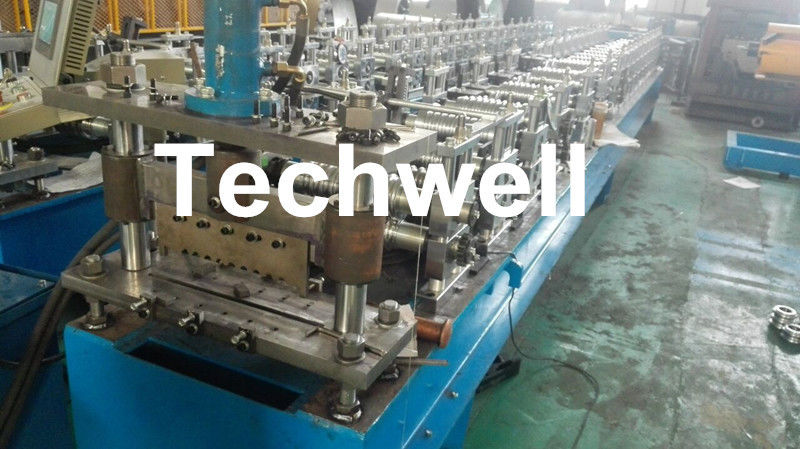

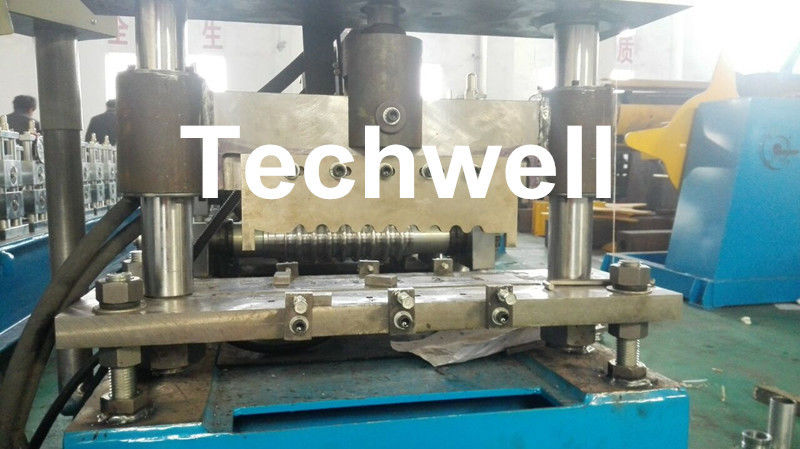

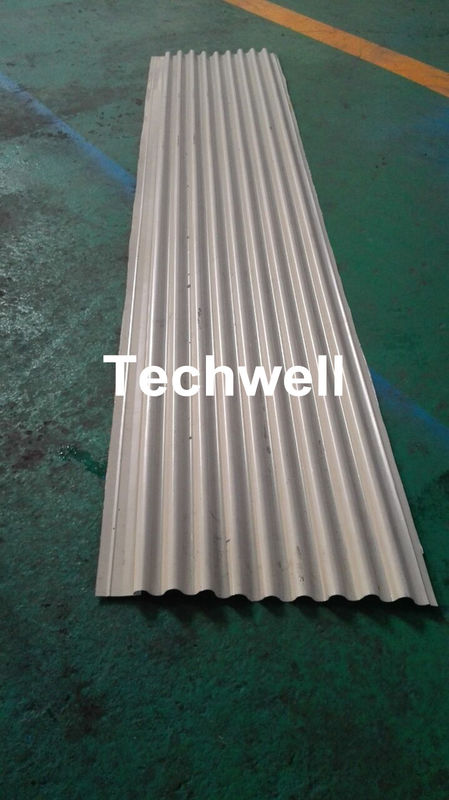

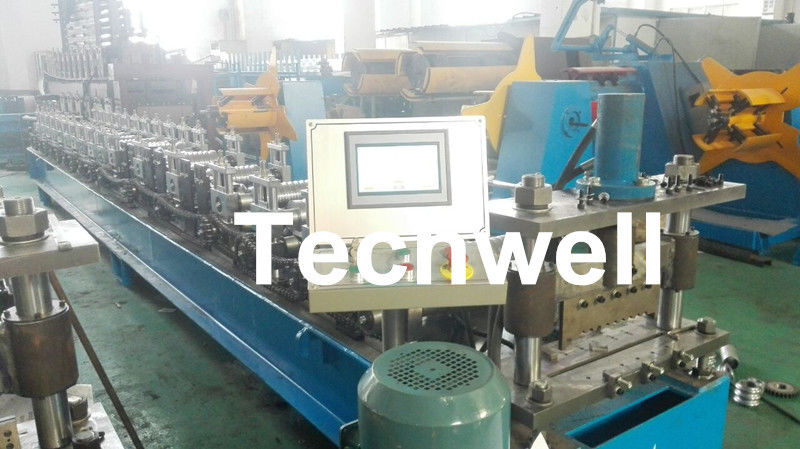

Workshop Machine Pictures

Guiding Column Steel Structure Cold Roll Forming Machine For Making Corrugated Sheet Panel With 0.3-0.7mm Thickness 0

Competitive Advantages

Company	Wuxi Techwell Machinery Co.,Ltd
Website	www.wxtechwell.com www.cold-rollformingmachine.com
E-mail / Skype	sales@wxtechwell.com
Mob / Whatsapp	+86-15861597732
