0-15m/min Forming Speed Cold Roll Forming Machine For Making Top Hat Channel , Furring Channel

China 0-15m/min Forming Speed Cold Roll Forming Machine For Making Top Hat Channel , Furring Channel supplier
0-15m/min Forming Speed Cold Roll Forming Machine For Making Top Hat Channel , Furring Channel supplier 0-15m/min Forming Speed Cold Roll Forming Machine For Making Top Hat Channel , Furring Channel supplier 0-15m/min Forming Speed Cold Roll Forming Machine For Making Top Hat Channel , Furring Channel supplier 0-15m/min Forming Speed Cold Roll Forming Machine For Making Top Hat Channel , Furring Channel supplier

Large Image :  0-15m/min Forming Speed Cold Roll Forming Machine For Making Top Hat Channel , Furring Channel

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-HCM100

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Coil Thickness: 1.5-3.0mm Material Spec.: GI, Carbon Steel
Forming Speed: 0-15m/min Forming Stations: About 18 Stations
Roller Material: GCr15 Steel, HRC58-62 Shaft Material: High Grade 45# Steel

0-15m/min Forming Speed Cold Roll Forming Machine For Making Top Hat Channel, Furring Channel



   Description of Hat Channel





 1. Metal steel hat channel have become a competitive and widely used product in the building industry giving a fire proof and easily erected system for partitioning and various other uses. The component parts of the system are ideal rollform applications.



 2. There are many kinds of profiles of the steel hat channel as the different market has the different requirements, we design and produce the forming machine according to clients’ drawings or samples normally.





   Main Technical Specifications



  1. Material: GI, Carbon steel
  2. Material thickness: 1.5-3.0mm
  3. Main power: 15KW
  4. Machine diameter: about 11500x1500x1300mm ( LXWXH )
  5. Weight of machine: about 10 Ton
  6. Main Technical Specification:
  7. Decoiler: Manual or hydraulic decoiler ( customer can choose )
  8. Weight capacity of decoiler: 5 Ton
  9. Forming station: 18
  10. Principle axis: 75mm diameter
  11. Forming speed: 0-15m/min
  12. Drive type: 1.5' chain transmission
  13. Roller material: GCr15 steel, quenched and heated process
  14. Main power: 15KW
  15. Hydraulic power: 7.5KW
  16. Electrical Control: PLC Frequency Control System with touch screen
  17. PLC: PANASONIC Brand
  18. Encoder: OMRON Brand
  19. Transducer: PANASONIC Brand



   Main Components



  1. Decoiler ----------------------------------------------- 1 Unit
  2. Feeding & Leveling -------------------------------- 1 Unit
  3. Main roll forming machine ------------------------ 1 Unit
  4. Hydraulic cutting device --------------------------- 1 Unit
  5. Hydraulic Station ------------------------------------ 1 Unit
  6. PLC computer control ------------------------------ 1 Unit
  7. Output table ------------------------------------------- 1 Unit



   Working Flow Chart



Manual Decoiler ---- Feeding guide & Leveling Device ---- Punching------Roll Forming ---- Cutting ------



Run out table



   Reference Profile Drawing



0-15m/min Forming Speed Cold Roll Forming Machine For Making Top Hat Channel , Furring Channel
0-15m/min Forming Speed Cold Roll Forming Machine For Making Top Hat Channel , Furring Channel





   Applications



Top Hat Channel, Furring Channel, Hat Channel, Ridge Channel, Top Furring Channel...



   Competitive Advantages



1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements



   Machine Pictures



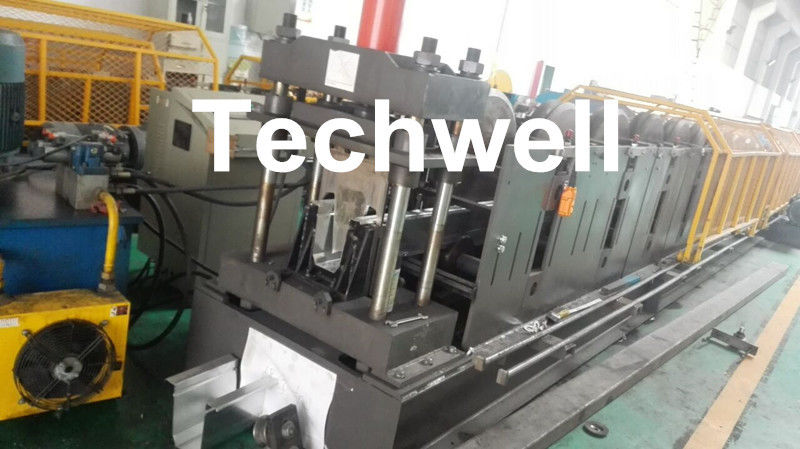

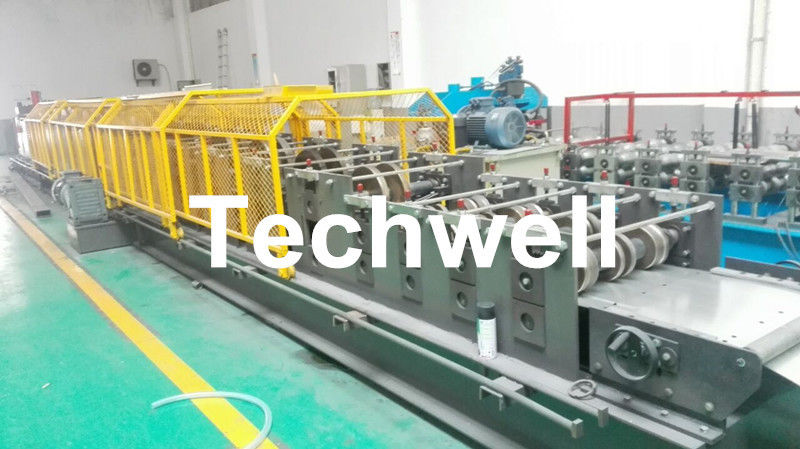

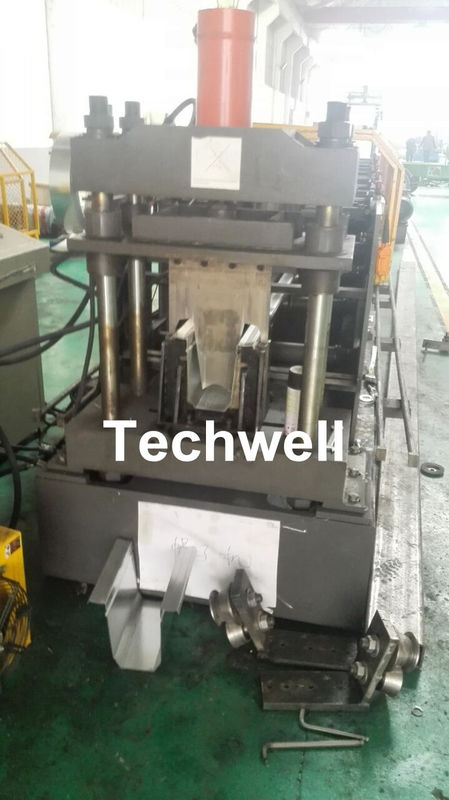

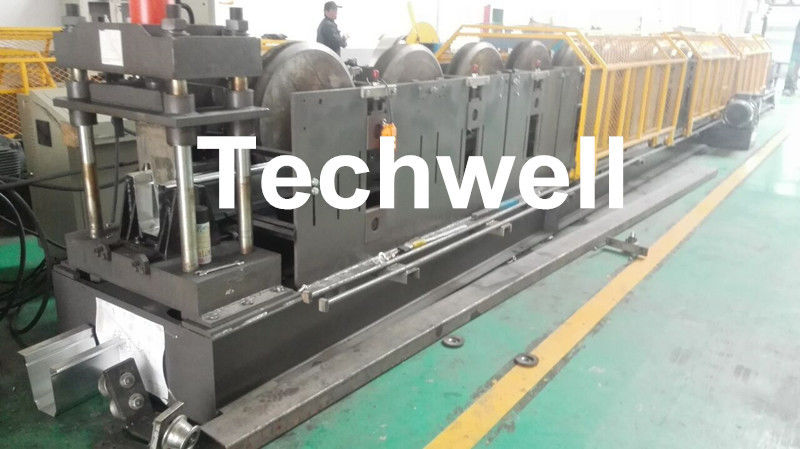

0-15m/min Forming Speed Cold Roll Forming Machine For Making Top Hat Channel , Furring Channel





   Contact of Details



Company Wuxi Techwell Machinery Co.,Ltd
Website

www.wxtechwell.com

www.cold-rollformingmachine.com

Email / Skype sales@wxtechwell.com
Mob / Whatsapp +86-15861597732 (Miss Lemon)
Reference video link

https://youtu.be/YKpZmvc_huc

https://youtu.be/DIURQP7E698





Contact Details
Wuxi Techwell Machinery Co., Ltd

Contact Person: monica

Send your inquiry directly to us (0 / 3000)
