Chain Of Transmission Hat Channel Roll Forming Machine / Furring Channel Roll Forming Machine With 18 Forming Stations



   Main Technical Specifications of Top Hat Purlin Roll Former



1. Coil Material

  • Thickness of sheet: 1.5-3.0mm
  • Coil width: Customer-made
  • Yield strength: 250-350Mpa
  • Material: GI, Carbon steel



2. Decoiler / Uncoiler

  • Coil width: Max.600mm
  • I.D: 508-610MM
  • O.D: Max.1500mm



3. Pinch feeding & leveling

  • Feeding rollers: 4 rollers
  • Leveling roller: 7 Rollers ( upper 3 rollers, bottom 4 rollers )



4. Punching

  • Punching type: Hydraulic punching
  • Punching die: Cr12Mov, quenched, HRC58-62



5. Top hat channel forming machine

  • Forming stations: 14 stations (Depend on profiles)
  • Roller material: GCr15 steel, HRC58-62
  • Diameter of shaft: 80mm
  • Shaft material: High grade 45# steel
  • Drive type: Chain transmission
  • Forming speed: 0-15m/min
  • Main power: 15KW



6. Cutting device

  • Cutting type: Hydraulic cutting
  • Cutting blade: Cr12Mov, quenched
  • Cutting tolerance: 10m+/-1.5mm
  • Encoder: OMRON Brand



7. Electrical control

  • PLC: PANASONIC Brand or Custom-made
  • Inverter: YASKAWA Brand or Custom-made
  • Touch screen: MCGS Brand or Custom-made
  • Operation type: Touch screen & Button



8. Hydraulic station

  • Hydraulic station: Famous Chinese brand
  • Hydraulic power: 7.5KW



   Main Components



Decoiler / Uncoiler 1 Unit
Pinch Feeding & Leveling 1 Unit
Punching 1 Unit
Main Roll Forming Machine 1 Unit
Cutting To Length 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Board 1 Unit
Runout Table 2 Units



   Reference Profile Drawing



Chain Of Transmission Hat Channel Roll Forming Machine / Furring Channel Roll Forming Machine With 18 Forming Stations





   Applications



Top Hat Channel, Furring Channel, Hat Channel, Ridge Channel, Top Furring Channel...



   Competitive Advantages



1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements

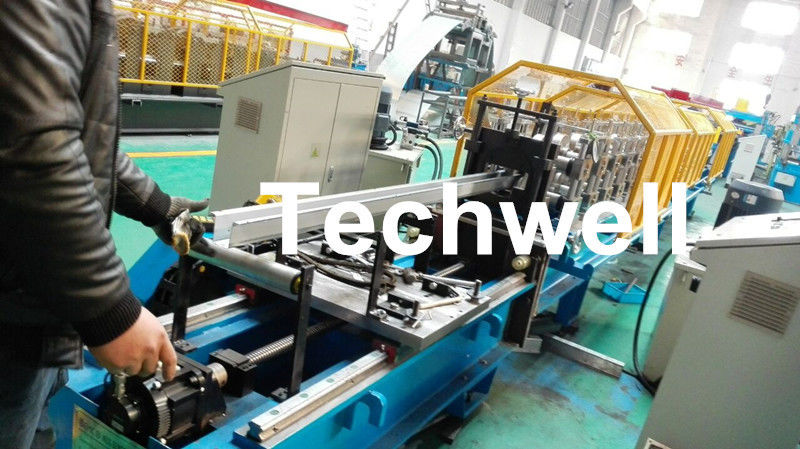

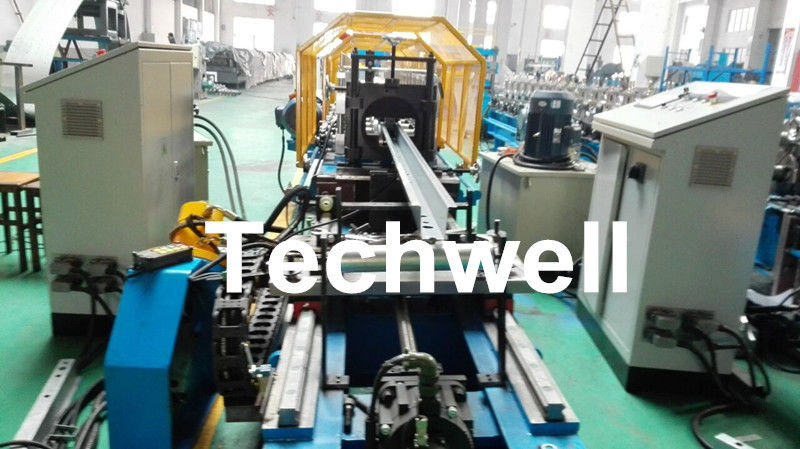

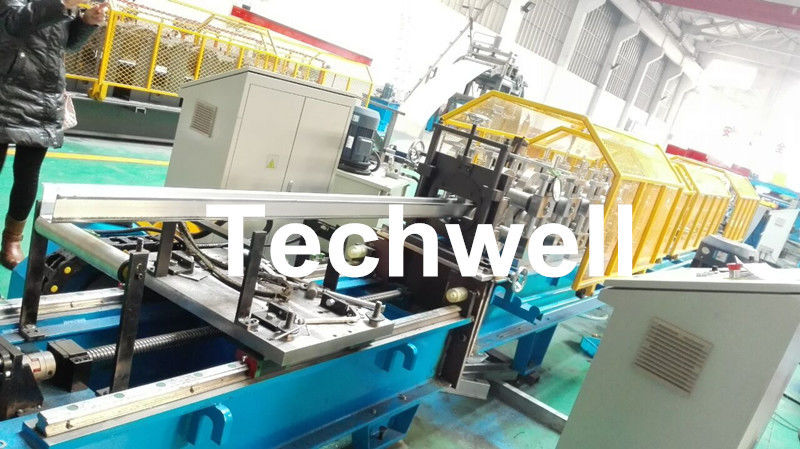

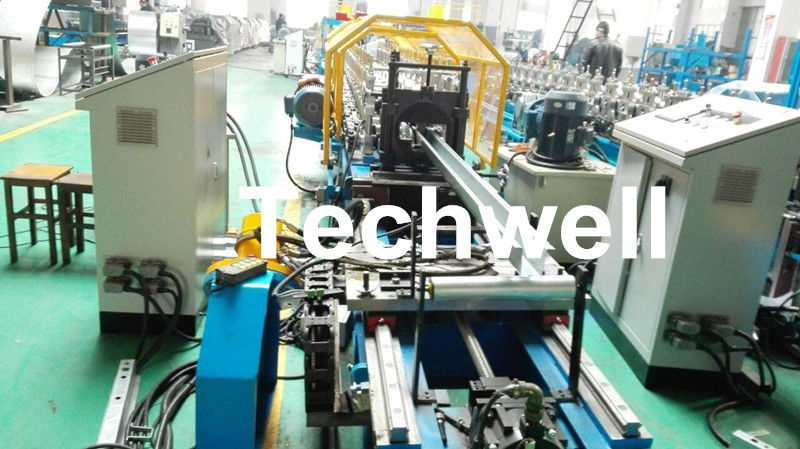

   More Machine Pictures
