Roofing Wall Panel Cold Roll Forming Machine For Forming Thickness 0.3-0.8mm , 18 Stations Roller Stands

Roofing Wall Panel Cold Roll Forming Machine For Forming Thickness 0.3-0.8mm , 18 Stations Roller Stands
Roofing Wall Panel Cold Roll Forming Machine For Forming Thickness 0.3-0.8mm , 18 Stations Roller Stands Roofing Wall Panel Cold Roll Forming Machine For Forming Thickness 0.3-0.8mm , 18 Stations Roller Stands Roofing Wall Panel Cold Roll Forming Machine For Forming Thickness 0.3-0.8mm , 18 Stations Roller Stands Roofing Wall Panel Cold Roll Forming Machine For Forming Thickness 0.3-0.8mm , 18 Stations Roller Stands

Large Image :  Roofing Wall Panel Cold Roll Forming Machine For Forming Thickness 0.3-0.8mm , 18 Stations Roller Stands

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-RWM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard Packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Forming Material: Color Steel Coil, PPGI Coil Thickness: 0.3-0.7mm
Decoiler Type: Manual Or Hydraulic Or Auto Type Forming Stations: About 18 Stations
Diameter Of Shaft: 75mm Shaft Material: High Gradr 45# Steel
High Light:

Roof Sheet Roll Forming Machine

,

roof panel roll forming machine

Roofing Wall Panel Cold Roll Forming Machine For Forming Thickness 0.3-0.8mm, 18 Stations Roller Stands

   Product Description


  • Roofing sheet roll forming machines are extensively used in building steel-structure large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, hotels, villas, residences and different kinds of greenhouses.
  • The Wall Panel Roll Forming Machine can rollform metal roofing wall sheet. After roll formed by this wall panel sheet roll forming machine, the surface of iron roof wall panel is very smooth and beautiful without any scratch on the surface of profile sheets.
  • The Roof Wall Panel Sheet Roll Forming Machine is with fully automatic control system with PLC.
  • Length, quantity of sheets is adjustable.
  • Rollforming process: Decoiler, Rollforming, Cut to length.
  • We also can do a custom roll forming machine, we can design machines according to your specifications and profile drawings, all our machines are customized.


   Main Technical Specifications


Raw MaterialColor steel, PPGI
Material Thickness0.3-0.8mm
Material Widthdepend on customer’s requirement
Decoiler Typemanual or automatical type ( depend on customer’s requirement )
Main Motor Power5.5KW
Hydraulic Motor Power3.0KW
Forming Stations13-20stations ( depend on profile drawing )
Material of RollerHigh grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
Main Axis MaterialHigh grade 45#, quenched and heat treatment.
Axis Diameter¢ 75mm
Working Speed0-15 m/min
Type of CuttingHydraulic cutting
Transporting TypeChain Transmission



   Main Components

Decoiler ---------------------------------------------------------------------------- 1 Unit
Feeding guide --------------------------------------------------------------------- 1 Unit
Main roll forming machine ------------------------------------------------------ 1 Unit
Hydraulic cutting device --------------------------------------------------------- 1 Unit
Hydraulic Station ------------------------------------------------------------------ 1 Unit
PLC computer control ----------------------------------------------------------- 1 Unit
Output table ------------------------------------------------------------------------ 1 Unit

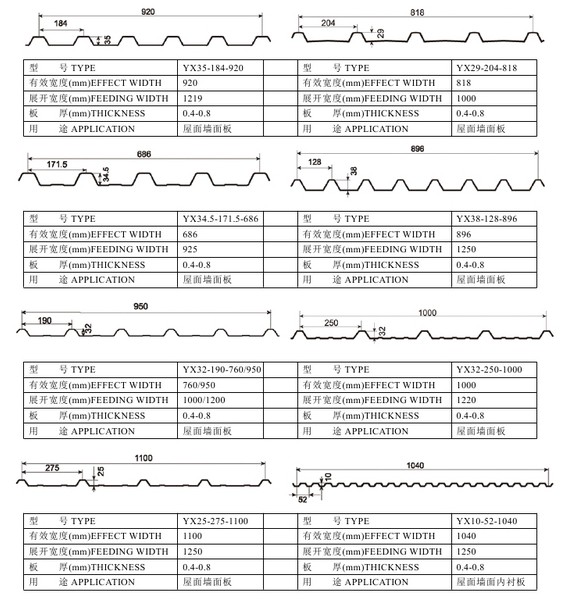

   Reference Profile Drawing

Roofing Wall Panel Cold Roll Forming Machine For Forming Thickness 0.3-0.8mm , 18 Stations Roller Stands 0

   Applications

Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding

   Competitive Advantages



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience


   More Machine Pictures

Roofing Wall Panel Cold Roll Forming Machine For Forming Thickness 0.3-0.8mm , 18 Stations Roller Stands 1
