0-15m/min Forming Speed High Precision Color Steel Roof Panel Roll Forming Machine With Chain Driving

China 0-15m/min Forming Speed High Precision Color Steel Roof Panel Roll Forming Machine With Chain Driving supplier
0-15m/min Forming Speed High Precision Color Steel Roof Panel Roll Forming Machine With Chain Driving supplier 0-15m/min Forming Speed High Precision Color Steel Roof Panel Roll Forming Machine With Chain Driving supplier 0-15m/min Forming Speed High Precision Color Steel Roof Panel Roll Forming Machine With Chain Driving supplier 0-15m/min Forming Speed High Precision Color Steel Roof Panel Roll Forming Machine With Chain Driving supplier

Large Image :  0-15m/min Forming Speed High Precision Color Steel Roof Panel Roll Forming Machine With Chain Driving

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-RWM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Export Package
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Coil Width: Custom-made, 1000mm Or 1250mm Yield Strength: 250-350Mpa
Forming Stations: About 18 Stations (Depend On Profiles) Drive Type: Chain Of Transmission
Cutting Type: Hydraulic Cutting Main Power: 5.5KW

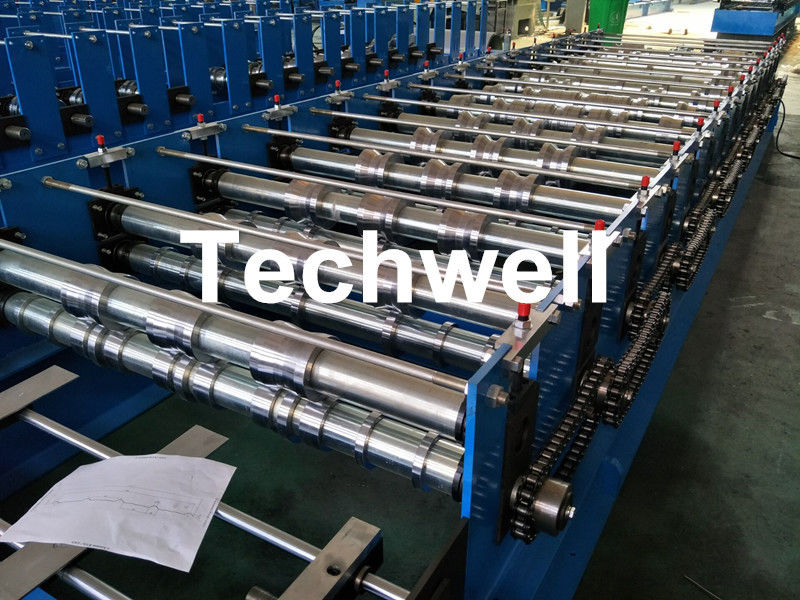

0-15m/min Forming Speed High Precision Color Steel Roof Panel Roll Forming Machine With Chain Driving



   Maintenance of Roof Wall Panel Roll Former





 1. Regularly lubricated the outside parts of the roofing sheet roll forming machine, such as the driving chain...



 2. Regularly brush the surface of roller, particularly when working outside. If you do not use the roof panel forming machine in a long time, you should apply luricating oil on the roller surface, make sure you clean it for next time running machine.



 3. If the roof sheet roll forming machine is not operated in a long period, should cover it with plastic film, to avoid getting rain or dust on the machine, or avoid the machine becoming dampt, especially the PLC electric control board.



 4. Make sure the cutting system is lubricated when necessary.



 5. Check the Hydraulic station often and the oil quantity of the deceleration machines, add more oil if the oil level is low.



 6. Check the electric appliances box and every leads conjuction circumstance of the roof sheet roll forming machine.





   Working Flowing



Decoiler --- Fedding Guide --- Roll Forming --- Cut-to-length --- Run out table

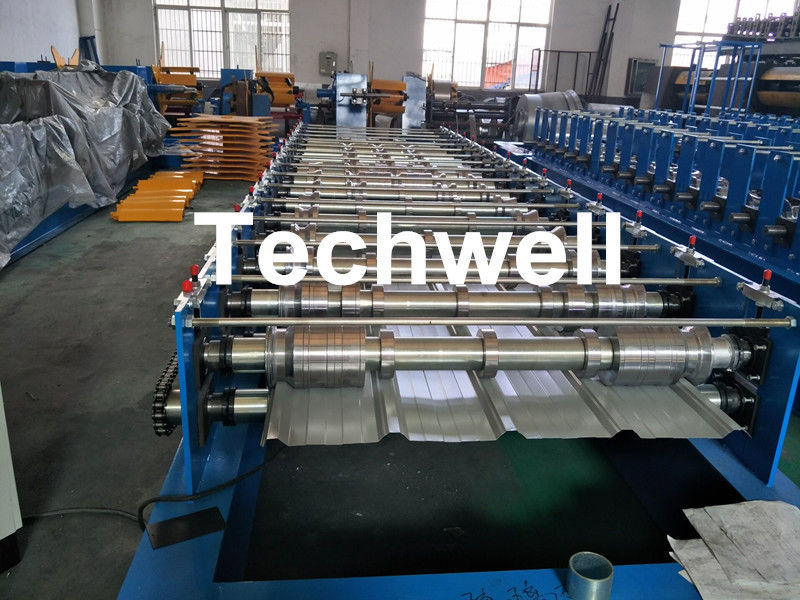

0-15m/min Forming Speed High Precision Color Steel Roof Panel Roll Forming Machine With Chain Driving





   Main Technical Parameters



  • Coil Material: PPGI, Color steel, GI, forming thickness: 0.3-0.8mm
  • Decoiler type: Manual or hydraulic type
  • I.D: 508-610mm
  • O.D: Max. 1500mm
  • Forming stations: 16-18 stations (Depend on proifles)
  • Roller material: 45# steel, surface coated with 0.05mm hard chrome
  • Diameter of shaft: 76mm
  • Shaft material: High grade 45# steel
  • Drive type: Chain transmission
  • Forming speed: 0-15m/min
  • Main power: 5.5KW
  • Cutting type: Hydraulic cutting
  • Cutting die material: Cr12Mov steel, HRC58-62
  • Cutting power: 3.0KW
  • Cutting tolerance: +/-1.5mm
  • PLC: PANASONIC Brand



   Reference Profile Drawing



0-15m/min Forming Speed High Precision Color Steel Roof Panel Roll Forming Machine With Chain Driving





   Applications



Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding

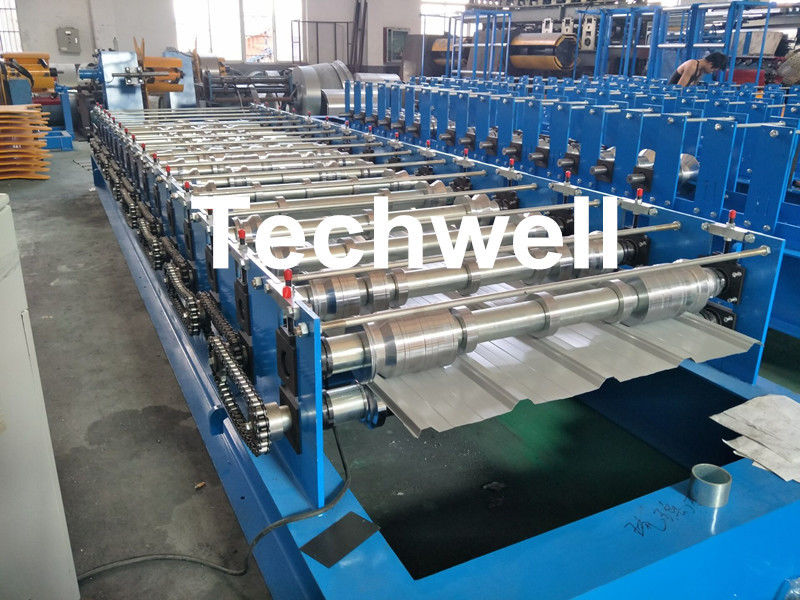

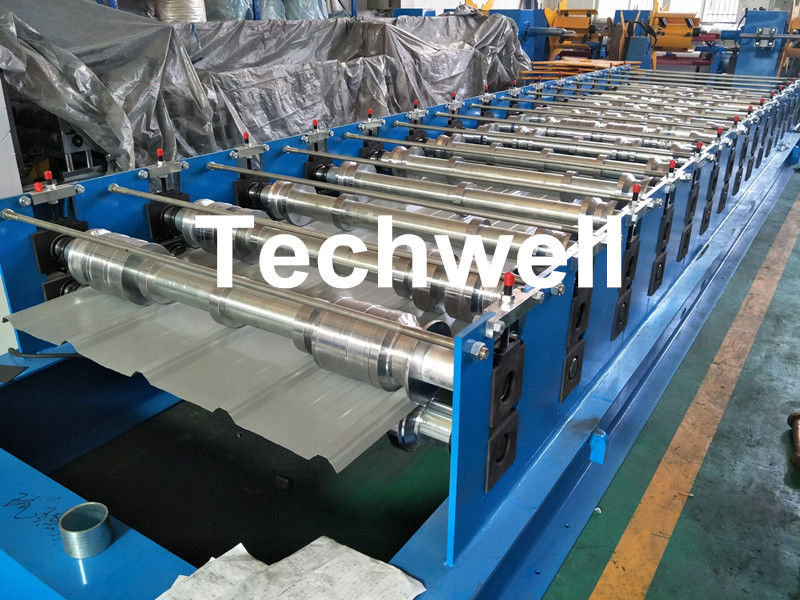

   More Machine Pictures



0-15m/min Forming Speed High Precision Color Steel Roof Panel Roll Forming Machine With Chain Driving
