Custom Made Color Steel Roof Wall Roll Forming Machine With PPGI , GI Forming Material

China Custom Made Color Steel Roof Wall Roll Forming Machine With PPGI , GI Forming Material supplier
Custom Made Color Steel Roof Wall Roll Forming Machine With PPGI , GI Forming Material supplier Custom Made Color Steel Roof Wall Roll Forming Machine With PPGI , GI Forming Material supplier Custom Made Color Steel Roof Wall Roll Forming Machine With PPGI , GI Forming Material supplier Custom Made Color Steel Roof Wall Roll Forming Machine With PPGI , GI Forming Material supplier

Large Image :  Custom Made Color Steel Roof Wall Roll Forming Machine With PPGI , GI Forming Material

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-RWM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Export Package
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Drive Type: Chain Of Transmission Coil Width: Custom-made, 1000mm Or 1250mm
Forming Stations: About 18 Stations (Depend On Profiles) Diameter Of Shaft: 75mm
Forming Speed: 0-20m/min Shaft Material: High Gradr 45# Steel

Custom-Made Color Steel Roof Wall Roll Forming Machine With PPGI, GI Forming Material



   Technical Specifications





 1). 5 Ton Manual Decoiler



  1. Decoiler Type: Manual type decoiler

  2. Weight Capacity of Decoiler: 5Ton

  3. Manual expanding

  4. Passive uncoiling

  5. I.D: 508mm



 2). Main Roll Forming Part



  1. Forming material thickness: 0.3-0.7mm

  2. Forming material type: PPGI, GI

  3. Machine frame: high grade steel welded and tempering treatment

  4. Forming structure: Welded wall plate strcuture

  5. Forming motor: 7.5KW

  6. Shaft material: 45# high grade steel tempering treatment (HB220-260)

  7. Shaft diameter: 75mm

  8. Roller material: 45# high grade steel, and roller surface with hard chrome 0.05mm

  9. Forming speed: about 0-15m/min (excluding cutting time)

  10. Forming station: ≈ 18 stations



 3). Hydraulic Cutting & Hydraulic Station



  1. Cutting type: Hydraulic cutting after roll forming, Burr-free cutting

  2. When cutting, Machine stop

  3. Cutting blade: 1 SET

  4. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62

  5. Hydraulic station power: 4KW

  6. Hydraulic pressure: 15Mpa

  7. Cutting Tolerance: +/-1.5mm



 4). Electrical Control System



  1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.

  2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.



 5). Run out Table



  1. Roller type support table

  2. to support the profile sheet after cutting





   Main Components



  • Decoiler / Uncoiler ----------------------------------------------------------------1 Unit
  • Feeding Guide --------------------------------------------------------------------1 Unit
  • Main Roll Forming Machine -----------------------------------------------------1 Unit
  • Hydraulic Cutting System --------------------------------------------------------1 Unit
  • Hydraulic Station -------------------------------------------------------------------1 Unit
  • PLC Computer Control Box ------------------------------------------------------1 Unit
  • Support Tables --------------------------------------------------------------------1 Unit



   Working Flowing



Decoiler -------- Pinch Feeding ------ Main Roll Forming Machine ------- Hydraulic Cutting ------ Support



Table



Custom Made Color Steel Roof Wall Roll Forming Machine With PPGI , GI Forming Material





   Reference Profile Drawing



Custom Made Color Steel Roof Wall Roll Forming Machine With PPGI , GI Forming Material

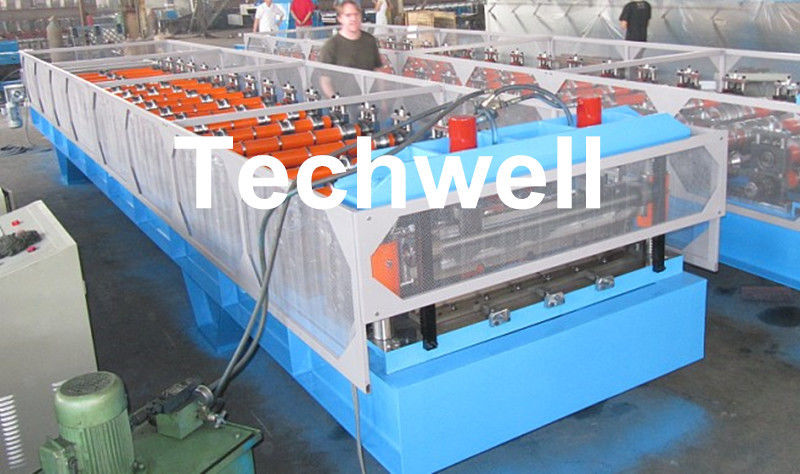

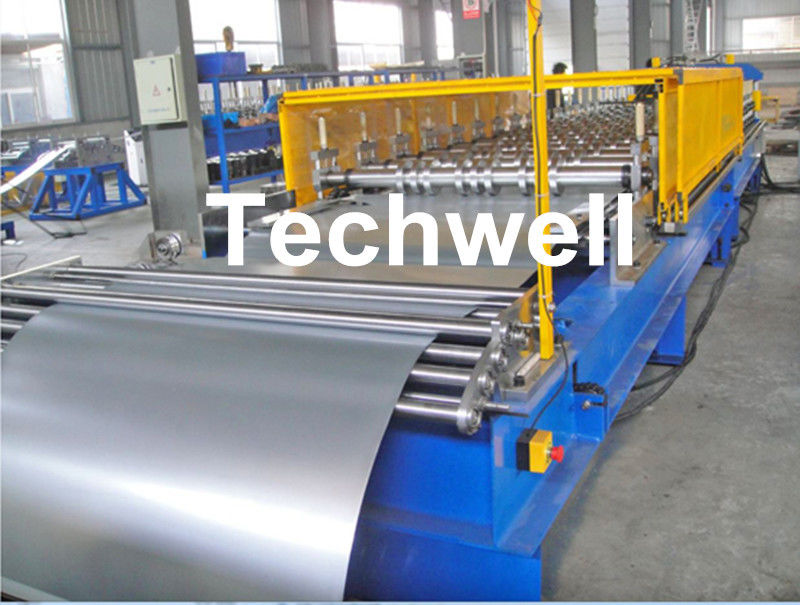

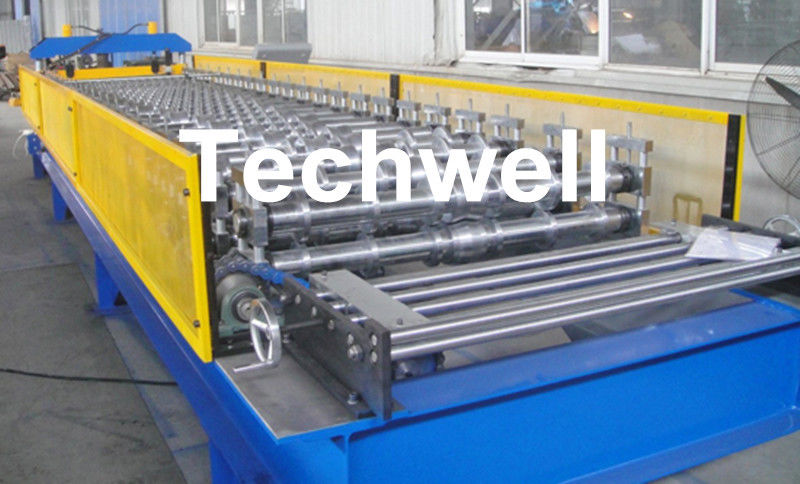

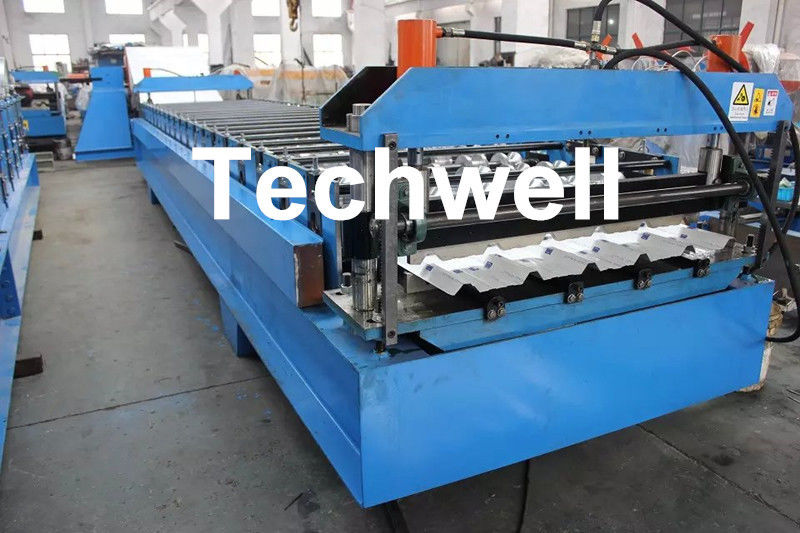

   More Machine Pictures



Custom Made Color Steel Roof Wall Roll Forming Machine With PPGI , GI Forming Material
