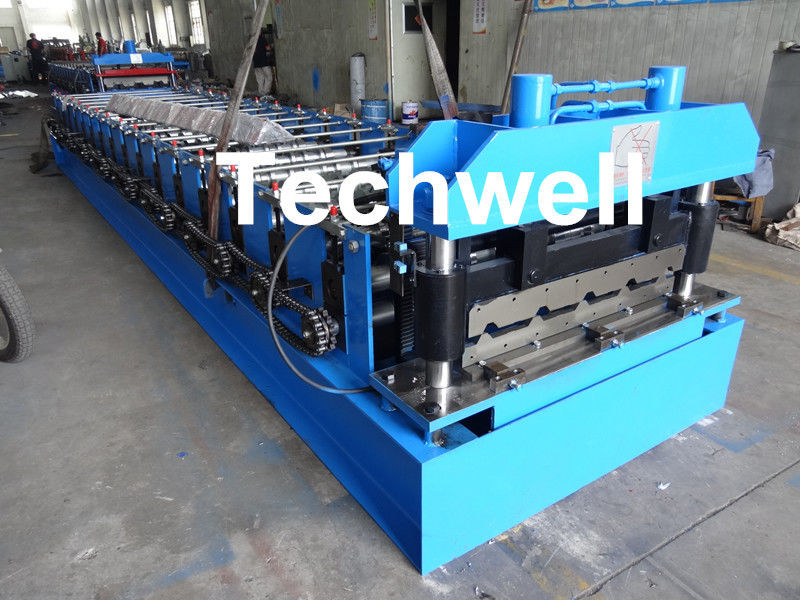

18 Forming Stations Roof Roll Forming Machine With Manual Or Hydraulic Type Decoiler / Uncoiler

18 Forming Stations Roof Roll Forming Machine With Manual Or Hydraulic Type Decoiler / Uncoiler

Roof Sheet Roll Forming Machine

roof panel roll forming machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

TW-RWM

Contact Us

Request A Quote
Product Details
Decoiler Type:
Manual Or Hydraulic
Roller Stations:
18 Stations
Drive Type:
Chain Drive
Main Power:
7.5KW
Material:
Color Stel, GI
Cutting Type:
Hydraulic Cutting
Product Description

18 Forming Stations Roofing Sheet Making Machine With Manual Or Hydraulic Type Decoiler / Uncoiler



   Technical Parameter



1). 5 Ton Manual Decoiler

1. Decoiler Type: Manual type decoiler

2. Weight Capacity of Decoiler: 5Ton

3. Manual expanding

4. Passive uncoiling

5. I.D: 508mm



2). Main Roll Forming Part

1. Forming material thickness: 0.3-0.7mm

2. Forming material type: PPGI, GI

3. Machine frame: high grade steel welded and tempering treatment

4. Forming structure: Welded wall plate strcuture

5. Forming motor: 7.5KW

6. Shaft material: 45# high grade steel tempering treatment (HB220-260)

7. Shaft diameter: 75mm

8. Roller material: 45# high grade steel, and roller surface with hard chrome 0.05mm

9. Forming speed: about 0-15m/min (excluding cutting time)

10. Forming station: ≈ 18 stations



3). Hydraulic Cutting & Hydraulic Station

1. Cutting type: Hydraulic cutting after roll forming, Burr-free cutting

2. When cutting, Machine stop

3. Cutting blade: 1 SET

4. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62

5. Hydraulic station power: 4KW

6. Hydraulic pressure: 15Mpa

7. Cutting Tolerance: +/-1.5mm



4). Electrical Control System

1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.

2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.



5). Run out Table

1. Roller type support table

2. to support the profile sheet after cutting



   Main Components



Decoiler 1 Unit
Feeding Guide 1 Unit
Main Roll Forming Machine 1 Unit
Hydraulic Cutting Device 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control 1 Unit
Run-out Table 1 Unit



   Reference Profile Drawing



18 Forming Stations Roof Roll Forming Machine With Manual Or Hydraulic Type Decoiler / Uncoiler 0



   Applications



Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal



roof panel; steel roof panel; roof wall cladding; roof cladding

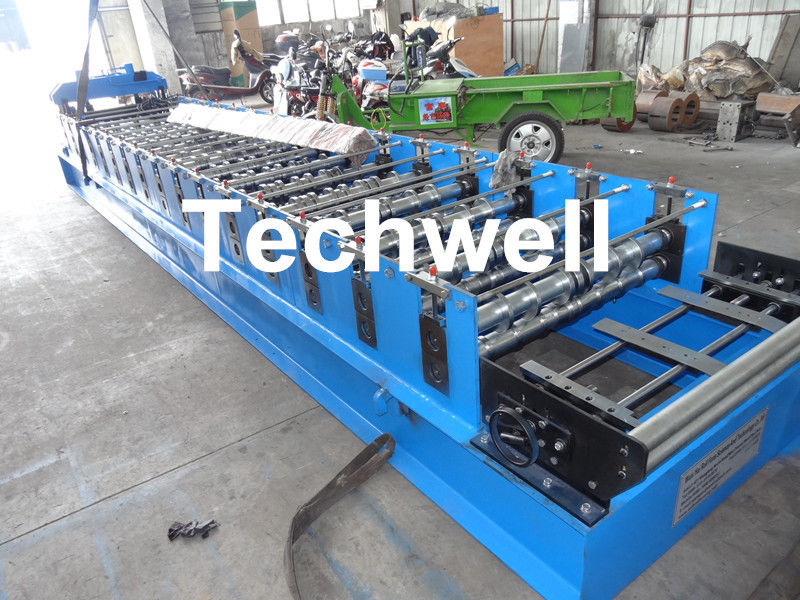

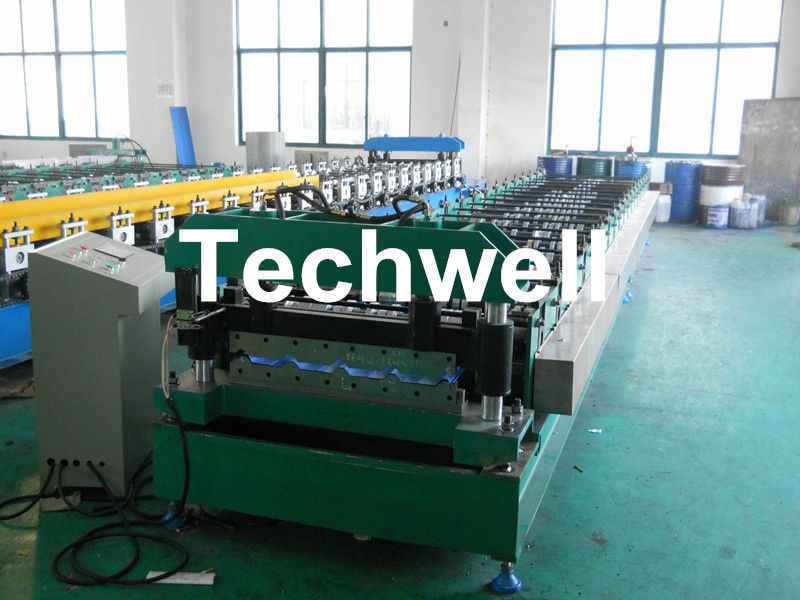

   More Machine Pictures



18 Forming Stations Roof Roll Forming Machine With Manual Or Hydraulic Type Decoiler / Uncoiler 1
