Aluminium , PPGI Standing Seam Cold Roll Forming Machine With Hydraulic Cutting Type

China Aluminium , PPGI Standing Seam Cold Roll Forming Machine With Hydraulic Cutting Type supplier
Aluminium , PPGI Standing Seam Cold Roll Forming Machine With Hydraulic Cutting Type supplier Aluminium , PPGI Standing Seam Cold Roll Forming Machine With Hydraulic Cutting Type supplier Aluminium , PPGI Standing Seam Cold Roll Forming Machine With Hydraulic Cutting Type supplier Aluminium , PPGI Standing Seam Cold Roll Forming Machine With Hydraulic Cutting Type supplier

Large Image :  Aluminium , PPGI Standing Seam Cold Roll Forming Machine With Hydraulic Cutting Type

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-STM400

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Material: GI. Aluminium, PPGI, Color Steel Roller Material: 45# Steel, Surface Coated With 0.05mm Hard Chrome
Forming Speed: 0-15m/min Shaft Material: High Grade 45# Steel
Drive Type: Chain Transmission Encoder: OMRON Brand

Aluminium, PPGI Standing Seam Roll Forming Machine With Hydraulic Cutting Type, PLC Frequency Control



   Characteristic





 1. This Standing Seam Roof Panel Roll Forming Machine can rollform metal roofing sheet. After roll formed by this standing seam machine, the surface of metal roofing is very smooth and beautiful without any scratch on the surface of roofing.



 2. The Standing Seam Roll Forming Machine is with fully automatic control system with PLC.



 3. Easy operation: Key in the length and quantity on the control panel.



 4. We also can do a custom roll forming machine, we can design machine according to your specifications and profile drawings.





   Main Technical Specifications



1. Decoiler

  • Decoiler Type: Manual decoiler
  • Manual expanding and tension
  • Passive uncoil
  • Coil I.D: 508mm
  • Coil Width: Max. 1250mm
  • Weight capacity of decoiler: 5Ton



2. Main Forming System

  • It consis of machine frame, machine stand, transmission parts and forming rollers etc.
  • Forming Material: GI, Aluminium, PPGI, Color Steel
  • Forming Roller Stand: About 17 Stations (Depend on final design)
  • Main Power: 7.5KW
  • Shaft Diameter: 76mm
  • Main Axis Material: First grade 45# steel, heated and quenched
  • Roller Material: GCr15 high grade steel, HRC58-62
  • Forming Speed: 0-20m/min
  • Drive Ttype: Chain drive
  • Machine Frame Stand: Welded structural steel
  • Material of Chain: High grade 45# seel, heated and quenched
  • Manually adjuest the spaces and rollers can produce sheet of different in a range.



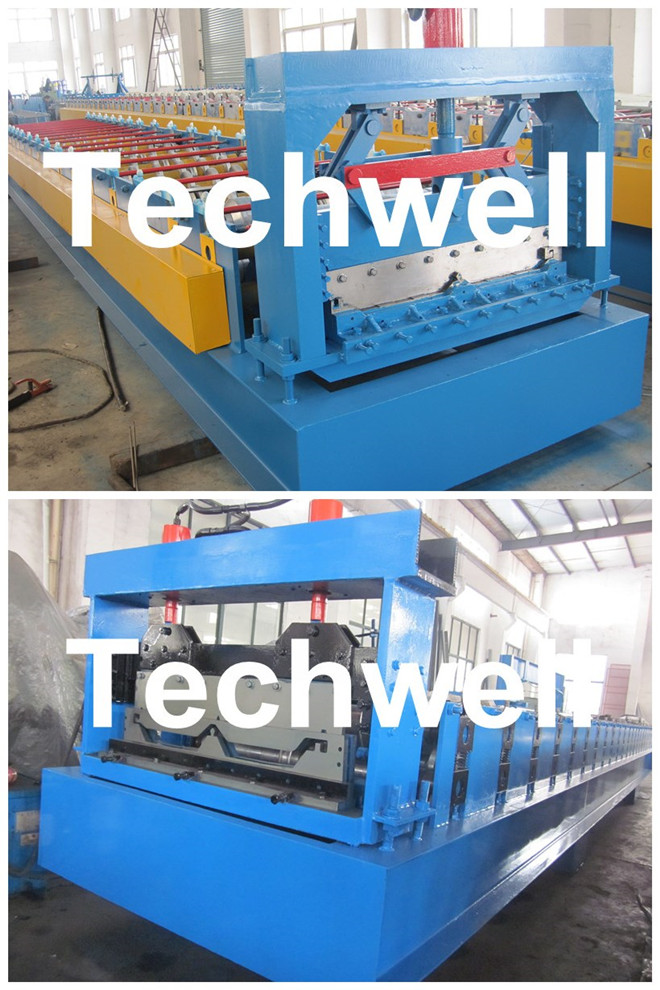

3. Cutting Device & Hydraulic Station

  • Cutting Type: Hydraulic cutting
  • Cutting Power: 4.0KW
  • Hydraulic Pressure: 10-15Mpa
  • Hydraulic cutter material: Cr12Mov, quenching process
  • Heat treatment of blade: HRC58-60
  • Cutting length tolerance: +/-1.5mm
  • Hydraulic station is used to drice the cutting device



4. Electrical System

  • PLC: PANASONIC Brand
  • Inverter: YASKAWA Brand
  • Touch screen: PANASONIC
  • Operation type: Famous Chinese Brand



    Main Components



  • Decoiler / Uncoiler ---------------------------------------------------1 Unit
  • Feeding Guide --------------------------------------------------------1 Unit
  • Standing Seam Roof Panel Roll Fomring Machine -----------1 Unit
  • Hydraulic Cutting Device -------------------------------------------1 Unit
  • Hydraulic Station -----------------------------------------------------1 Unit
  • PLC Computer Control Board ------------------------------------1 Unit
  • Runout Tables -------------------------------------------------------1 Unit



   Process Flow



Decoiler ---> Fedding Guide ---> Roll Forming ---> Cut-to-length ---> Run out table





   More Machine Pictures

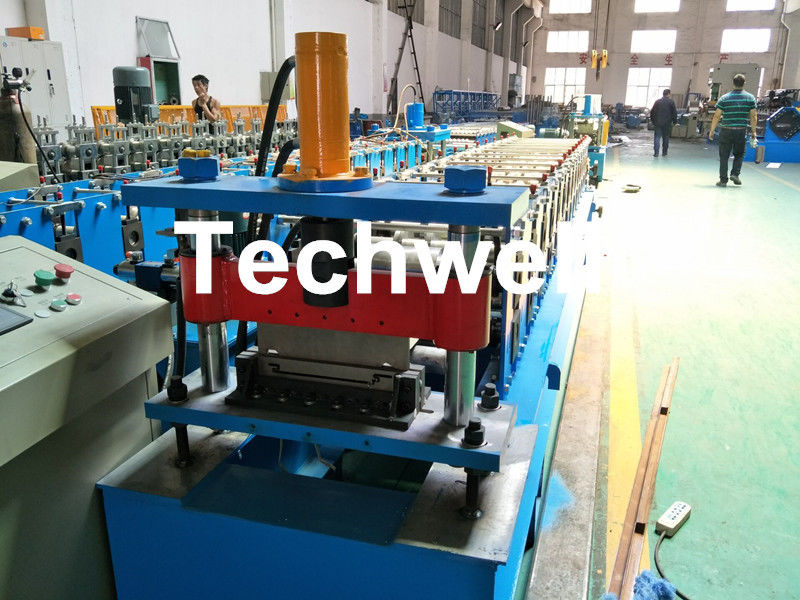

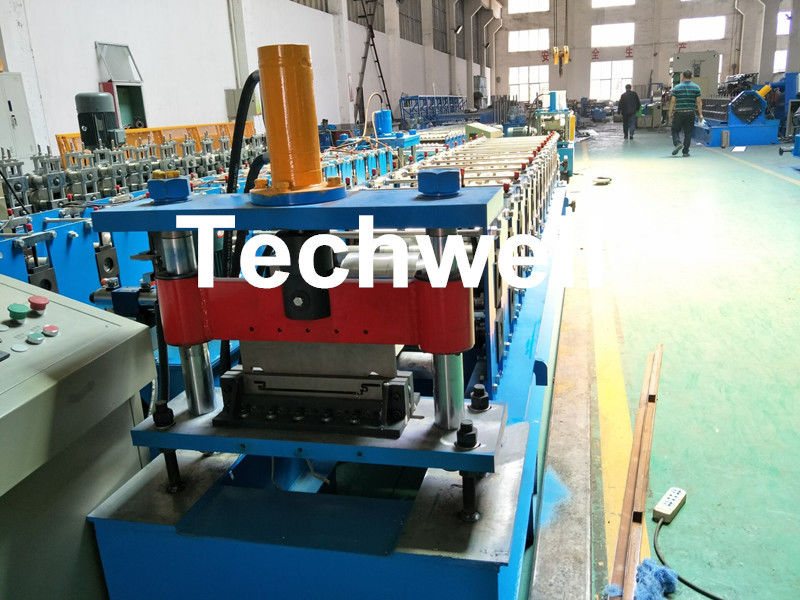

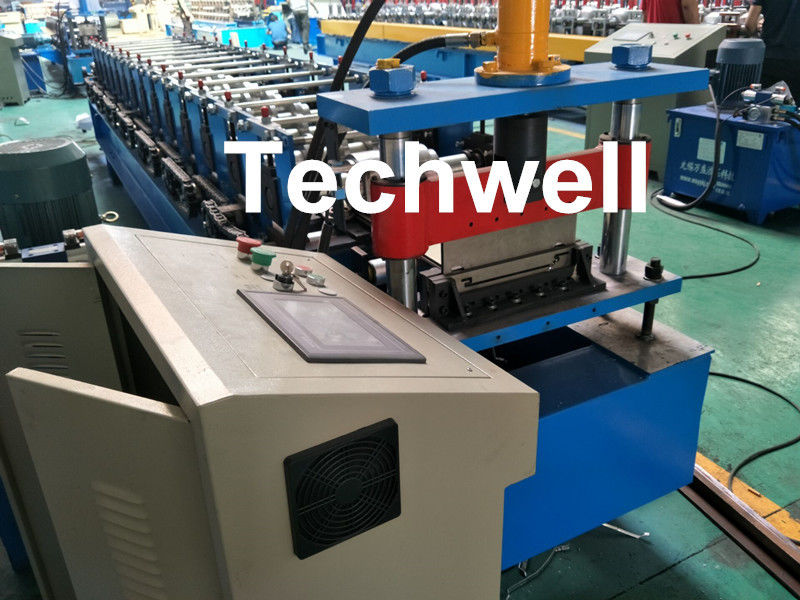

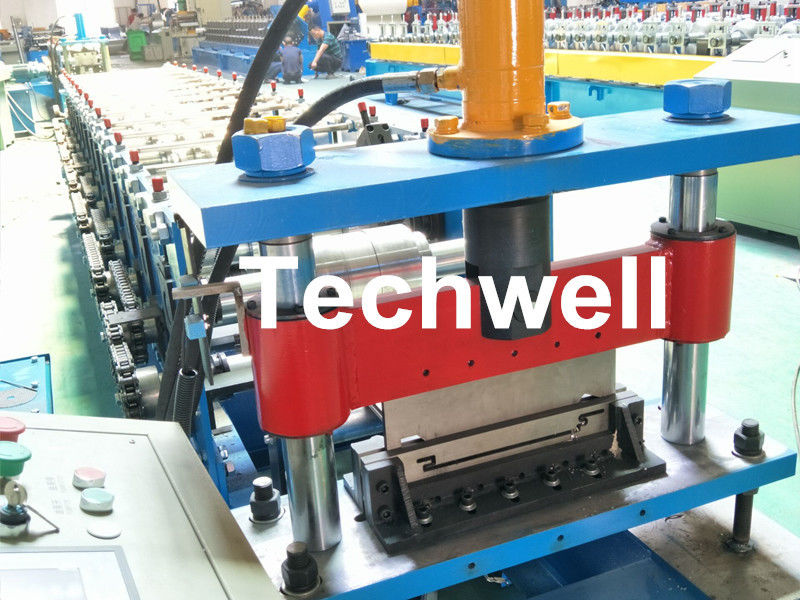

Aluminium , PPGI Standing Seam Cold Roll Forming Machine With Hydraulic Cutting Type





   Contact of Wuxi TECHWELL



Company Wuxi Techwell Machinery Co.,Ltd
Website

www.wxtechwell.com

www.cold-rollformingmachine.com

Email / Skype sales@wxtechwell.com
Mob / Whatsapp +86-15861597732 (Miss Lemon)

Contact Details
Wuxi Techwell Machinery Co., Ltd

Contact Person: monica

Send your inquiry directly to us (0 / 3000)
