Rotary Double Head Uncoiler / Decoiler Machine With Manual Or Hydraulic Type

China Rotary Double Head Uncoiler / Decoiler Machine With Manual Or Hydraulic Type supplier
Rotary Double Head Uncoiler / Decoiler Machine With Manual Or Hydraulic Type supplier Rotary Double Head Uncoiler / Decoiler Machine With Manual Or Hydraulic Type supplier Rotary Double Head Uncoiler / Decoiler Machine With Manual Or Hydraulic Type supplier Rotary Double Head Uncoiler / Decoiler Machine With Manual Or Hydraulic Type supplier

Large Image :  Rotary Double Head Uncoiler / Decoiler Machine With Manual Or Hydraulic Type

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-DECOILER

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Decoiler Type: Rotary Double Head Decoiler Machine Coil I.D: 480-520mm
Coil O.D: Max. 1500mm Width Of Strip: 120-350mm (Depend On Customer's Requirement)
Uncoiling Speed: 0-15m/min Material Of Main Shaft: 40Cr

Rotary Double Head Uncoiler / Decoiler Machine With Manual Or Hydraulic Type For Supporting The Coil





   Description of Double Head Uncoiler Machine



This machine is made up of support shelf, principal axis box and material shelf. The principal axis is a whole body

and has a long axis to support material shelf. Its small volume, loading convenient and has good flexibility.



1. save the material changing time ,improve production efficiency.

2. suitable for fast punching speed like stator rotor,and CE sheet ect

3. be able to work with straightener.

4. install the motor and the electric control to change into motive stand.

5. install the left and right shifter is available if material is too narrow .





   Technical Specifications



Machine Main Specification

Model

MTD-200 MTD-250 MTD-300 MTD-400 MTD-500 MTD-600
Material width (mm) 200 250 300 400 500 600
Material thickness (mm) 0-2.0 0-2.0 0-2.0 0-2.0 0-2.0 0-2.0
Coil inner diameter(mm) Φ480-520
Coil outer diameter(mm) Φ1500
Material weight 500×2 500×2 1000×2 1000×2 2000×2 2000×2
Speed of feeding(m/min) 15
Coil expansion Manual expansion or Hydraulic expanding, tension





   Competitive Advantages



1. Professional

More than 10 years' rich experience!

a.Specialized in Manual Curved Arch Roof Sheet Forming Machine;

b.Keeping improving the quality.

2. Reasonable price

We can save your money from every part!

a. Low labor cost;

b. Convenient transportation;

c. Complete supporting industries.

3. Easy to operate

More Competitive!
a. High efficiency
b. Low energy consumption

c. Reliable working

4. OEM / ODM

Customers’ design, color & logo are accepted!

Our outstanding experts and skilled workers are devoting their hard working, to ensure the machine with high quality.

5. ONE-Years warranty, whole life service.

Keep troubles far away from you!

Within the ONE-YEARS period, we could offer the replacement parts to the client free of charge for any parts damaged due to quality problems .





   More Machine Pictures

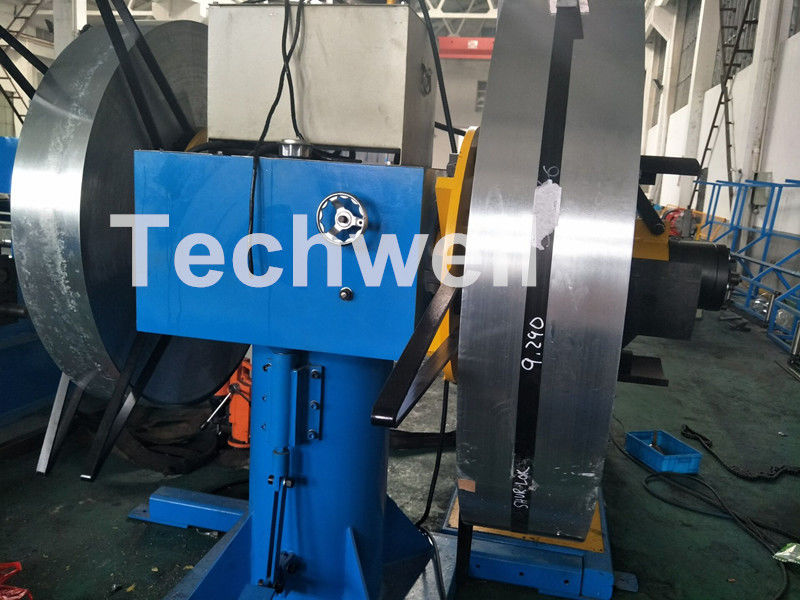

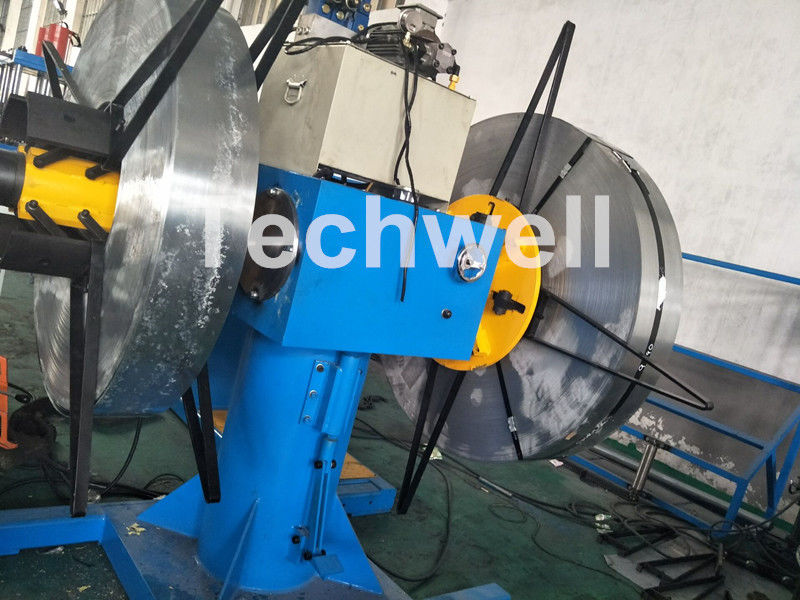

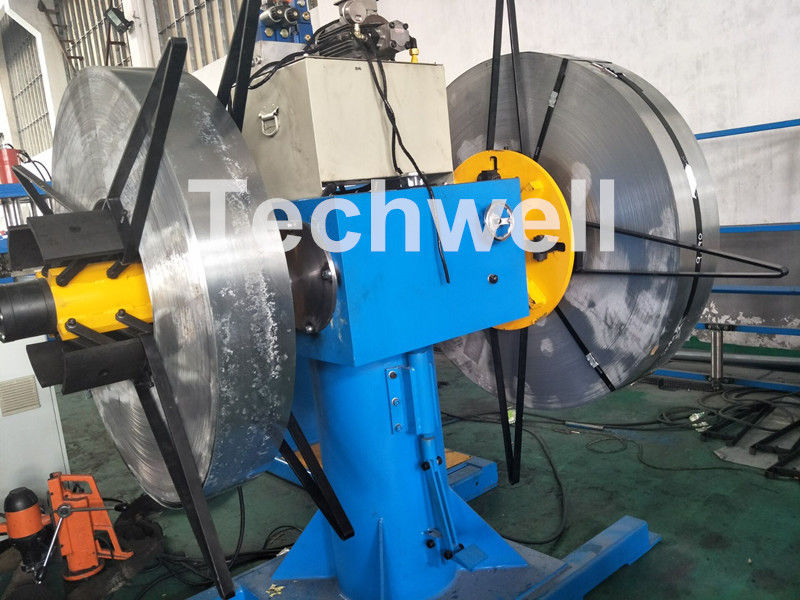

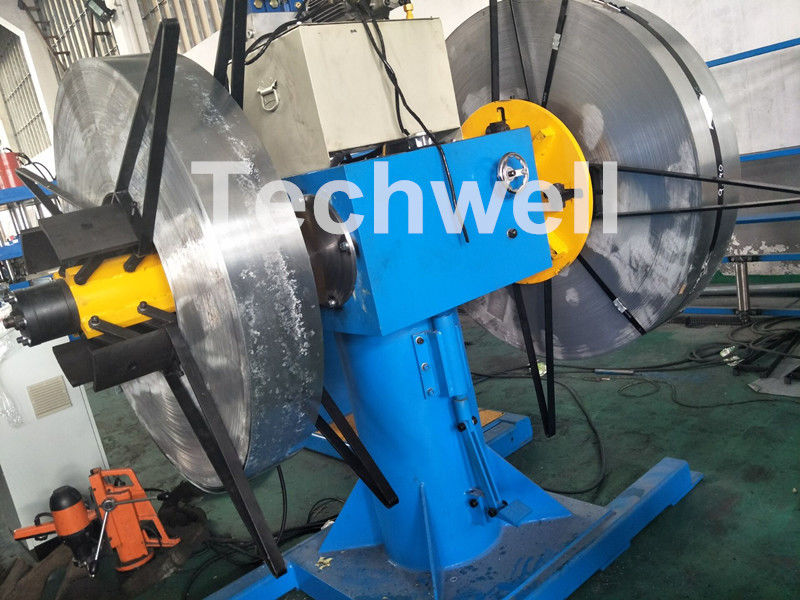

Rotary Double Head Uncoiler / Decoiler Machine With Manual Or Hydraulic Type





   Factory Pictures



Rotary Double Head Uncoiler / Decoiler Machine With Manual Or Hydraulic Type
