Guiding Column Forming Structure Hat Profile Cold Roll Forming Machine For 15KW Motor Power

China Guiding Column Forming Structure Hat Profile Cold Roll Forming Machine For 15KW Motor Power supplier
Guiding Column Forming Structure Hat Profile Cold Roll Forming Machine For 15KW Motor Power supplier Guiding Column Forming Structure Hat Profile Cold Roll Forming Machine For 15KW Motor Power supplier Guiding Column Forming Structure Hat Profile Cold Roll Forming Machine For 15KW Motor Power supplier Guiding Column Forming Structure Hat Profile Cold Roll Forming Machine For 15KW Motor Power supplier

Large Image :  Guiding Column Forming Structure Hat Profile Cold Roll Forming Machine For 15KW Motor Power

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-HCM100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Material: G.I. Steel, Carbon Steel Yield Strength: 250-350Mpa (depend On Customer's Requirements)
Cutting Type: Servo Tracking Cutting Main Motor Power: 11KW
Hydraulic Power: 7.5KW Roller Material: GCr15 Steel, HRC58-62

Guiding Column Forming Structure Hat Profile Cold Roll Forming Machine For 15KW Motor Power





   Main Technical Parameters



  • Thickness of sheet: 1.5-3.0mm
  • Coil width: Custom-made
  • Material: GI, Carbon steel
  • Decoiler / Uncoiler: Manual or hydraulic decoiler
  • Feeding rollers: 4 rollers
  • Leveling rollers: 7 rollers (upper 3 rollers, bottom 4 rollers)
  • Punching type: Hydraulic punching
  • Punching die: Cr12Mov, quenched, HRC58-62
  • Forming stations: 14 stations (Depend on profiles)
  • Roller material: GCr15 steel, HRC58-62
  • Diameter of shaft: 80mm
  • Shaft material: High grade 45# steel
  • Drive type: Chain transmission
  • Forming speed: 0-15m/min
  • Main power: 15KW
  • Hydraulic power: 7.5KW
  • Cutting type: Servo tracking cutting
  • Cutting tolerance: 10m+/-1.5mm
  • Encoder: OMRON Brand
  • PLC: PANASONIC Brand or Custom-made



   Main Components



 Decoiler / Uncoiler  1 Unit
 Pinch Feeding & Leveling  1 Unit
 Punching  1 Unit
 Main Roll Forming Machine  1 Unit
 Servo Tracking Cutting  1 Unit
 Hydraulic Station  1 Unit
 PLC Computer Control Board  1 Unit
 Runout Table  1 Unit





   Working Flow Chart



Decoiler ---> Fedding & Leveling ---> Punching ---> Roll Forming ---> Cut-to-length ---> Run out table





   Reference Profile Drawing



Guiding Column Forming Structure Hat Profile Cold Roll Forming Machine For 15KW Motor Power





   Applications



Top Hat Channel, Furring Channel, Hat Channel, Ridge Channel, Top Furring Channel...





   More Machine Pictures

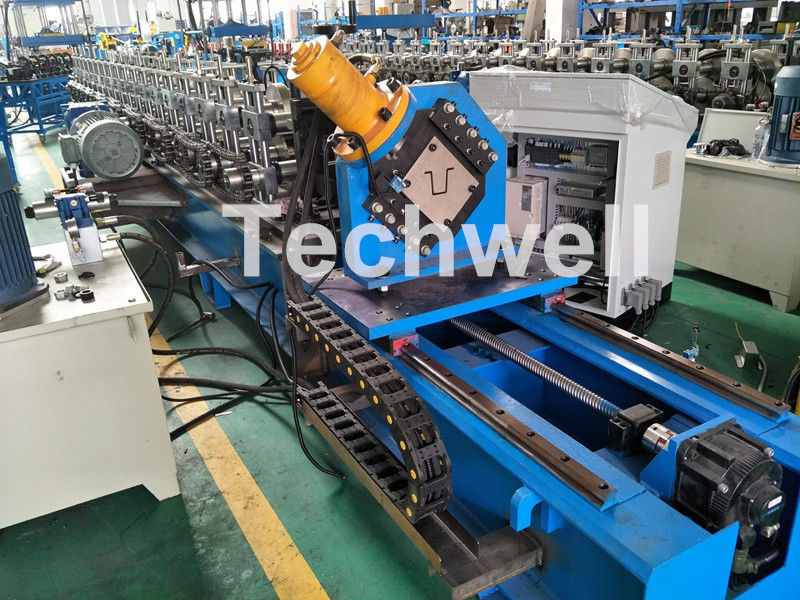

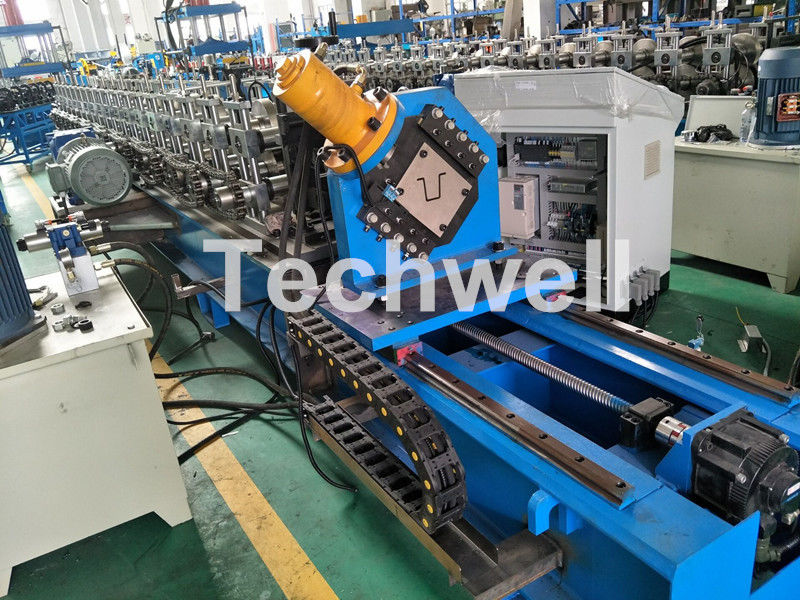

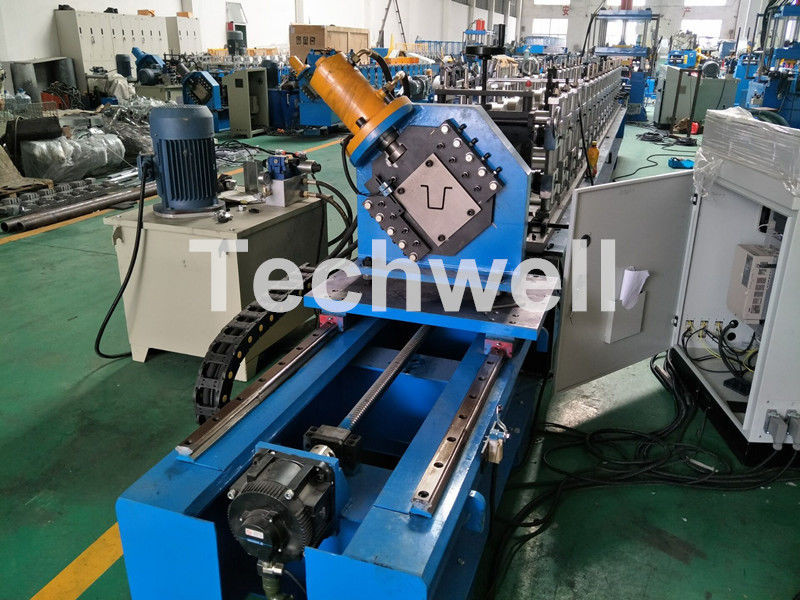

Guiding Column Forming Structure Hat Profile Cold Roll Forming Machine For 15KW Motor Power





   Contacts of WUXI TECHWELL



Company Wuxi Techwell Machinery Co.,Ltd
Website

www.wxtechwell.com

www.cold-rollformingmachine.com
Email / Skype sales@wxtechwell.com
Mob / Whatsapp +86-15861597732 (Miss Lemon)
Reference video link

https://youtu.be/YKpZmvc_huc

https://youtu.be/DIURQP7E698



Tag:

Roll Former Machine,

Roll Forming Equipment

Contact Details
Wuxi Techwell Machinery Co., Ltd

Contact Person: monica
