Cold Rolling Forming Machine For Making Top Hat Channel / Furring Channel Profiles

China Cold Rolling Forming Machine For Making Top Hat Channel / Furring Channel Profiles supplier
Cold Rolling Forming Machine For Making Top Hat Channel / Furring Channel Profiles supplier Cold Rolling Forming Machine For Making Top Hat Channel / Furring Channel Profiles supplier Cold Rolling Forming Machine For Making Top Hat Channel / Furring Channel Profiles supplier Cold Rolling Forming Machine For Making Top Hat Channel / Furring Channel Profiles supplier

Large Image :  Cold Rolling Forming Machine For Making Top Hat Channel / Furring Channel Profiles

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-HCM100

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Forming Shape: Hat Channel Profile Shape With Punching Holes Cutting Type: Servo Tracking Cutting
Forming Roller: GCr15 Steel Yield Strength: 250-350Mpa (depend On Customer's Requirements)
Control System: PLC Electrical Control Forming Stations: About 18 Stations

Cold Roll Forming Machine For Making Top Hat Channel / Furring Channel Profiles With PLC Electrical Control





   Main Technical Specifications



Coil Material Thickness 1.5-3.0mm
Coil width Custom-made
Yield Strength 250-350Mpa
Material GI. Carbon Steel
Decoiler / Uncoiler Coil Width Max. 600mm
I.D 508-610mm
O.D Max. 1500mm
Pinch Feeding & Leveling Feeding roller 4 Rollers
Leveling roller 7 Rollers ( upper 3 rollers, bottom 4 rollers )
Punching Punching type Hydraulic Punching
Punching die Cr12Mov, quenched, HRC58-62
Roll Forming Machine Forming stations 18 Stations ( Depend on Profiles )
Roller material GCr15 steel, HRC58-62
Diameter of shaft 80mm
Shaft material High grade 45# steel
Drive type Chain transmission
Forming speed 0-15m/min
Main power 15KW
Cutting Cutting type Servo tracking cutting
Cutting blade Cr12Mov, quenched
Cutting Power 7.5KW
Servo Power 4.0KW
Cutting Tolerance 10m+/-1.5mm
Encoder OMRON Brand
Electrical control PLC PANASONIC Brand or Custom-made
Inverter YASKAWA Brand or Custom-made
Touch screen MCGS Brand or Custom-made
Operation type Touch screen & Button





   Main Components



  • Decoiler / Uncoiler--------------------------------------------------------------------------1 Unit
  • Pinch Feeding & Leveling-----------------------------------------------------------------1 Unit
  • Punching--------------------------------------------------------------------------------------1 Unit
  • Main Roll Forming Machine---------------------------------------------------------------1 Unit
  • Servo Tracking Cutting---------------------------------------------------------------------1 Unit
  • Hydraulic Station-----------------------------------------------------------------------------1 Unit
  • PLC Computer Control Board-------------------------------------------------------------1 Unit
  • Runout Table---------------------------------------------------------------------------------1 Unit

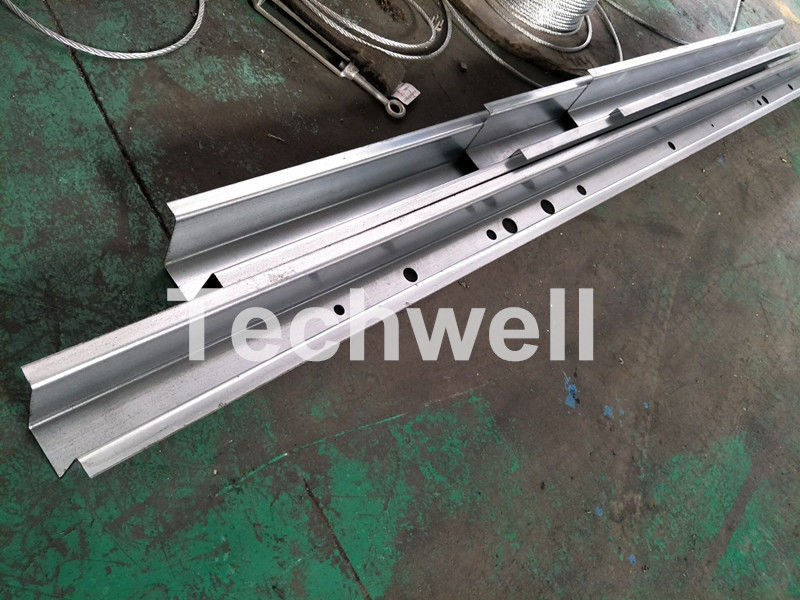

   Reference Profile Drawing



Cold Rolling Forming Machine For Making Top Hat Channel / Furring Channel Profiles





   Applications



Top Hat Channel, Furring Channel, Hat Channel, Ridge Channel, Top Furring Channel...





   Deliver Pictures

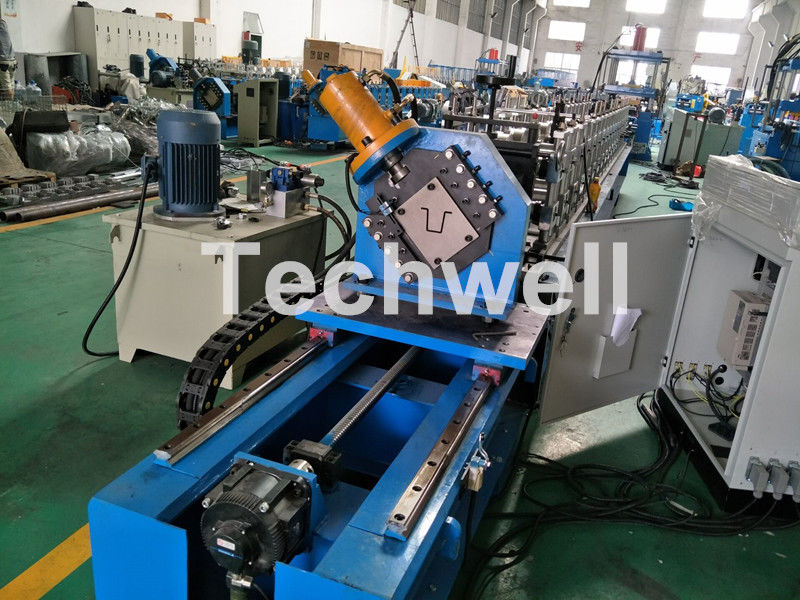

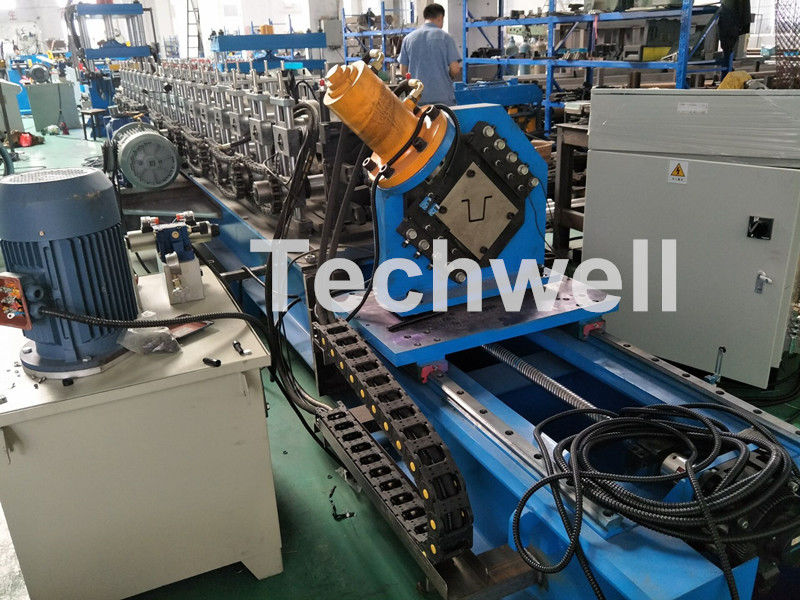

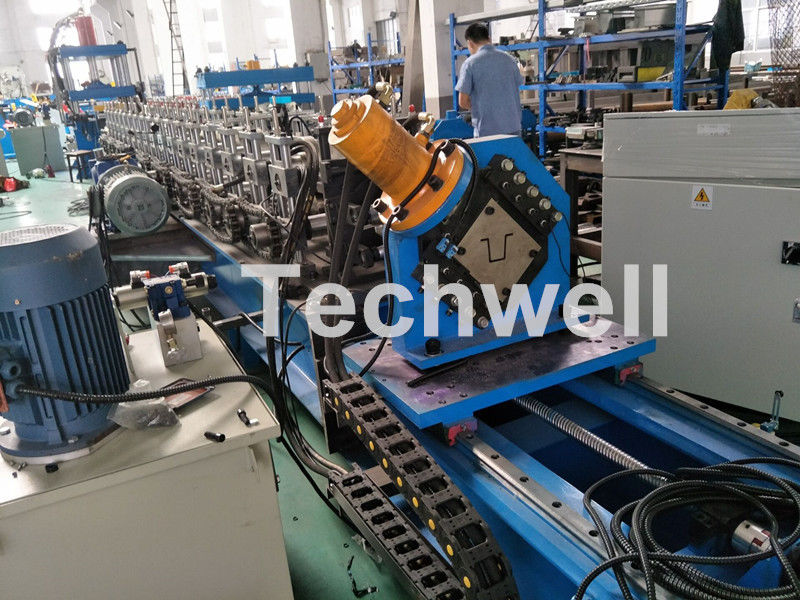

Cold Rolling Forming Machine For Making Top Hat Channel / Furring Channel Profiles





   Contacts of WUXI TECHWELL



Company Wuxi Techwell Machinery Co.,Ltd
Website

www.wxtechwell.com

www.cold-rollformingmachine.com

Email / Skype sales@wxtechwell.com
Mob / Whatsapp +86-15861597732 (Miss Lemon)
Reference video link

https://youtu.be/YKpZmvc_huc

https://youtu.be/DIURQP7E698



Contact Details
Wuxi Techwell Machinery Co., Ltd

Contact Person: monica

Send your inquiry directly to us (0 / 3000)
