Top Furring Channel Cold Roll Forming Machine With Continuous Servo Tracking Cutting

Top Furring Channel Cold Roll Forming Machine With Continuous Servo Tracking Cutting

Roll Former Machine

Roll Forming Equipment

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

TW-HCM100

Contact Us

Request A Quote
Product Details
Material:
G.I. Steel, Carbon Steel
Punching Type:
Hydraulic Punching
Roller Material:
GCr15 Steel, HRC58-62
Cutting Type:
Servo Tracking Cutting
Control System:
PLC Electrical Control
Encoder:
Omron Brand
Product Description

Top Furring Channel Cold Roll Forming Machine With Continuous Servo Tracking Cutting





   Main Technical Specifications



  • Thickness of sheet: 1.5-3.0mm
  • Coil width: Custom-made
  • Material: GI, Carbon steel
  • Decoiler / Uncoiler: Manual or hydraulic decoiler
  • Feeding rollers: 4 rollers
  • Leveling rollers: 7 rollers (upper 3 rollers, bottom 4 rollers)
  • Punching type: Hydraulic punching
  • Punching die: Cr12Mov, quenched, HRC58-62
  • Forming stations: 18 stations (Depend on profiles)
  • Roller material: GCr15 steel, HRC58-62
  • Diameter of shaft: 80mm
  • Shaft material: High grade 45# steel
  • Drive type: Chain transmission
  • Forming speed: 0-15m/min
  • Main power: 15KW
  • Hydraulic power: 7.5KW
  • Servo motor power: 4.0KW
  • Cutting type: Servo tracking cutting
  • Cutting tolerance: 10m+/-1.5mm
  • Encoder: OMRON Brand
  • PLC: PANASONIC Brand or Custom-made



   Description of Hat Channel Roll Former



Top hat channel machine in which the adjustable pedestal system is introduced can be used to produce different height top hat purlin.
Adapting the PLC, touch screen, and frequency converter system, it applies convenient operation, stable speed control and precise production





   Main Components



Decoiler / Uncoiler 1 Unit
Pinch Feeding & Leveling 1 Unit
Punching 1 Unit
Main Roll Forming Machine 1 Unit
Servo Tracking Cutting 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Board 1 Unit
Runout Table 1 Unit





   Reference Profile Drawing

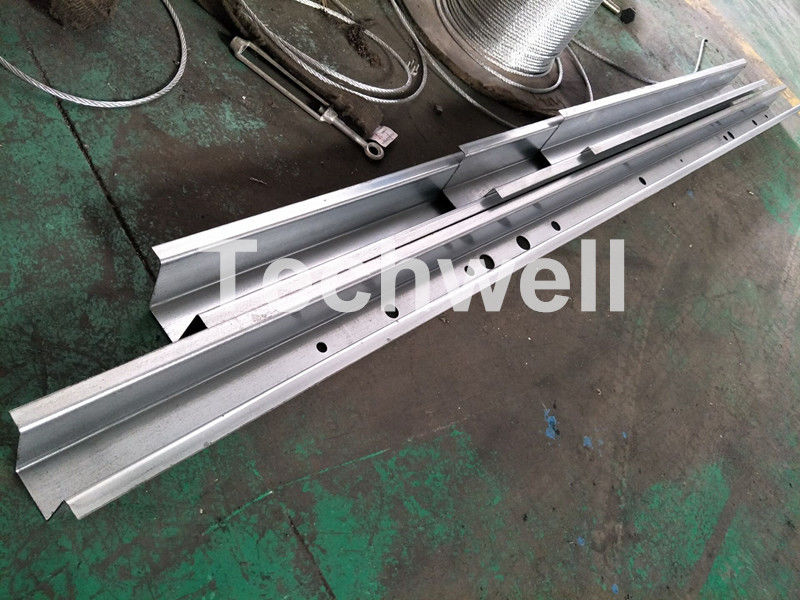

Top Furring Channel Cold Roll Forming Machine With Continuous Servo Tracking Cutting 0





   Competitive Advantages



1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements





   More Machine Picturres

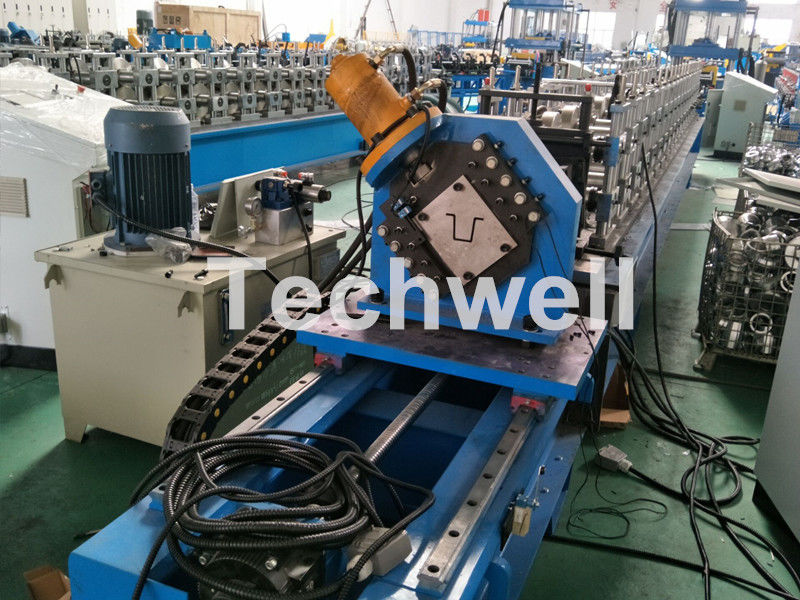

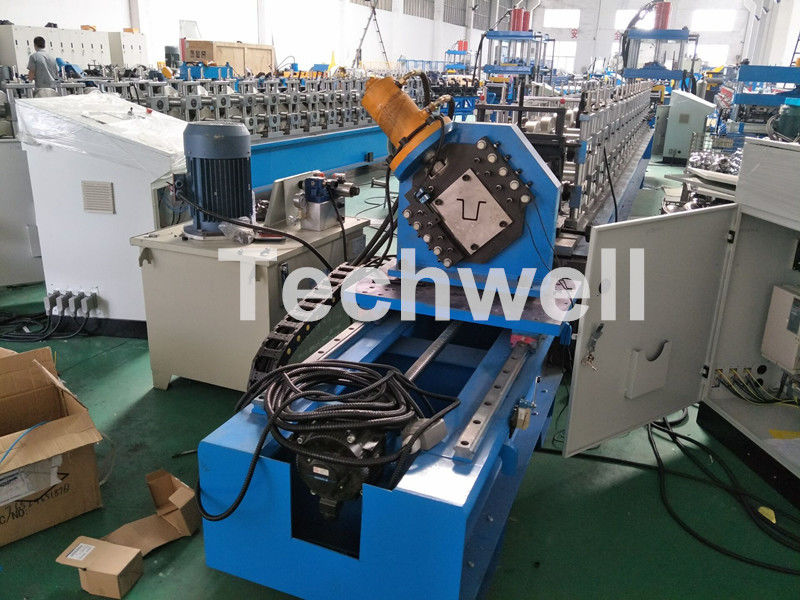

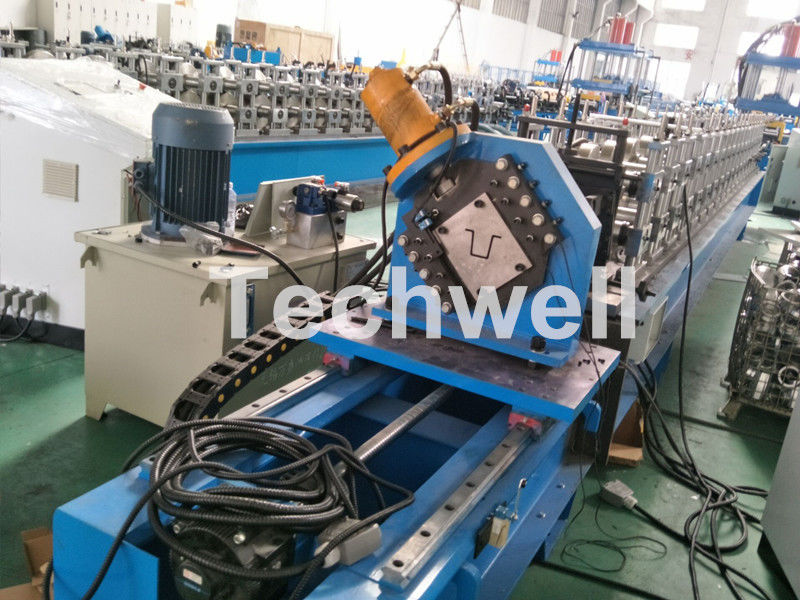

Top Furring Channel Cold Roll Forming Machine With Continuous Servo Tracking Cutting 1
