16 Stations Cold Roll Forming Machine With Rubber Belt Driven Servo Tracking Cutting Device

China 16 Stations Cold Roll Forming Machine With Rubber Belt Driven Servo Tracking Cutting Device supplier
16 Stations Cold Roll Forming Machine With Rubber Belt Driven Servo Tracking Cutting Device supplier 16 Stations Cold Roll Forming Machine With Rubber Belt Driven Servo Tracking Cutting Device supplier 16 Stations Cold Roll Forming Machine With Rubber Belt Driven Servo Tracking Cutting Device supplier 16 Stations Cold Roll Forming Machine With Rubber Belt Driven Servo Tracking Cutting Device supplier

Large Image :  16 Stations Cold Roll Forming Machine With Rubber Belt Driven Servo Tracking Cutting Device

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-HCM100

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Raw Material: GI, Carbon Steel Forming Speed: 0-15m/min
Cutting Type: Servo Tracking Cutting Yield Strength: 250-350Mpa (depend On Customer's Requirements)
Forming Roller: GCr15 Steel Control System: PLC Electrical Control

16 Forming Stations Cold Roll Forming Machine With Rubber Belt Driven Servo Tracking Cutting Device





   Main Technical Specifications



Thickness of Sheet 1.5-3.0mm
Coil Width Custom-made
Material GI, Carbon steel
Decoiler / Uncoiler Manual or hydraulic decoiler
Machine Frame High grade steel welded and tempering treatment
Forming Structure Guiding column
Punching Type Hydraulic punching
Forming stations 16 stations (Depend on profiles)
Roller material GCr15 steel, HRC58-62
Diameter of shaft 75mm
Shaft material High grade 45# steel
Drive type 1.5 inch chain transmission
Forming speed 0-15m/min
Main power 11KW
Hydraulic power 7.5KW
Servo motor power 4.0KW
Cutting type Servo tracking cutting
Cutting tolerance 10m+/-1.5mm
Encoder OMRON Brand





   Working Flow Chart



Decoiler / Uncoiler ---- Feeding guide & Leveling Device ---- Punching------Roll Forming ---- Servo Tracking



Cutting ------ Run out table





   Main Components



  • Decoiler / Uncoiler--------------------------------------------------------------------------1 Unit
  • Feeding & Leveling--------------------------------------------------------------------------1 Unit
  • Punching--------------------------------------------------------------------------------------1 Unit
  • Main Roll Forming Machine---------------------------------------------------------------1 Unit
  • Servo Tracking Cutting---------------------------------------------------------------------1 Unit
  • Hydraulic Station-----------------------------------------------------------------------------1 Unit
  • PLC Computer Control Board-------------------------------------------------------------1 Unit
  • Runout Table---------------------------------------------------------------------------------1 Unit



   Competitive Advantages



1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements

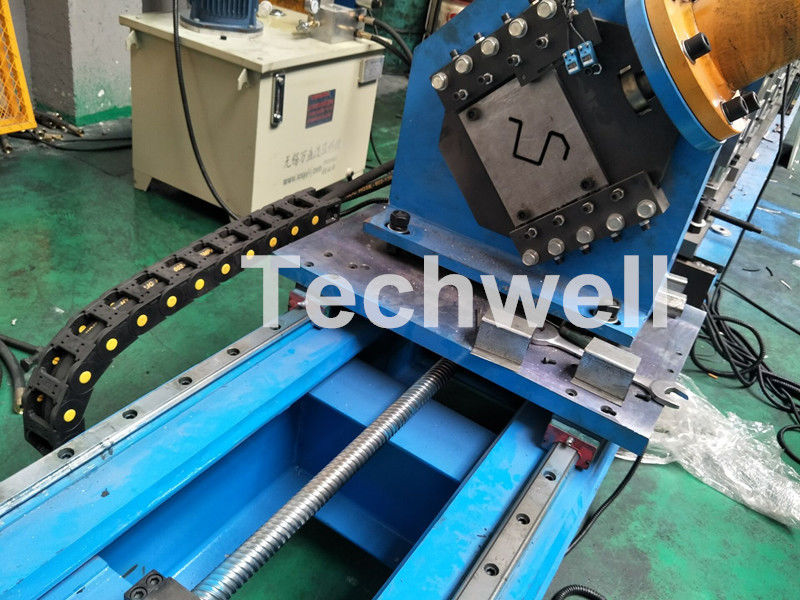

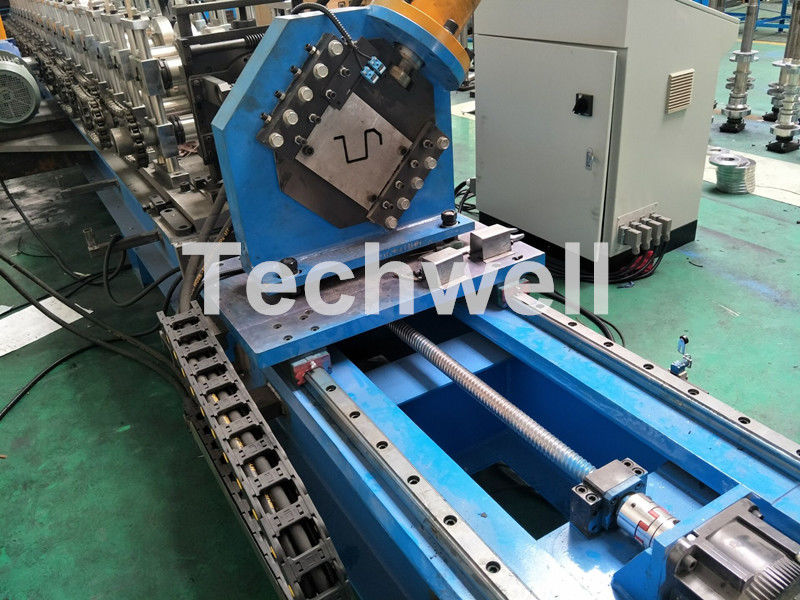

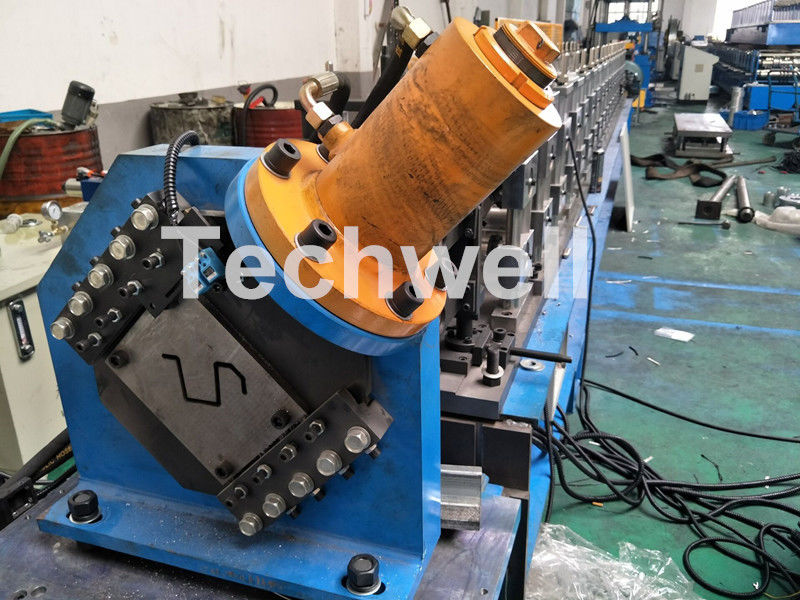

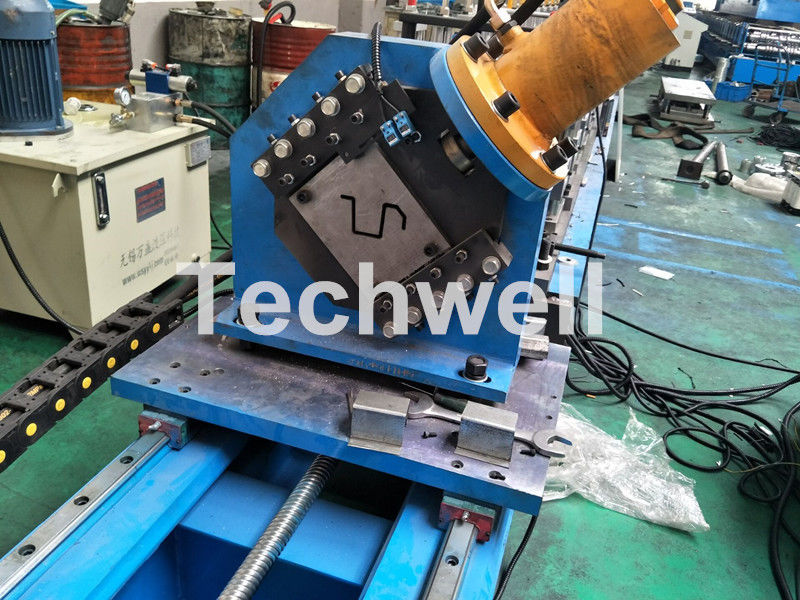

   More Machine Pictures



16 Stations Cold Roll Forming Machine With Rubber Belt Driven Servo Tracking Cutting Device





   Deliver Machine Pictures



16 Stations Cold Roll Forming Machine With Rubber Belt Driven Servo Tracking Cutting Device
