Customized Cold Roll Forming Machine For Making Hat Section / Furring Channel

Customized Cold Roll Forming Machine For Making Hat Section / Furring Channel

Roll Former Machine

Roll Forming Equipment

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

TW-HCM100

Contact Us

Request A Quote
Product Details
Forming Structure:
Guiding Column Steel Structure
Diameter Of Shaft:
75mm
Cutting Type:
Servo Tracking Cutting
Roller Material:
GCr15 Steel, HRC58-62
Encoder:
Omron Brand
Main Motor Power:
11KW
Product Description

0-15m/min Walking Speed, Customized Cold Roll Forming Machine For Making Hat Section / Furring Channel





   Main Technical Specifications



  • Thickness of sheet: 1.5-3.0mm
  • Coil width: Custom-made
  • Material: GI, Carbon steel
  • Decoiler / Uncoiler: Manual or hydraulic decoiler
  • Machine Frame: High grade steel welded and tempering treatment
  • Forming Structure: Guiding column
  • Punching type: Hydraulic punching
  • Punching die: Cr12Mov, quenched, HRC58-62
  • Forming stations: 16 stations (Depend on profiles)
  • Roller material: GCr15 steel, HRC58-62
  • Diameter of shaft: 75mm
  • Shaft material: High grade 45# steel
  • Drive type: 1.5 inch chain transmission
  • Forming speed: 0-15m/min
  • Main power: 11KW
  • Hydraulic power: 7.5KW
  • Servo motor power: 4.0KW
  • Cutting type: Servo tracking cutting
  • Cutting tolerance: 10m+/-1.5mm
  • Encoder: OMRON Brand
  • PLC: PANASONIC Brand or Custom-made



   Main Components



  • Decoiler / Uncoiler--------------------------------------------------------------------------1 Unit
  • Feeding & Leveling--------------------------------------------------------------------------1 Unit
  • Punching--------------------------------------------------------------------------------------1 Unit
  • Main Roll Forming Machine---------------------------------------------------------------1 Unit
  • Servo Tracking Cutting---------------------------------------------------------------------1 Unit
  • Hydraulic Station-----------------------------------------------------------------------------1 Unit
  • PLC Computer Control Board-------------------------------------------------------------1 Unit
  • Runout Table---------------------------------------------------------------------------------1 Unit



   Working Flowing Chart



Decoiler / Uncoiler ---- Feeding guide & Leveling Device ---- Punching------Roll Forming ---- Servo Tracking



Cutting ------ Run out table





   Competitive Advantages



1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements





   Machine Pictures

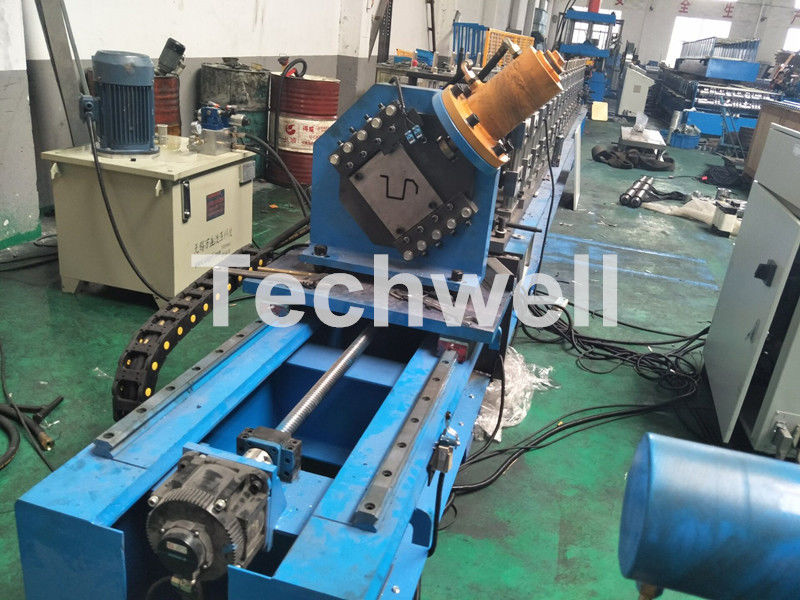

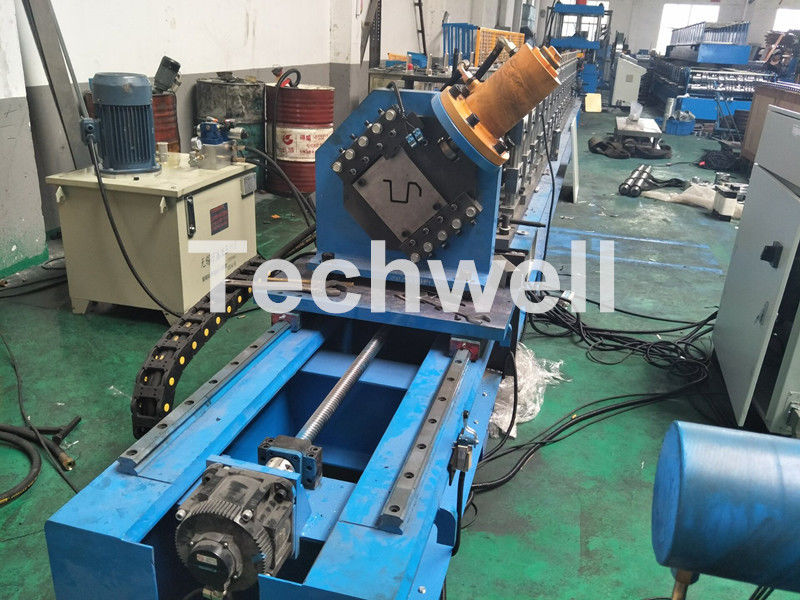

Customized Cold Roll Forming Machine For Making Hat Section / Furring Channel 0





   Deliver Machine Pictures

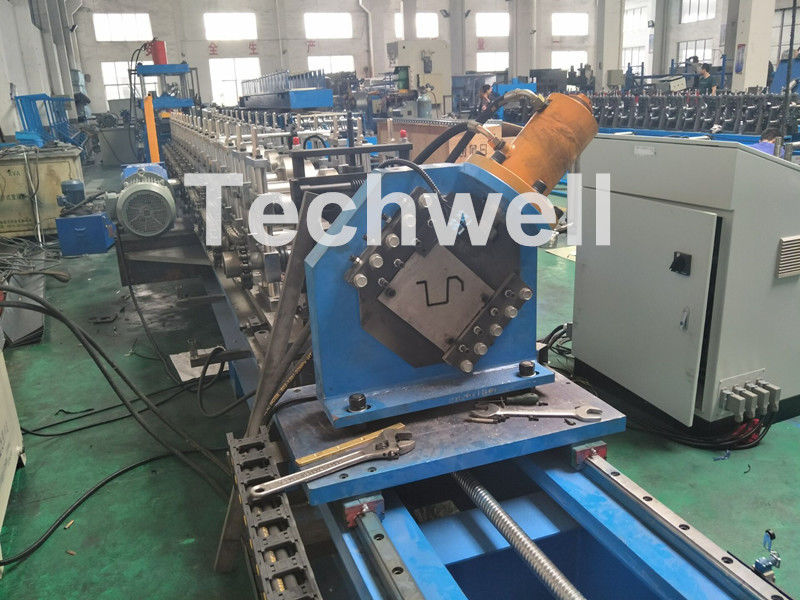

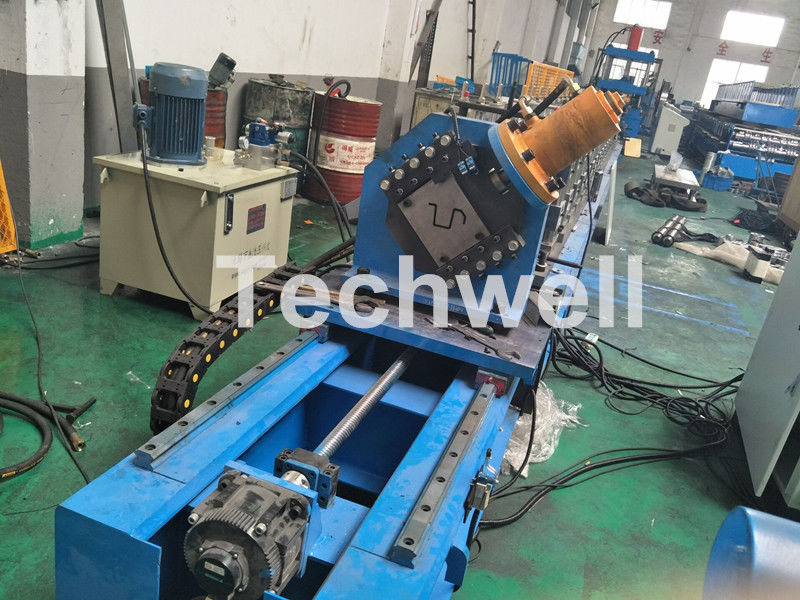

Customized Cold Roll Forming Machine For Making Hat Section / Furring Channel 1





   Contacts of WUXI TECHWELL



Company Wuxi Techwell Machinery Co.,Ltd
Website

www.wxtechwell.com

www.cold-rollformingmachine.com

Email / Skype sales@wxtechwell.com
Mob / Whatsapp +86-15861597732 (Miss Lemon)

Send your inquiry directly to us
