Galvanized Steel Half Round Portable Gutter Machine 15m/min

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Galvanized Steel Half Round Portable Gutter Machine 15m/min

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-GM5
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 60-70 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Detailed Product Description
Coil Material: PPGI, Galvanized Steel Forming Stations: About 16 Stations
Forming Motor:: 5.5KW Shaft Diameter: 70mm
Cutting Type: Hydraulic Cutting After Roll Forming, Burr-free Cutting Hydraulic Station Power: 4.0KW
High Light:

Half Round Portable Gutter Machine


Galvanized Steel Portable Gutter Machine


15m/min Portable Gutter Machine


Galvanized Steel K Style / Half Round Seamless Gutter Machine High Speed 10-15m / min



   Summary of Gutter Roll Former


1). This roll forming machine adopts coil production material to form gutter through 3 Ton manual decoiler, pinch feeding, main roll forming part, Hydraulic cutting, hydraulic station, PLC control system, and Non-power type support table.


2). The whole machine adopts PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.



   Main Technical Specifications



 1). Uncoiler Machine


  1. Decoiler Type: Manual type uncoiler

  2. Weight Capacity of decoiler: 3T (Or according to customer's requiremetns)

  3. Manual expanding, passive uncoiling

  4. I.D: 508mm

  5. Coil Width: Max. 500mm

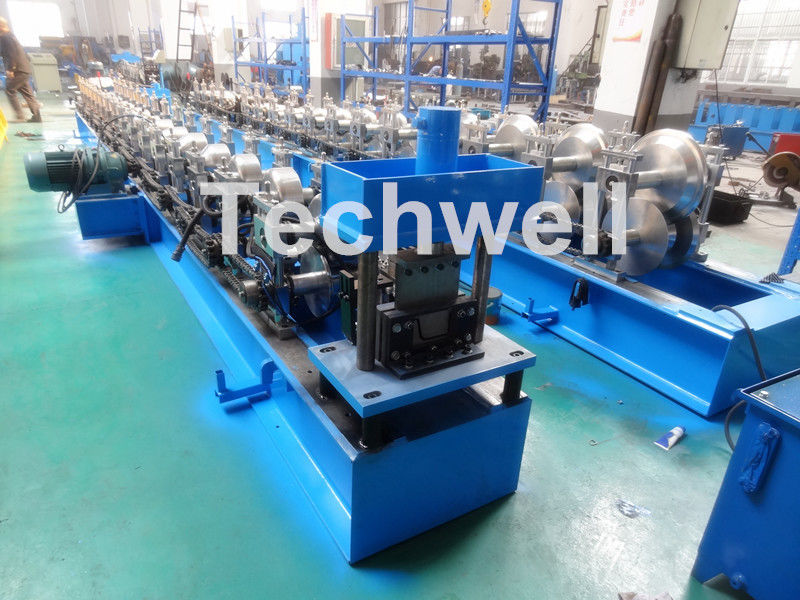

Galvanized Steel Half Round Portable Gutter Machine 15m/min 0


 2). Main Roll Forming Part


  1. Forming material thickness: 0.4-0.8mm

  2. Forming material type: PPGI, GI.

  3. Forming motor: 5.5KW

  4. Shaft material: 45# high grade steel tempering treatment (HB220-260)

  5. Shaft diameter: Φ70mm

  6. Roller material: 45# high grade steel, and roller surface with hard chrome ≥ 0.05mm, HRC48-52

  7. Forming speed: about 10-15m/min

  8. Forming stations: about 16 stations (depend on final design)

  9. Drive type: chain drive

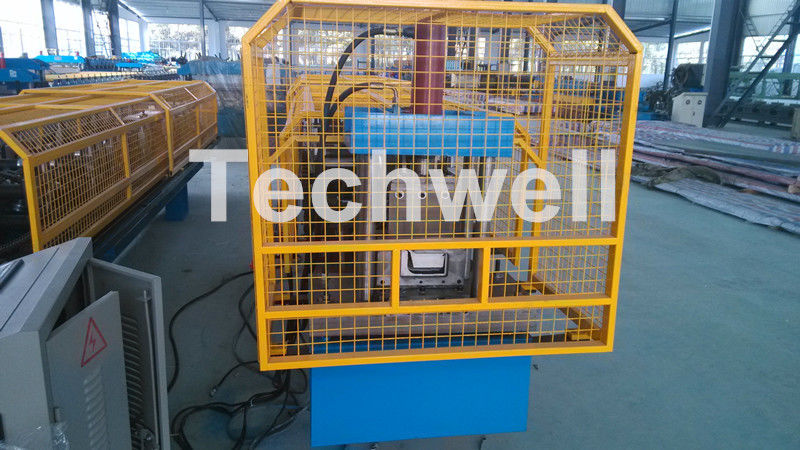

Galvanized Steel Half Round Portable Gutter Machine 15m/min 1


 3). Hydraulic Cutting & Hydraulic Station


  1. Cutting type: Hydraulic cutting after roll forming

  2. When cutting, Machine stop

  3. Cutting blades material: Cr12Mov, Quench treatment, HRC58-62

  4. Hydraulic power: 4.0KW

  5. Cutting tolerance: +/-1.5mm

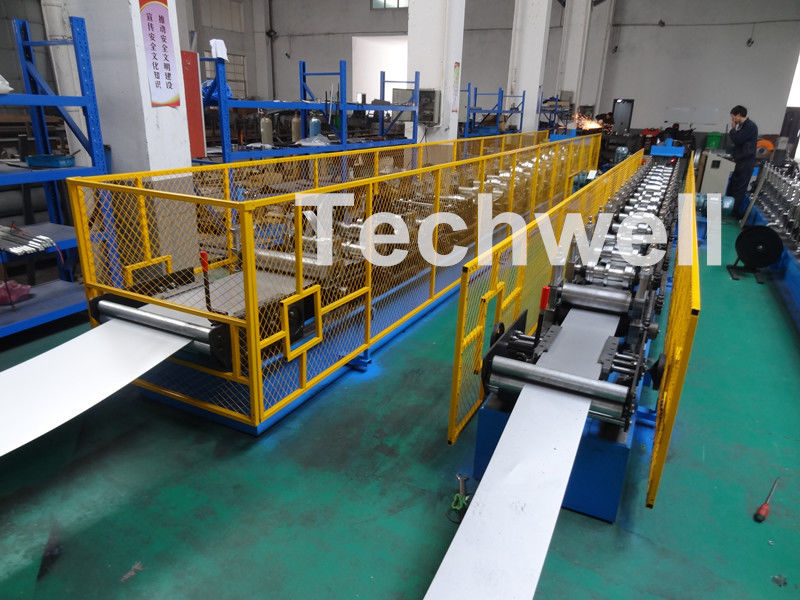

Galvanized Steel Half Round Portable Gutter Machine 15m/min 2


 4). PLC Control System


  1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface.

      People interact with the PLC. Operator by setting the program to run automatically (programmable control) to       monitor and control process, to achieve the operator to control the production line and modify the control             parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work           piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status       and fault indication.

  2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are                     emergency stop button on it.



   Working Flowing Chart


Decoiler --- Pinch Feeding --- Main Roll Forming --- Hydraulic Cutting --- Support Table



   Main Components


  • Decoiler / Uncoiler ------------------------------------------------------------1 Unit
  • Pinch Feeding -----------------------------------------------------------------1 Unit
  • Main Roll Forming ------------------------------------------------------------1 Unit
  • Hydraulic Cutting--------------------------------------------------------------1 Unit
  • Hydraulic Station--------------------------------------------------------------1 Unit
  • Electrical Control Board------------------------------------------------------1 Unit
  • Run-out Table------------------------------------------------------------------1 Unit


   More Machine Pictures

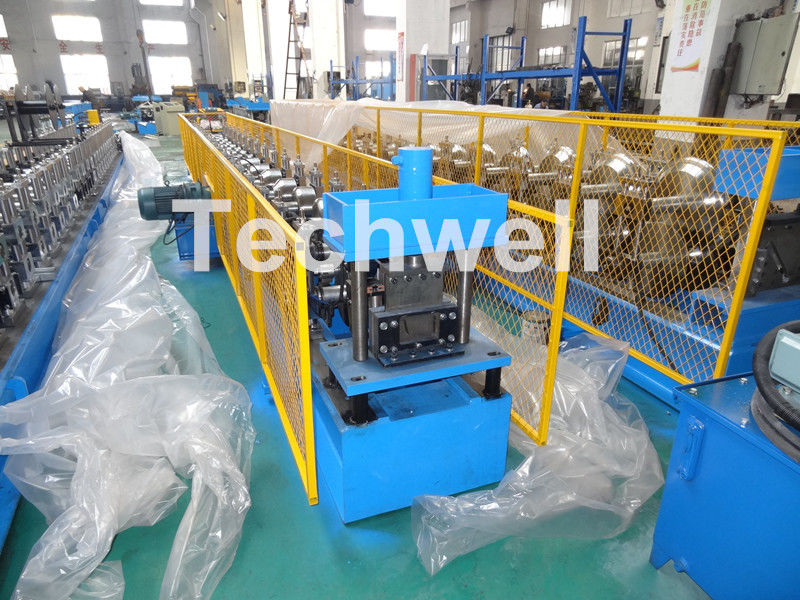

Galvanized Steel Half Round Portable Gutter Machine 15m/min 3
