U Shaped Rainwater Seamless Gutter Machine , Box Gutter Roll Forming Machine

China U Shaped Rainwater Seamless Gutter Machine , Box Gutter Roll Forming Machine supplier
U Shaped Rainwater Seamless Gutter Machine , Box Gutter Roll Forming Machine supplier U Shaped Rainwater Seamless Gutter Machine , Box Gutter Roll Forming Machine supplier U Shaped Rainwater Seamless Gutter Machine , Box Gutter Roll Forming Machine supplier U Shaped Rainwater Seamless Gutter Machine , Box Gutter Roll Forming Machine supplier

Large Image :  U Shaped Rainwater Seamless Gutter Machine , Box Gutter Roll Forming Machine

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-GM5

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 60-70 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Forming Material Thickness: 0.3-0.8mm Drive Type: Chain Of Transmission
Cutting Tolerance: +/-1.5mm Forming Stations: About 16 Stations
Forming Motor: 5.5KW Hydraulic Power: 4.0KW



U Shaped Rainwater Seamless Gutter Machine , Box Gutter Roll Forming Machine





   Main Technical Specifications

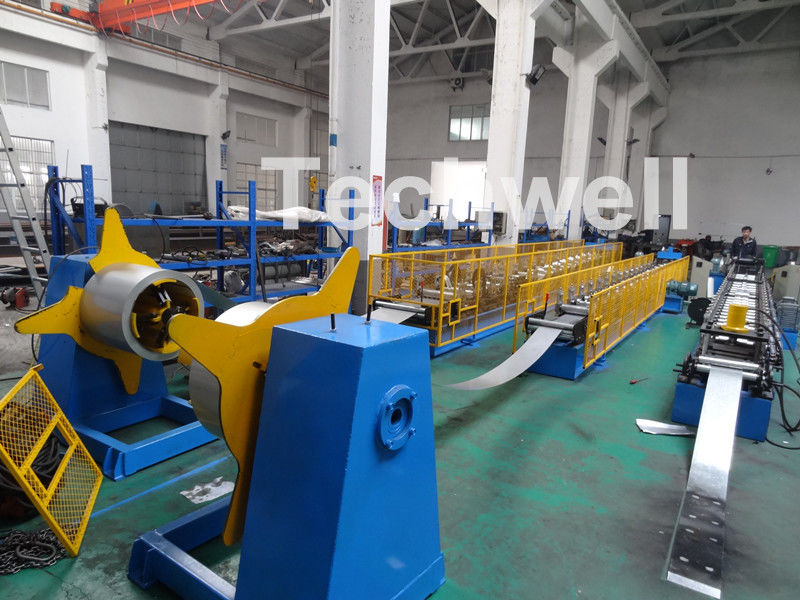

1). Uncoiler Machine



1. Decoiler Type: Manual type uncoiler

2. Weight Capacity of decoiler: 3T (Or according to customer's requiremetns)

3. Manual expanding, passive uncoiling

4. I.D: 508mm

5. Coil Width: Max. 500mm





2). Main Roll Forming Part



1. Forming material thickness: 0.4-0.8mm

2. Forming material type: PPGI, GI.

3. Forming motor: 5.5KW

4. Shaft material: 45# high grade steel tempering treatment (HB220-260)

5. Shaft diameter: Φ70mm

6. Roller material: 45# high grade steel, and roller surface with hard chrome ≥ 0.05mm, HRC48-52

7. Forming speed: about 10-15m/min

8. Forming stations: about 16 stations (depend on final design)

9. Drive type: chain drive

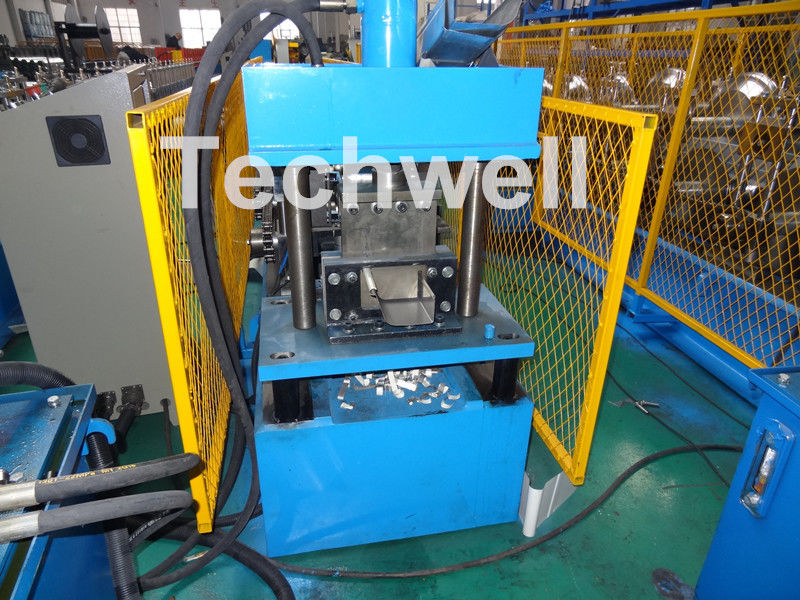

3). Hydraulic Cutting & Hydraulic Station



1. Cutting type: Hydraulic cutting after roll forming

2. When cutting, Machine stop

3. Cutting blades material: Cr12Mov, Quench treatment, HRC58-62

4. Hydraulic power: 4.0KW

5. Cutting tolerance: +/-1.5mm





4). PLC Control System



1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface.

People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.

2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop button on it.





   Main Components



 Decoiler / Uncoiler 1 Unit
 Pinch Feeding 1 Unit
 Main Roll Forming Part 1 Unit
 Hydraulic Cutting 1 Unit
 Hydraulic Station 1 Unit
 PLC Control System 1 Unit
 Support Table 1 Unit





   Applications



Rainwater gutter, k gutter, box gutter , seamless gutter





   Reference Profile Drawing



U Shaped Rainwater Seamless Gutter Machine , Box Gutter Roll Forming Machine





   Competitive Advantages



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

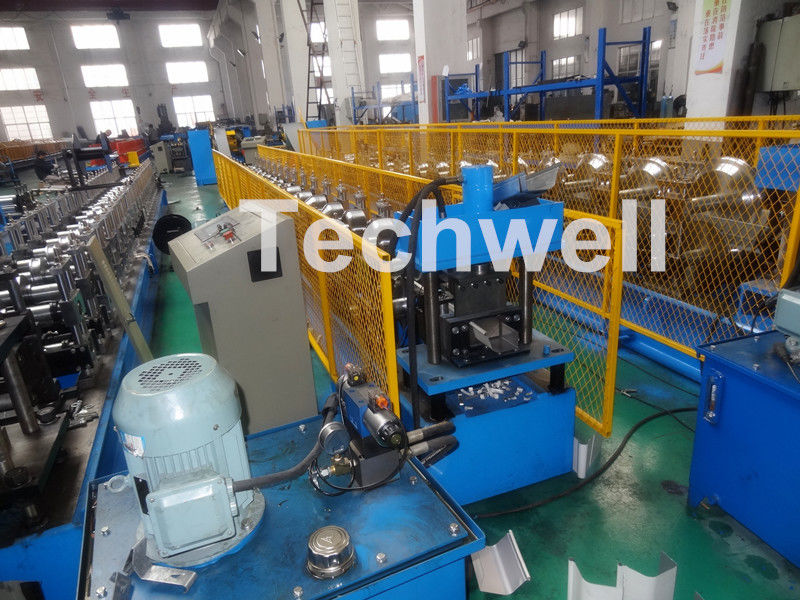

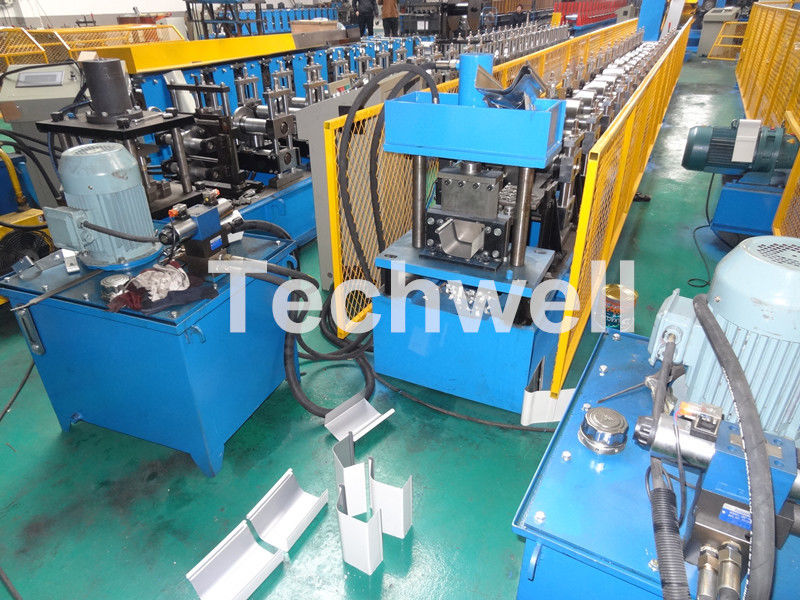

   More Machine Pictures



U Shaped Rainwater Seamless Gutter Machine , Box Gutter Roll Forming Machine
