Detailed Product Description
Sheet Thickness: 0.3-0.8mm Roller Stations: About 18 Stations
Decoiler Type: Manual Or Automatical Type ( Depend On Customer’s Requirement ) Weight Capacity Of Decoiler: 5 Ton
Electrical Control: PLC Frequency Control System With Touch Screen Encoder: OMRON Brand



18 Forming Stations Roof Panel Roll Forming Machine , Double Sheet Roll Forming Machine





   Summary of Double Layer Roll Former



1) This double layer oof sheet roll forming machine adopts coil production material to form 2 different roofing profiles  through 5 Ton manual decoiler, pinch feeding, main roll forming part, Hydraulic cutting, hydraulic station, PLC control system, and Non-power type support table.



2) The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.



3) Forming Speed: about 0-20 m/min ( excluding cutting time);



4) One machine for 2 profiles





   Main Technical Specifications



Item Double Layer Roll Forming Machine
Coil Material Thickness 0.3-0.8mm
Coil width Custom-made, 1000mm or 1200mm or 1250mm
Yield Strength 250-350 Mpa
Material PPGI, Color Steel, GI.
Decoiler / Uncoiler Decoiler Type Manual or Hydraulic or Auto Type
Coil Width Max. 1250mm
I.D 508-610mm
O.D Max. 1500mm
Main Roll Forming Machine Forming Stations 18-22 Stations ( Depend on Final Profiles )
Roller material High grade 45# steel, all treated by CNC precise machines, and coated with 0.05mm hard chrome and polishing treatment
Diameter of shaft 75mm
Shaft material First grade 45# steel, heated and quenched
Drive type steel structure and chain of transmission
Forming speed 0-20m/min
Main power 7.5KW
Manually adjust the spaces and rollers can produce sheet of different in a range
Cutting To Length Device & Hydraulic Station Cutting type Hydraulic cutting
Cutting Die Material Cr12Mov steel, HRC58-62
Cutting power 3KW
Hydraulic Pressure 10-15Mpa
CuttingTolerance 10m+/-1.5mm
Encoder OMRON Brand
PLC Electrical Control Box PLC PANASONIC Brand
Inverter YASKAWA Brand
Touch screen PANASONICE
Operation type Touch screen & Button
Suopport Tables Table type Simple nonpower type
Function To support the finished corrugated panels





   Working Flowing



18 Forming Stations Roof Panel Roll Forming Machine , Double Sheet Roll Forming Machine





   Main Components



  • Decoiler ------------------------------------------------------- 1 Unit
  • Feeding Guide ----------------------------------------------- 1 Unit
  • Main Roll Forming Machine ------------------------------- 1 Unit
  • Hydraulic Cutting Device ----------------------------------- 1 Unit
  • Hydraulic Station --------------------------------------------- 1 Unit
  • PLC Computer Control ------------------------------------- 1 Unit
  • Output Table -------------------------------------------------- 1 Unit



   Reference Profile Drawing



18 Forming Stations Roof Panel Roll Forming Machine , Double Sheet Roll Forming Machine





   Applications



Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal



roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding





   More Machine Pictures

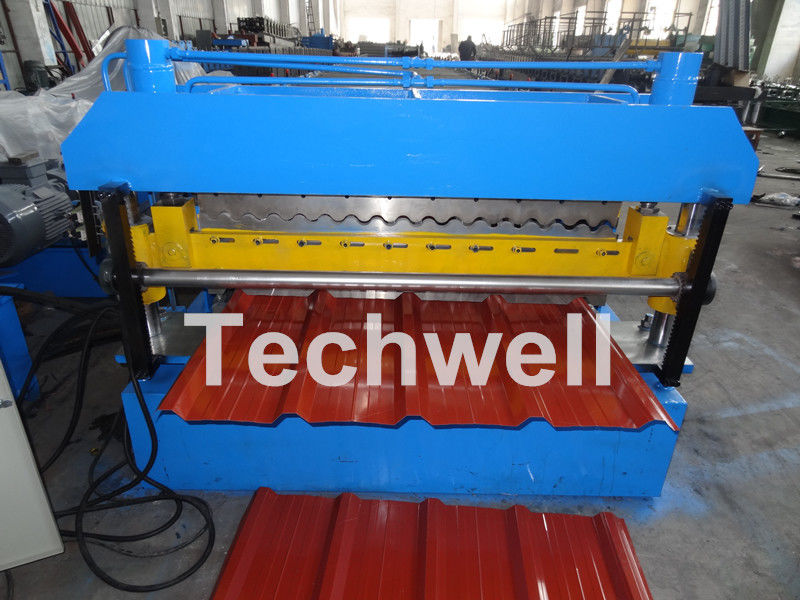

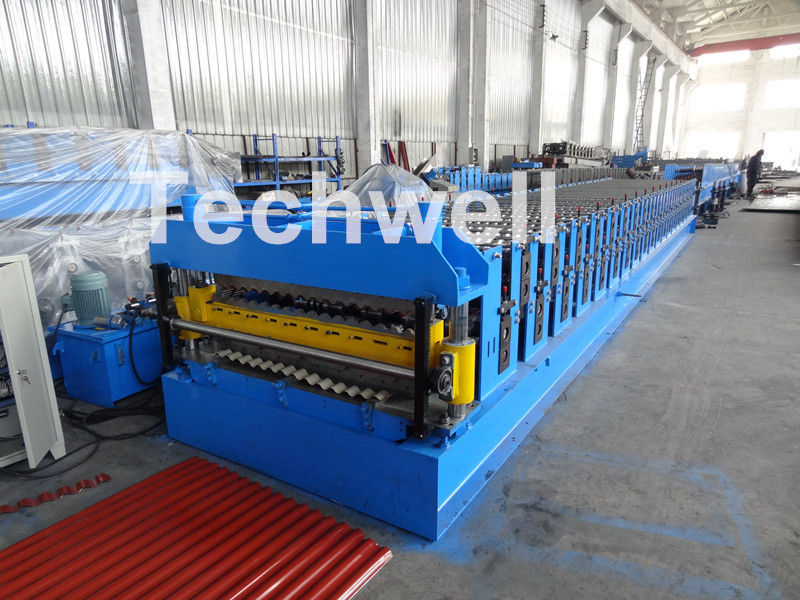

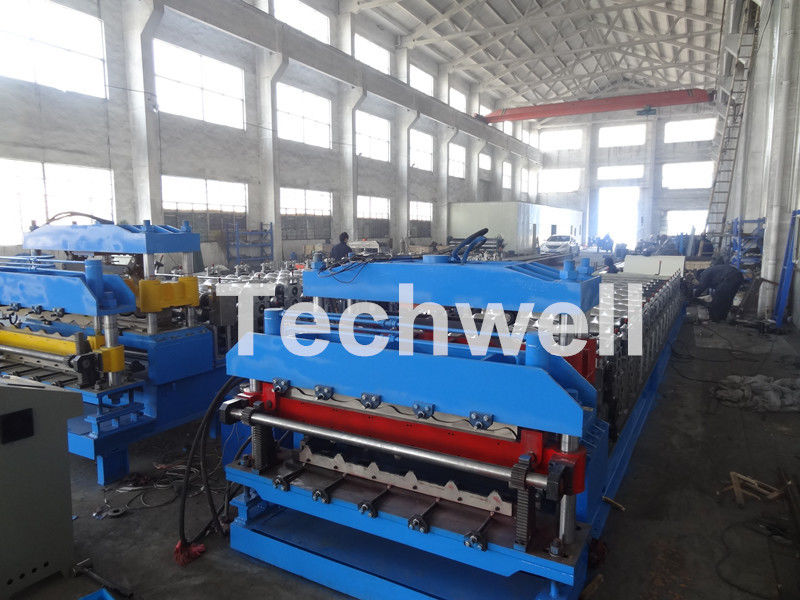

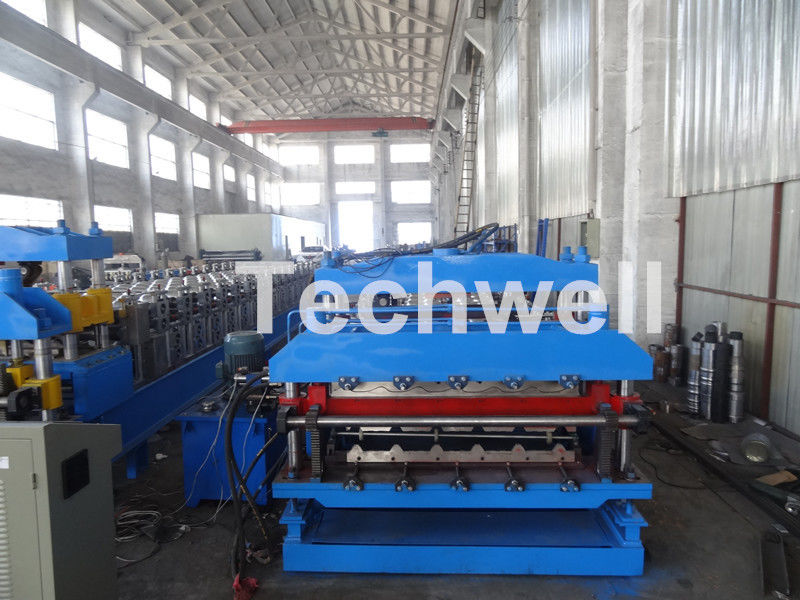

18 Forming Stations Roof Panel Roll Forming Machine , Double Sheet Roll Forming Machine
