0.3 - 0.8mm Thickness Double Layer Roof Panel Roll Forming Machine For Roof Wall Cladding

Name: 0.3 - 0.8mm Thickness Double Layer Roof Panel Roll Forming Machine For Roof Wall Cladding
Brand: TECHWELL
SKU: TW-DLM
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (199 reviews)

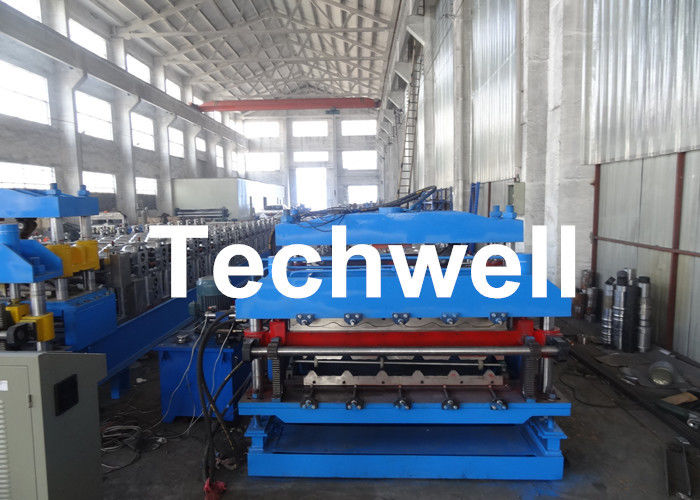

Large Image : 0.3 - 0.8mm Thickness Double Layer Roof Panel Roll Forming Machine For Roof Wall Cladding

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE
Model Number:	TW-DLM

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard packing
Delivery Time:	55-65 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 sets

Contact Now

Detailed Product Description

Steel Thickness:	0.3-0.8mm	Roller Stations:	About 18 Stations
Weight Capacity Of Decoiler:	5T	Cutting:	Hydraulic Cutting Cr12Mov
PLC:	Panasonic	Weight Of Machine:	About 8.5T
High Light:	IBR Roll Forming Machine , roof cladding roll forming machine

0.3 - 0.8mm Thickness Double Layer Roof Panel Roll Forming Machine For Roof Wall Cladding

Details of Double Layer Roof Panel Roll Forming Machine

Material thickness: 0.3-0.8mm
Material width: depend on customer’s requirement
Decoiler Type: manual or automatical type ( depend on customer’s requirement )
Weight Capacity Of Decoiler: 5 Ton
Main Motor Power: 7.5 Kw
Hydraulic Motor Power: 3 Kw
Forming Station: approx 18 & 18 ( depend on profile drawing )
Electrical Control: PLC Frequency Control System with touch screen
PLC: PANASONIC Brand
Encoder: OMRON Brand
Transducer: PANASONIC Brand
Machine Weight: about 8.5 Ton

Work Flowing of Double Layer Roof Panel

Decoiler --- Fedding Guide --- Roll Forming --- Cut-to-length --- Run out table

0.3 - 0.8mm Thickness Double Layer Roof Panel Roll Forming Machine For Roof Wall Cladding 0

Main Component

Decoiler / Uncoiler	1 Unit
Feeding Guide	1 Unit
Main Roll Forming Machine	1 Unit
Hydraulic Cutting Device	1 Unit
Hydraulic Station	1 Unit
PLC Computer Control	1 unit
Output Table	1 Unit

Application

Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal

roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding

Our Advantage

High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

Reference Drawing

0.3 - 0.8mm Thickness Double Layer Roof Panel Roll Forming Machine For Roof Wall Cladding 1

Introduction of Company

0.3 - 0.8mm Thickness Double Layer Roof Panel Roll Forming Machine For Roof Wall Cladding 2

Machine Pictures of Double Layer Roof Panel

0.3 - 0.8mm Thickness Double Layer Roof Panel Roll Forming Machine For Roof Wall Cladding 3
