Metal Stud And Track Roll Forming Machine , Sheet Metal Roll Former For Roof Truss

China Metal Stud And Track Roll Forming Machine , Sheet Metal Roll Former For Roof Truss supplier
Metal Stud And Track Roll Forming Machine , Sheet Metal Roll Former For Roof Truss supplier Metal Stud And Track Roll Forming Machine , Sheet Metal Roll Former For Roof Truss supplier Metal Stud And Track Roll Forming Machine , Sheet Metal Roll Former For Roof Truss supplier Metal Stud And Track Roll Forming Machine , Sheet Metal Roll Former For Roof Truss supplier

Large Image :  Metal Stud And Track Roll Forming Machine , Sheet Metal Roll Former For Roof Truss

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-ST45

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Machine Frame: High Grade Steel Welded And Tempering Treatment Shaft Diameter: Φ 70mm
Shaft Material: 45# High Grade Steel Tempering Treatment (HB220-260) Roller Material: 45# High Grade Steel, And Roller Surface With Hard Chrome ≥ 0.05mm
Forming Speed: 0-15m/min PLC Brand: PANASONIC Brand

C U Stud And Track Cold Roll Forming Machine / Steel Roof Truss Roll Forming Machine For Light Steel Roof Ceiling





   Main Technical Specificatons



1). Material thickness: 0.3-0.7mm, Galvanised coil

2). Material width: depend on customer’s requirement

3). Decoiler Type: manual or automatical type ( depend on customer’s requirement )

4). Main Motor Power: 5.5 Kw

5). Hydraulic Motor Power: 4.0 Kw

6). Forming Station: about 14 ( depend on profile drawing )

7). Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.

8). Main Axis Material: High grade 45#, quenched and heat treatment.

9). Axis Diameter: ¢ 70mm

10). Working Speed: 0-15 m/min

11). Transporting Type: Chain Transmission

12). Heat Treatment of Cutting Blade: HRC 50-60

13). Type of Cutting: Hydraulic cutting

14). Material Of Cutting Blade: C r 12

15). Machine Frame stand: Welded structural steel

16). Electrical Control: PLC Frequency Control System with touch screen

17). PLC: PANASONIC Brand

18). Encoder: OMRON Brand

19). Transducer: PANASONIC Brand





   Reference Profile Drawing & Finished Sample Sheets



Metal Stud And Track Roll Forming Machine , Sheet Metal Roll Former For Roof Truss
Metal Stud And Track Roll Forming Machine , Sheet Metal Roll Former For Roof Truss
Metal Stud And Track Roll Forming Machine , Sheet Metal Roll Former For Roof Truss





   Main Components



Stud Roll Forming Machine Quantity
Decoiler 1 Unit
Feeding guide 1 Unit
Main roll forming machine 1 Unit
Hydraulic cutting device 1 Unit
Hydraulic Station 1 Unit
PLC computer control 1 Unit
Output table 1 Unit

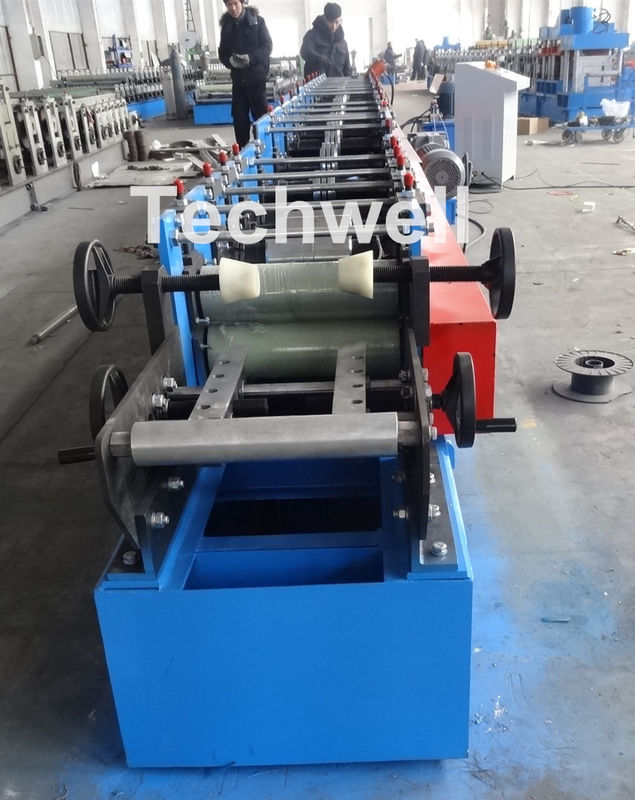

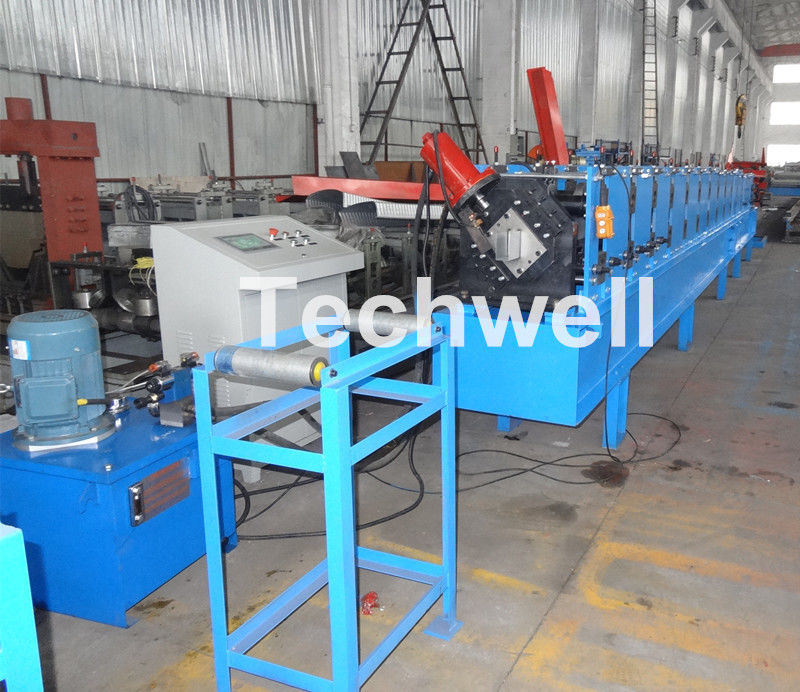

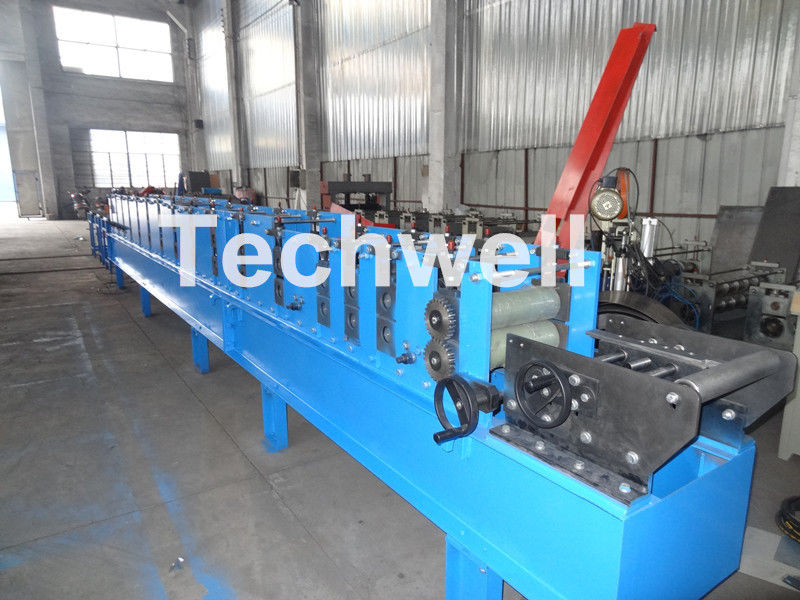

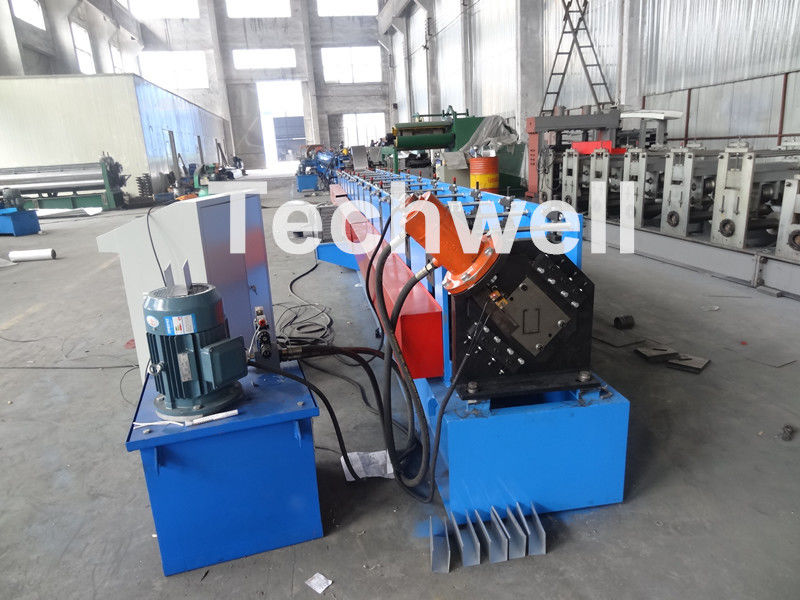

   More Machine Pictures



Metal Stud And Track Roll Forming Machine , Sheet Metal Roll Former For Roof Truss
