Minimalist Steel Tile Roll Forming Machine For Material Thickness 0.2 - 0.75mm

China Minimalist Steel Tile Roll Forming Machine For Material Thickness 0.2 - 0.75mm supplier
Minimalist Steel Tile Roll Forming Machine For Material Thickness 0.2 - 0.75mm supplier Minimalist Steel Tile Roll Forming Machine For Material Thickness 0.2 - 0.75mm supplier Minimalist Steel Tile Roll Forming Machine For Material Thickness 0.2 - 0.75mm supplier

Large Image :  Minimalist Steel Tile Roll Forming Machine For Material Thickness 0.2 - 0.75mm

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-GTM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Tile Profile: Indonesia Tile Profile Material Thickness: 0.2-0.75mm
Forming Station: 15 Main Motor: 5.5KW
Hydraulic Power: 5.5KW PLC: Panasonic Brand


Minimalist Steel Tile Roll Forming Machine For Material Thickness 0.2 - 0.75mm



   Specifications of Steel Tile Roll Forming Machine



  • Material thickness: 0.2-0.75mm,Color Steel, Galvanised coil
  • Material width: depend on customer’s requirement
  • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  • Weight Capacity Of Decoiler: 5 Ton
  • Main Motor Power: 5.5 Kw
  • Hydraulic Motor Power: 11 Kw
  • Forming Station: 13-22 ( depend on profile drawing )
  • Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
  • Main Axis Material: High grade 45#, quenched and heat treatment.
  • Axis Diameter: ¢ 75mm
  • Working Speed: 0-15 m/min
  • Transporting Type: Chain Transmission
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Type of Cutting: Hydraulic cutting
  • Material Of Cutting Blade: C r 12
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Machine Frame stand: Welded structural steel
  • Thickmess of Fame Steel: 18mm
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand
  • Machine Weight: about 8.5 Ton



   Main Components



  1. Decoiler -------------------------------------------------------------------------------------- 1 Unit
  2. Film covering device ---------------------------------------------------------------------- 1 Unit
  3. Feeding guide ------------------------------------------------------------------------------- 1 Unit
  4. Main roll forming machine ---------------------------------------------------------------- 1 Unit
  5. Hydraulic pressing device ---------------------------------------------------------------- 1 Unit
  6. Hydraulic cutting device ------------------------------------------------------------------- 1 Unit
  7. Hydraulic Station ---------------------------------------------------------------------------- 1 Unit
  8. PLC computer control ---------------------------------------------------------------------- 1 Unit
  9. Output table ----------------------------------------------------------------------------------- 1 Unit

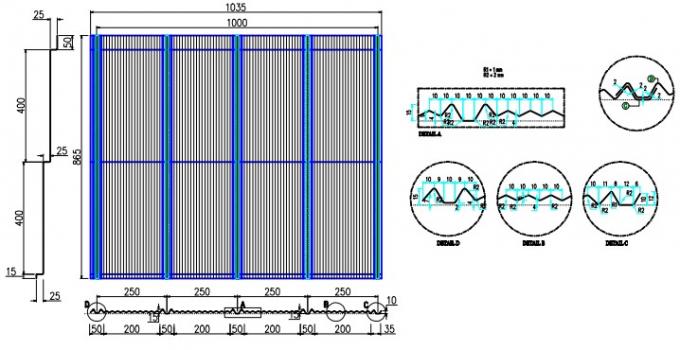

   Tile Profile Drawing





Minimalist Steel Tile Roll Forming Machine For Material Thickness 0.2 - 0.75mm



   Working Flowing



Decoiler ---> Fedding Guide ---> Film Covering ---> Roll Forming ---> Pressing ---> Cut-to-length ---> Run out table



   Application



Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding
