Custom 0.3 - 0.7mm Tile Roll Forming Machine With Double Press Mold And Hydraulic Cutting

Large Image : Custom 0.3 - 0.7mm Tile Roll Forming Machine With Double Press Mold And Hydraulic Cutting

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE
Model Number:	TW-GTM

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard packing
Delivery Time:	55-65 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 sets

Contact Now

Detailed Product Description

Material Thickness:	0.3-0.87mm	Tile Profile Shape:	Customized
Forming Speed:	0-10m/min	Shaft Diameter:	75mm
Forming Station:	13-22, Depend On Tile Profile	Encoder:	Omron Brand
High Light:	roof tile roll forming machine , glazed tile roll forming machine

Custom 0.3 - 0.7mm Tile Roll Forming Machine With Double Press Mold And Hydraulic Cutting

Reference Specifications of Glazed Steel Tile Roll Forming Machine

Material thickness: 0.3-0.7mm,Color Steel, Galvanised coil
Material width: depend on customer’s requirement
Decoiler Type: manual or automatical type ( depend on customer’s requirement )
Weight Capacity Of Decoiler: 5 Ton
Main Motor Power: 5.5 Kw
Hydraulic Motor Power: 11 Kw
Forming Station: 13-22 ( depend on profile drawing )
Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
Main Axis Material: High grade 45#, quenched and heat treatment.
Axis Diameter: ¢ 75mm
Forming Speed: 0-15 m/min
Transporting Type: Chain Transmission
Heat Treatment of Cutting Blade: HRC 50-60
Type of Cutting: Hydraulic cutting
Material Of Cutting Blade: C r 12
Heat Treatment of Cutting Blade: HRC 50-60
Machine Frame stand: Welded structural steel
Thickmess of Fame Steel: 18mm
Electrical Control: PLC Frequency Control System with touch screen
PLC: PANASONIC Brand
Encoder: OMRON Brand
Transducer: PANASONIC Brand
Machine Weight: about 8.5 Ton

Main Components

Decoiler ---------------------------------------------------------------------------- 1 Unit
Film covering device ------------------------------------------------------------ 1 Unit
Feeding guide --------------------------------------------------------------------- 1 Unit
Main roll forming machine ------------------------------------------------------ 1 Unit
Doubl pressing device ----------------------------------------------------------- 1 Unit
Hydraulic cutting device --------------------------------------------------------- 1 Unit
Hydraulic Station ------------------------------------------------------------------ 1 Unit
PLC computer control ------------------------------------------------------------ 1 Unit
Output table ------------------------------------------------------------------------- 1 Unit

Tile Profile Shape

Custom 0.3 - 0.7mm Tile Roll Forming Machine With Double Press Mold And Hydraulic Cutting 0

Custom 0.3 - 0.7mm Tile Roll Forming Machine With Double Press Mold And Hydraulic Cutting 1

Working Flow

Decoiler ---> Fedding Guide ---> Film Covering ---> Roll Forming ---> Double Pressing ---> Cut-to-length ---> Run out table

Application

Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding

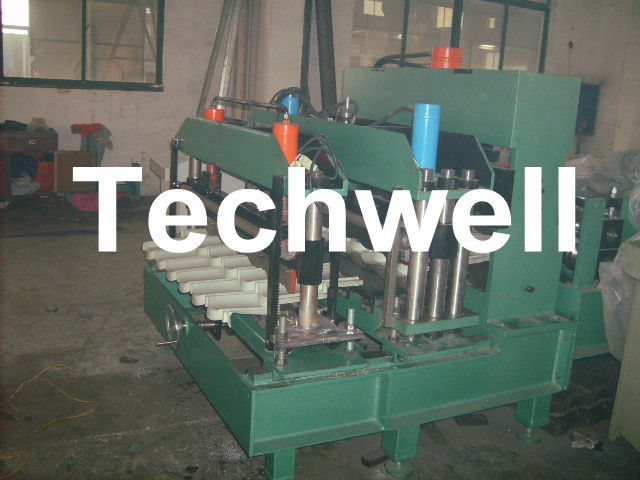

Machine Pictures
