0.4 - 1.0mm U Runner Stud Roll Forming Machine With Guiding Column Forming Structure

0.4 - 1.0mm U Runner Stud Roll Forming Machine With Guiding Column Forming Structure

Stud and Track Roll Forming Machine

Metal Stud Roll Forming Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-ST45

Contact Us

Request A Quote
Product Details
Product Description

0.4 - 1.0mm U Runner Stud Roll Forming Machine With Guiding Column Forming Structure





   Main Specifications of U Runner Roll Forming Machine



  • Material: G.i Coil
  • Material Thickness:0.4-1.0mm
  • Main Power: 4KW
  • Hydraulic power: 4KW
  • Forming Station: about 10 steps ( adopt Italy Technology )
  • Axis Diameter: ¢ 70 mm
  • Forming Speed: 0-15m/min
  • Forming Frame Structure: Guiding Column + Slide Blocks; This forming frame structure design is much high precision than wall plate welding structure
  • PLC Brand: PANASONIC Brand
  • Machine Diameter: about 7000mm(L)x800mm(W)x1300mm (H)
  • Weight of machine: about 4 Ton
  • Voltage: 380V, 3 Phase 50Hz ( or depend on customer’s requirement )

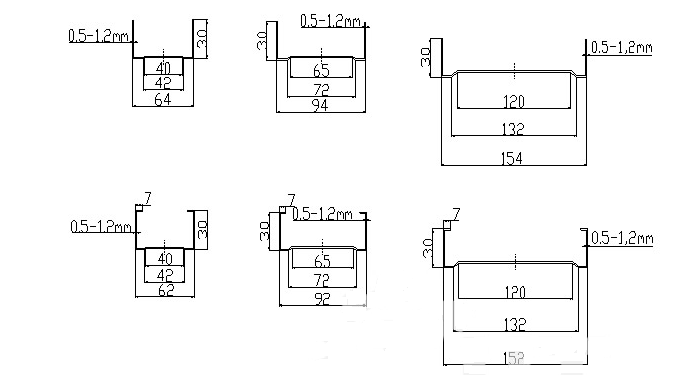

  Reference Drawings



0.4 - 1.0mm U Runner Stud Roll Forming Machine With Guiding Column Forming Structure 0

0.4 - 1.0mm U Runner Stud Roll Forming Machine With Guiding Column Forming Structure 1

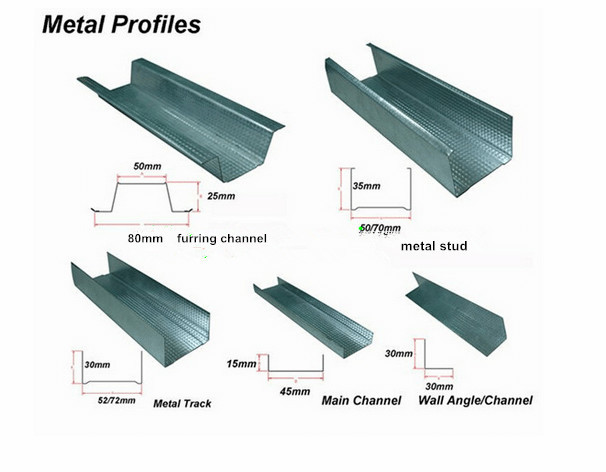

  Applications





Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten,



roof truss, c truss, light weight steel truss...





  Our Advantage



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience



  Machine Picture



0.4 - 1.0mm U Runner Stud Roll Forming Machine With Guiding Column Forming Structure 2

0.4 - 1.0mm U Runner Stud Roll Forming Machine With Guiding Column Forming Structure 3

0.4 - 1.0mm U Runner Stud Roll Forming Machine With Guiding Column Forming Structure 4
