0.4 - 1.0mm Steel Wall Angle Roll Forming Machine With 60mm Axis Diameter

0.4 - 1.0mm Steel Wall Angle Roll Forming Machine With 60mm Axis Diameter
0.4 - 1.0mm Steel Wall Angle Roll Forming Machine With 60mm Axis Diameter 0.4 - 1.0mm Steel Wall Angle Roll Forming Machine With 60mm Axis Diameter 0.4 - 1.0mm Steel Wall Angle Roll Forming Machine With 60mm Axis Diameter 0.4 - 1.0mm Steel Wall Angle Roll Forming Machine With 60mm Axis Diameter

Large Image :  0.4 - 1.0mm Steel Wall Angle Roll Forming Machine With 60mm Axis Diameter

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-ST45
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
High Light:

Steel Stud Roll Forming Machine

,

Metal Stud Roll Forming Machine



0.4 - 1.0mm Steel Wall Angle Roll Forming Machine With 60mm Axis Diameter



  Main Specifications of Wall Angle Roll Forming Machine





  • Material: G.i Coil
  • Material Thickness:0.4-1.0mm
  • Main Power: 4KW
  • Hydraulic power: 4KW
  • Forming Station: about 6 steps ( adopt Italy Technology )
  • Axis Diameter: ¢ 60 mm
  • Forming Speed: 0-15m/min
  • Forming Frame Structure: Guiding Column + Slide Blocks; This forming frame structure design is much high precision than wall plate welding structure
  • PLC Brand: PANASONIC Brand
  • Machine Diameter: about 7000mm(L)x800mm(W)x1300mm (H)
  • Weight of machine: about 4 Ton
  • Voltage: 380V, 3 Phase 50Hz ( or depend on customer’s requirement )

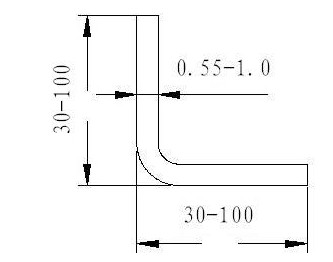

  Reference Drawings















0.4 - 1.0mm Steel Wall Angle Roll Forming Machine With 60mm Axis Diameter 00.4 - 1.0mm Steel Wall Angle Roll Forming Machine With 60mm Axis Diameter 1















  Applications





Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss...





  Our Advantage



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience







  Machine Picture







0.4 - 1.0mm Steel Wall Angle Roll Forming Machine With 60mm Axis Diameter 2

0.4 - 1.0mm Steel Wall Angle Roll Forming Machine With 60mm Axis Diameter 3

0.4 - 1.0mm Steel Wall Angle Roll Forming Machine With 60mm Axis Diameter 4

0.4 - 1.0mm Steel Wall Angle Roll Forming Machine With 60mm Axis Diameter 5







0.4 - 1.0mm Steel Wall Angle Roll Forming Machine With 60mm Axis Diameter 6









  Certificate







0.4 - 1.0mm Steel Wall Angle Roll Forming Machine With 60mm Axis Diameter 7



Tag:

Stud and Track Roll Forming Machine,

Steel Stud Roll Forming Machine,

Metal Stud Roll Forming Machine
