Full Automatic Bearing Steel Half Round Portable Gutter Machine

Full Automatic Bearing Steel Half Round Portable Gutter Machine
Full Automatic Bearing Steel Half Round Portable Gutter Machine

Large Image :  Full Automatic Bearing Steel Half Round Portable Gutter Machine

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-GM5
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 60-70 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Detailed Product Description
High Light:

Half Round Portable Gutter Machine

,

Bearing steel Portable Gutter Machine

,

20m/min gutter roll forming machine

Fully Automatic Portable Half-Round Rain Water Gutter Cold Roll Forming Machine





Part details Item Name Specification
Material Raw material Galvanized steel
Thickness 0.7-1.5mm
Machine Roller station 18-25
Shaft diameter 70 mm
Shaft material 45# steel with 0.05mm chrome
Roller material hardness 30-40 HRC Bearing steel
Machine size About 10×1.7×1.7 m
Machine weight About 7 ton
Machine color As customer' request
Working speed 10-20 m/min
Cutter Hardness 50-65 HRC
Cutting tolerance ± 1 mm
Material Cr 12
Operate Hydraulic cutting
Power Driving way Chain 1.5*2 inch
Main power 7.5*2 kw
Pump power 5.5 kw
Voltage

380v/50HZ,3P or customize

as customer' request

Control system PLC brand Delta made in Twaiwan
Screen Touchable screen
Language Chinese and English or add language as customer need
Decoiler Operation Manual
Weight capicatity 3 ton
Price Free as gift
Receiving table Operation Manual
Length 3 m
Price Free as gift








  Main Components







  • Decoiler ---------------------------------------------- 1 Unit
  • Feeding guide ---------------------------------------- 1 Unit
  • main roll forming machine ---------------------------- 1 Unit
  • Hydraulic cutting device ------------------------------ 1 Unit
  • Hydraulic Station ------------------------------------- 1 Unit
  • PLC computer control -------------------------------- 1 Unit
  • Output table ----------------------------------------- 1 Unit









  Working Flow






Decoiler--> Coil sheet guiding and feeding --> Roll forming machine --> Cut to length --> Out-put Table







  Gutter Profile Drawing







Full Automatic Bearing Steel Half Round Portable Gutter Machine 0



Full Automatic Bearing Steel Half Round Portable Gutter Machine 1











  Applications





Rainwater gutter, k gutter, half round gutter, box gutter ,seamless gutter





Full Automatic Bearing Steel Half Round Portable Gutter Machine 2

Full Automatic Bearing Steel Half Round Portable Gutter Machine 3

Full Automatic Bearing Steel Half Round Portable Gutter Machine 4









  Our Advantage





  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

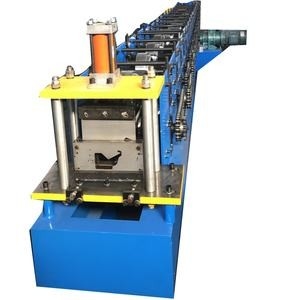

  Gutter Machine Pictures









Full Automatic Bearing Steel Half Round Portable Gutter Machine 5

Full Automatic Bearing Steel Half Round Portable Gutter Machine 6













  Factory Pictures









Full Automatic Bearing Steel Half Round Portable Gutter Machine 7

Full Automatic Bearing Steel Half Round Portable Gutter Machine 8

Full Automatic Bearing Steel Half Round Portable Gutter Machine 9









Full Automatic Bearing Steel Half Round Portable Gutter Machine 10









  Certificate









Full Automatic Bearing Steel Half Round Portable Gutter Machine 11
