Hydraulic Cutting Roof Ridge Cap Roll Forming Machine With PLC Control System

Hydraulic Cutting Roof Ridge Cap Roll Forming Machine With PLC Control System

  Main Specifications of Roof Ridge Cap Roll Forming Machine

• Material thickness: 0.3-0.7mm
• Material width: depend on customer’s requirement
• Decoiler Type: manual or automatical type ( depend on customer’s requirement )
• Weight Capacity Of Decoiler: 5 Ton
• Main Motor Power: 5.5 Kw
• Hydraulic Motor Power: 7.5 Kw
• Forming Station: approx 15 ( depend on profile drawing )
• Axis Diameter: ¢ 75mm
• Working Speed: 0-15 m/min
• Transporting Type: Chain Transmission
• Heat Treatment of Cutting Blade: HRC 50-60
• Type of Cutting: Hydraulic cutting
• Electrical Control: PLC Frequency Control System with touch screen
• PLC: PANASONIC Brand
• Encoder: OMRON Brand
• Transducer: PANASONIC Brand
• Machine Weight: about 5 Ton

  Working Flow

Decoiler --- Fedding Guide --- Roll Forming --- Pressing --- Cut-to-length --- Run out table

  Main Components

• Decoiler ---------------------------------------------- 1 Unit
• Feeding guide ---------------------------------------- 1 Unit
• Main roll forming machine ---------------------------- 1 Unit
• Hydraulic pressing device ---------------------------- 1 Unit
• Hydraulic cutting device ------------------------------ 1 Unit
• Hydraulic Station ------------------------------------- 1 Unit
• PLC computer control -------------------------------- 1 Unit
• Output table ----------------------------------------- 1 Unit

  Reference Drawings

  Application

Roof ridge cap, ridge cap, ridge tile; ridge valley; ridge flashing; valley flashing; top hat cap, top ridge cap.

  Our Advantage

• Top Quality
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

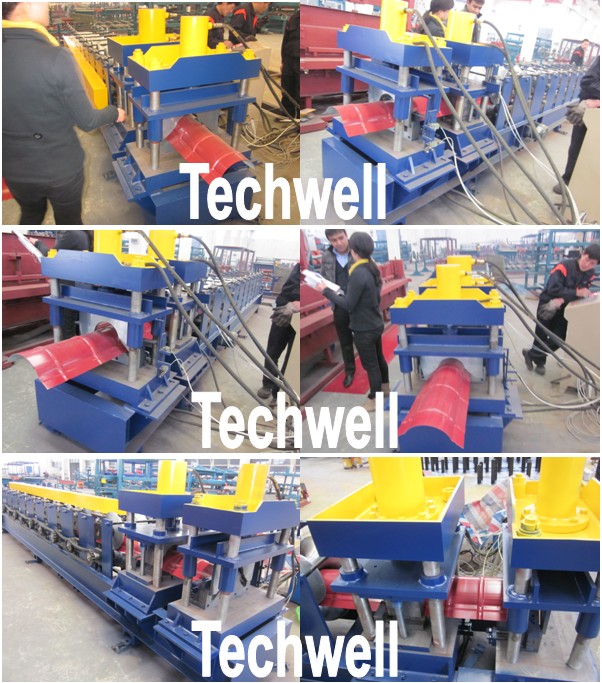

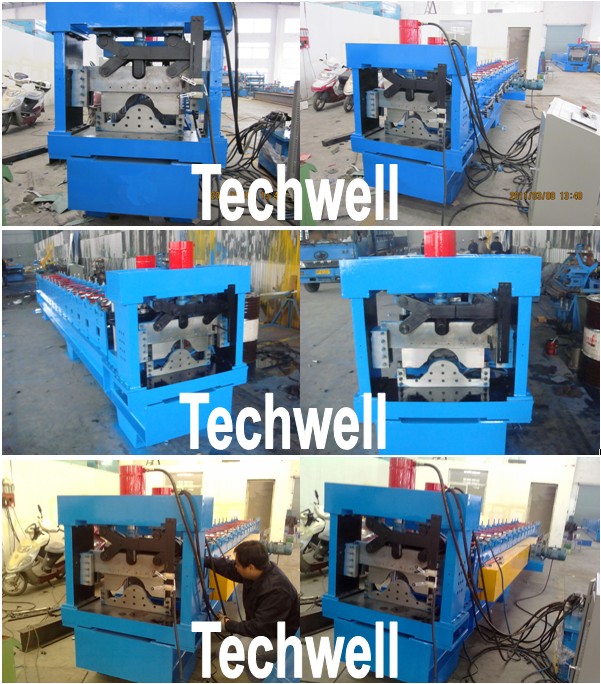

  Machine Pictures
