Manual / Automatical Decoiler Top Hat Cap / Ridge Flashing Roll Forming Machine

Manual / Automatical Decoiler Top Hat Cap / Ridge Flashing Roll Forming Machine

glazed tile roll forming machine

ridge cap roll forming machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-RCM

Contact Us

Request A Quote
Product Details
Aplication:
Ridge Cap Roofing Sheet
Material Type:
GI, PPGI
Control System:
Panasonic PLC Control With Touch Screen
Material Of Shaft:
High Grade 45# Steel With Heat Treatment.
Material Of Roller:
High Grade 45# Steel, All Treated By CNC Precise Machines, And Coated With 0.05mm Hard Chrome And Polishing Treatment.
Forming Stands:
About 15 Groups ( Depend On Final Design )
Product Description

Manual / Automatical Decoiler Top Hat Cap / Ridge Flashing Roll Forming Machine




  Application of Ridge Flashing Roll Forming Machine





Roof ridge cap, ridge cap, ridge tile; ridge valley; ridge flashing; valley flashing; top hat cap, top ridge cap.







  Main Specifications





  • Material thickness: 0.3-0.7mm
  • Material width: depend on customer’s requirement
  • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  • Weight Capacity Of Decoiler: 5 Ton
  • Main Motor Power: 5.5 Kw
  • Hydraulic Motor Power: 7.5 Kw
  • Forming Station: approx 15 ( depend on profile drawing )
  • Axis Diameter: ¢ 75mm
  • Working Speed: 0-15 m/min
  • Transporting Type: Chain Transmission
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Type of Cutting: Hydraulic cutting
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand
  • Machine Weight: about 5 Ton





  Working Flow




Decoiler --- Fedding Guide --- Roll Forming --- Pressing --- Cut-to-length --- Run out table





  Main Components





  • Decoiler -------------------------------------------------- 1 Unit
  • Feeding guide ------------------------------------------- 1 Unit
  • Main roll forming machine ---------------------------- 1 Unit
  • Hydraulic pressing device ---------------------------- 1 Unit
  • Hydraulic cutting device ------------------------------- 1 Unit
  • Hydraulic Station ---------------------------------------- 1 Unit
  • PLC computer control --------------------------------- 1 Unit
  • Output table ---------------------------------------------- 1 Unit





  Reference Drawings









Manual / Automatical Decoiler Top Hat Cap / Ridge Flashing Roll Forming Machine 0

Manual / Automatical Decoiler Top Hat Cap / Ridge Flashing Roll Forming Machine 1





  Our Advantage





  • Top Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

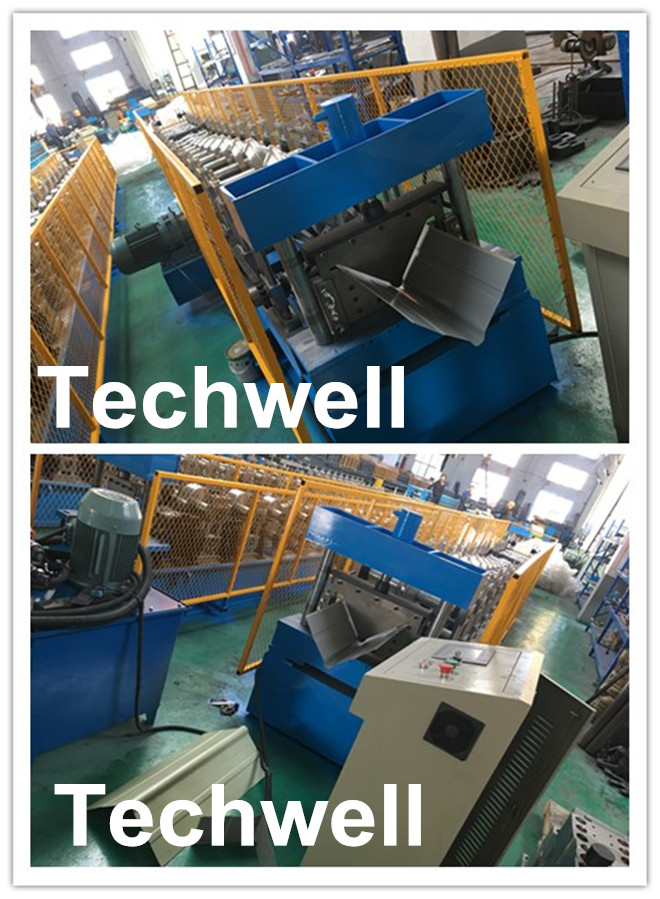

  Machine Pictures



Manual / Automatical Decoiler Top Hat Cap / Ridge Flashing Roll Forming Machine 2



   Contact of WUXI TECHWELL



Company Wuxi Techwell Machinery Co.,Ltd
Website

www.wxtechwell.com

www.cold-rollformingmachine.com

Email / Skype sales@wxtechwell.com
Mob / Whatsapp +86-15861597732 (Miss Lemon)







Send your inquiry directly to us
