High Grade 45# Hydraulic Cutting Ridge Tile Roll Forming Machine With PLC Control

High Grade 45# Hydraulic Cutting Ridge Tile Roll Forming Machine With PLC Control

   Main Specifications

• Material thickness: 0.3-0.7mm
• Material width: depend on customer’s requirement
• Decoiler Type: manual or automatical type ( depend on customer’s requirement )
• Weight Capacity Of Decoiler: 5 Ton
• Main Motor Power: 5.5 Kw
• Hydraulic Motor Power: 7.5 Kw
• Forming Station: approx 15 ( depend on profile drawing )
• Axis Diameter: ¢ 75mm
• Working Speed: 0-15 m/min
• Transporting Type: Chain Transmission
• Heat Treatment of Cutting Blade: HRC 50-60
• Type of Cutting: Hydraulic cutting
• Electrical Control: PLC Frequency Control System with touch screen
• PLC: PANASONIC Brand
• Encoder: OMRON Brand
• Transducer: PANASONIC Brand
• Machine Weight: about 5 Ton

   Working Flow

Decoiler --- Fedding Guide --- Roll Forming --- Pressing --- Cut-to-length --- Run out table

   Components

• Decoiler ------------------------------------------------------------------------------------------- 1 Unit
• Feeding guide ----------------------------------------------------------------------------------- 1 Unit
• Main roll forming machine -------------------------------------------------------------------- 1 Unit
• Hydraulic pressing device -------------------------------------------------------------------- 1 Unit
• Hydraulic cutting device ----------------------------------------------------------------------- 1 Unit
• Hydraulic Station -------------------------------------------------------------------------------- 1 Unit
• PLC computer control -------------------------------------------------------------------------- 1 Unit
• Output table --------------------------------------------------------------------------------------- 1 Unit

   Roof Ridge Cap Profile

   Applications

Roof ridge cap, ridge cap, ridge tile; ridge valley; ridge flashing; valley flashing; top hat cap, top ridge cap.

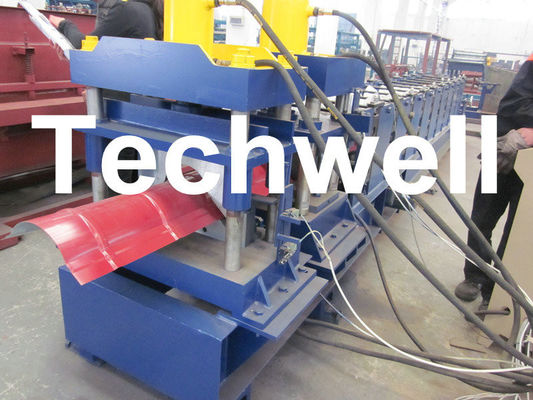

   Machine Pictures
