PLC Control Step Tile Roll Forming Machine for Glazed Tile , Roof Tile , Metal Roof Tile

PLC Control Step Tile Roll Forming Machine for Glazed Tile , Roof Tile , Metal Roof Tile

roof tile roll forming machine

ridge cap roll forming machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-GTM

Contact Us

Request A Quote
Product Details
Profile Shape:
Step Glazed Tile Profile
Coil Thickness:
0.3-0.6mm
Coil Width:
914, 1000, 1200 Or Customized
Drive Type:
Chain Drive
Forming Struction:
Guiding Column
Forming Speed:
0-15m/min
Product Description



PLC Control Step Tile Roll Forming Machine for Glazed Tile , Roof Tile , Metal Roof Tile



   A). Main Features of Tile Roof Roll Former



  • This Glazed Step Tile Roll Forming Machine can rollform metal roof step tiles. After roll formed by this glazed step roof tile roll forming machine, the surface of metal roof glazed tile is very smooth and beautiful without any scratch on the surface of tile profile sheets.
  • The Steel Glazed Roof Step Tile Roll Forming Machine is with fully automatic control system with PLC.
  • Length, quantity of sheets is adjustable.
  • Rollforming process: Decoiler, Rollforming, Pressing & Cut to length.
  • Easy operation: Key in the length and quantity on the control panel.
  • 1 Year warranty, lifelong time service.
  • We also can do a custom roll forming machine, we can design machines according to your specifications and profile drawings, all our machines are customized.



   B). Main Specifications of Tile Roof Roll Former



 Machine Name  Step Roof Tile Roll Forming Machine
 Material  Thickness                             0.3-0.7mm
 Coil width  Custom-made,
 Yield Strength             250-300 Mpa
 Material  PPGI, Color Steel, GI.
 Decoiler / Uncoiler  Uncoiler Type  Manual or Hydraulic or Auto Type
 Coil Width  Max. 1250mm
 I.D  508-610mm
 O.D  Max. 1500mm
 Roof Tile Forming Machine    Forming Stations  13-22 Stations ( Depend on Profiles )
 Roller material   45# steel, surface coated with 0.05mm hard  chrome
 Diameter of shaft   76mm
 Shaft material  High grade 45# steel
 Drive type  Chain transmission
 Forming speed  0-15m/min
 Main power  5.5KW
 Pressing Device  Pressing Type  Hydraulic type pressing
 Pressing Mould  Cr12 Mov steel, HRC58-62
 Cutting Device                        Cutting type  Hydraulic cutting
 Cutting Die Material  Cr12Mov steel, HRC58-62
 CuttingTolerance  10m+/-1.5mm
 Encoder  OMRON Brand
 PLC Electrical Control Board                  PLC  PANASONIC Brand
 Inverter  YASKAWA Brand
 Touch screen  PANASONICE
 Operation type  Touch screen & Button
 Hydraulic Station  Hydraulic station  Famous Chinese brand
 Hydraulic Power  5.5KW
 Runout Tables  Table type  Simple nonpower type
 Function  To support the finished panels



   C). Main Components of Tile Roof Roll Former



 Decoiler / Uncoiler        1 Unit
 Feeding Guide  1 Unit

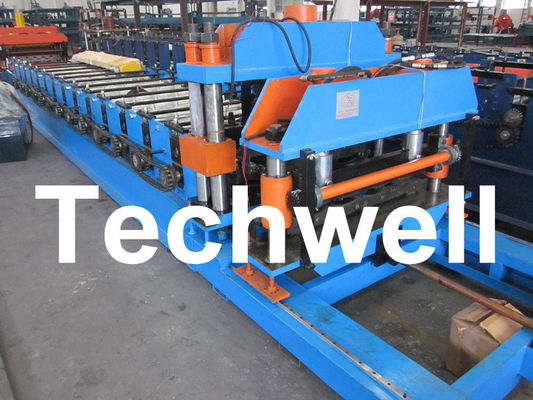

 Main Roof Step Tile Roll Forming Machine                                     1 Unit
 Hydraulic Pressing for Step  1 Unit
 Hydraulic Cutting System                            1 Unit
 Hydraulic Station  1 Unit
 PLC Computer Control Box  1 Unit
 Support Tables  2 Units



   D). Finished Tile of Tile Roof Roll Former
