High Speed 0 - 25m/min Metal Stud and Track Roll Forming Machine TW-ST45

Large Image : High Speed 0 - 25m/min Metal Stud and Track Roll Forming Machine TW-ST45

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE
Model Number:	TW-ST45

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard packing
Delivery Time:	55-65 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 sets

Contact Now

Detailed Product Description

High Light:

Steel Stud Roll Forming Machine

Metal Stud Roll Forming Machine

High Speed 0 - 25m/min Metal Stud and Track Roll Forming Machine TW-ST45

Main Specifications of Stud Track Roll Forming Machine

Material: G.i Coil
Material Thickness:0.4-1.0mm
Main Power: 4KW
Hydraulic power: 4KW
Forming Station: about 10 steps ( adopt Italy Technology )
Axis Diameter: ¢ 70 mm
Forming Speed: 0-15m/min
Forming Frame Structure: Guiding Column + Slide Blocks; This forming frame structure design is much high precision than wall plate welding structure
PLC Brand: PANASONIC Brand
Machine Diameter: about 7000mm(L)x800mm(W)x1300mm (H)
Weight of machine: about 4 Ton
Voltage: 380V, 3 Phase 50Hz ( or depend on customer’s requirement )

Reference Drawings

High Speed 0 - 25m/min Metal Stud and Track Roll Forming Machine TW-ST45 0

High Speed 0 - 25m/min Metal Stud and Track Roll Forming Machine TW-ST45 1

High Speed 0 - 25m/min Metal Stud and Track Roll Forming Machine TW-ST45 2

High Speed 0 - 25m/min Metal Stud and Track Roll Forming Machine TW-ST45 3

High Speed 0 - 25m/min Metal Stud and Track Roll Forming Machine TW-ST45 4

High Speed 0 - 25m/min Metal Stud and Track Roll Forming Machine TW-ST45 5

Applications

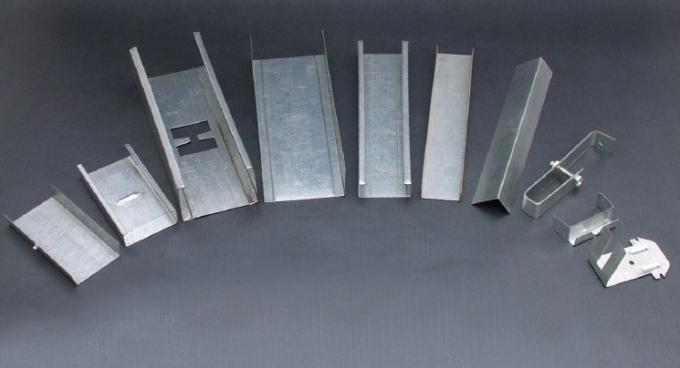

Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss...

Our Advantage

High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

Machine Picture

High Speed 0 - 25m/min Metal Stud and Track Roll Forming Machine TW-ST45 6

High Speed 0 - 25m/min Metal Stud and Track Roll Forming Machine TW-ST45 7

High Speed 0 - 25m/min Metal Stud and Track Roll Forming Machine TW-ST45 8

High Speed 0 - 25m/min Metal Stud and Track Roll Forming Machine TW-ST45 9

High Speed 0 - 25m/min Metal Stud and Track Roll Forming Machine TW-ST45 10

Certificate

High Speed 0 - 25m/min Metal Stud and Track Roll Forming Machine TW-ST45 11
