G.i Coil Material Metal Roof Truss Stud Roll Forming Machine TW-ST45

G.i Coil Material Metal Roof Truss Stud Roll Forming Machine TW-ST45

Stud and Track Roll Forming Machine

Steel Stud Roll Forming Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-ST45

Contact Us

Request A Quote
Product Details
Product Description




G.i Coil Material Metal Roof Truss Stud Roll Forming Machine TW-ST45








  Main Specifications of Roof Truss Roll Forming Machine



  • Material: G.i Coil
  • Material Thickness:0.4-1.0mm
  • Main Power: 4KW
  • Hydraulic power: 4KW
  • Forming Station: about 10 steps ( adopt Italy Technology )
  • Axis Diameter: ¢ 70 mm
  • Forming Speed: 0-15m/min
  • Forming Frame Structure: Guiding Column + Slide Blocks; This forming frame structure design is much high precision than wall plate welding structure
  • PLC Brand: PANASONIC Brand
  • Machine Diameter: about 7000mm(L)x800mm(W)x1300mm (H)
  • Weight of machine: about 4 Ton
  • Voltage: 380V, 3 Phase 50Hz ( or depend on customer’s requirement )

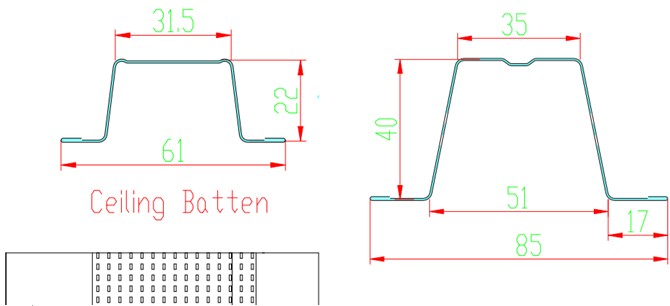

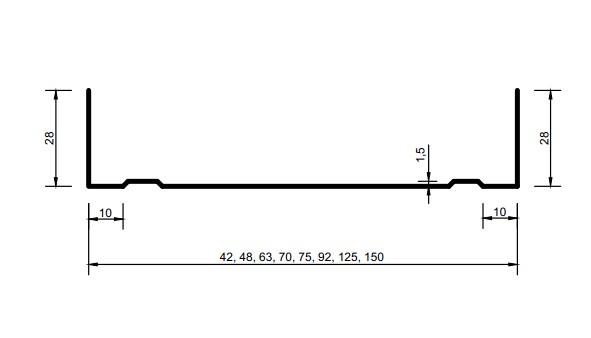

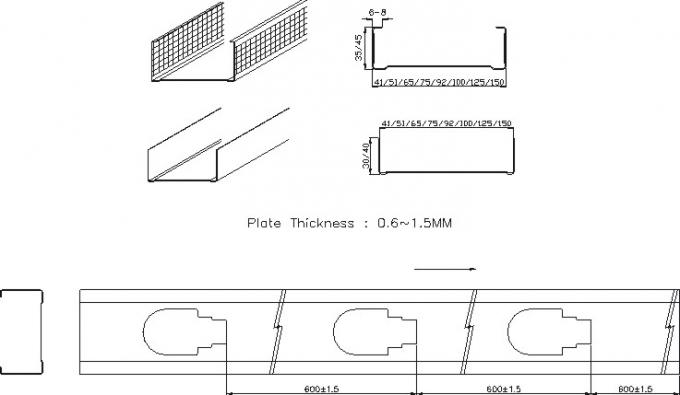

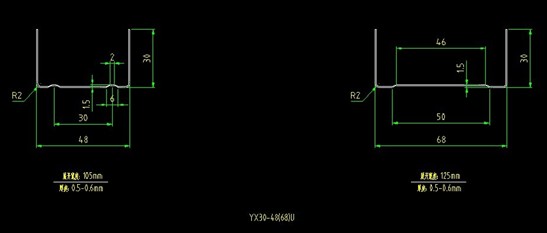

  Reference Drawings







G.i Coil Material Metal Roof Truss Stud Roll Forming Machine TW-ST45 0

G.i Coil Material Metal Roof Truss Stud Roll Forming Machine TW-ST45 1

G.i Coil Material Metal Roof Truss Stud Roll Forming Machine TW-ST45 2






G.i Coil Material Metal Roof Truss Stud Roll Forming Machine TW-ST45 3

G.i Coil Material Metal Roof Truss Stud Roll Forming Machine TW-ST45 4

G.i Coil Material Metal Roof Truss Stud Roll Forming Machine TW-ST45 5









  Applications





Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss...





  Our Advantage



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience







  Machine Picture







G.i Coil Material Metal Roof Truss Stud Roll Forming Machine TW-ST45 6

G.i Coil Material Metal Roof Truss Stud Roll Forming Machine TW-ST45 7

G.i Coil Material Metal Roof Truss Stud Roll Forming Machine TW-ST45 8

G.i Coil Material Metal Roof Truss Stud Roll Forming Machine TW-ST45 9







G.i Coil Material Metal Roof Truss Stud Roll Forming Machine TW-ST45 10









  Certificate







G.i Coil Material Metal Roof Truss Stud Roll Forming Machine TW-ST45 11
