Roof Ceiling Batten, Omega Channel Roll Forming Machine For Furring Channel

Roof Ceiling Batten, Omega Channel Roll Forming Machine For Furring Channel

Stud and Track Roll Forming Machine

Metal Stud Roll Forming Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-ST45

Contact Us

Request A Quote
Product Details
Product Description




Roof Ceiling Batten, Omega Channel Roll Forming Machine For Furring Channel






   Main Specifications of Omega Channel Roll Forming Machine





  • Material: G.i Coil
  • Material Thickness:0.4-1.0mm
  • Main Power: 4KW
  • Hydraulic power: 4KW
  • Forming Station: about 10 steps ( adopt Italy Technology )
  • Axis Diameter: ¢ 70 mm
  • Forming Speed: 0-15m/min
  • Forming Frame Structure: Guiding Column + Slide Blocks; This forming frame structure design is much high precision than wall plate welding structure
  • PLC Brand: PANASONIC Brand
  • Machine Diameter: about 7000mm(L)x800mm(W)x1300mm (H)
  • Weight of machine: about 4 Ton
  • Voltage: 380V, 3 Phase 50Hz ( or depend on customer’s requirement )







  Reference Drawings











Roof Ceiling Batten, Omega Channel Roll Forming Machine For Furring Channel 0

Roof Ceiling Batten, Omega Channel Roll Forming Machine For Furring Channel 1

Roof Ceiling Batten, Omega Channel Roll Forming Machine For Furring Channel 2

Roof Ceiling Batten, Omega Channel Roll Forming Machine For Furring Channel 3











  Applications





Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss...





  Our Advantage



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

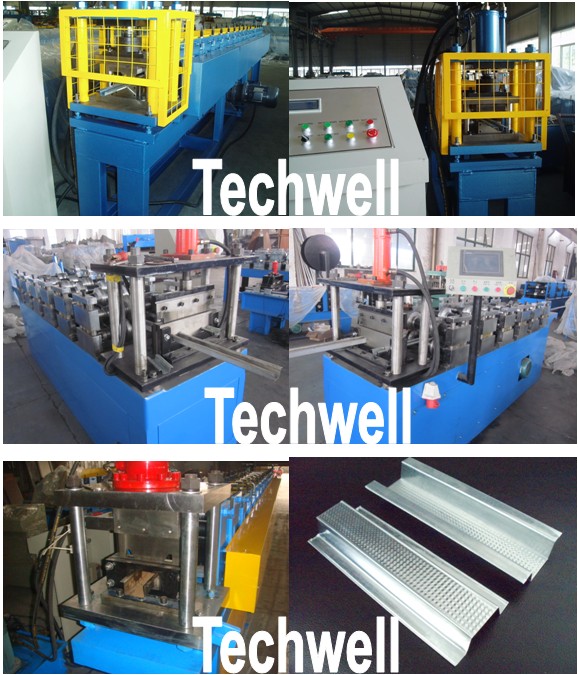

  Machine Picture







Roof Ceiling Batten, Omega Channel Roll Forming Machine For Furring Channel 4

Roof Ceiling Batten, Omega Channel Roll Forming Machine For Furring Channel 5

Roof Ceiling Batten, Omega Channel Roll Forming Machine For Furring Channel 6

Roof Ceiling Batten, Omega Channel Roll Forming Machine For Furring Channel 7

Roof Ceiling Batten, Omega Channel Roll Forming Machine For Furring Channel 8







Roof Ceiling Batten, Omega Channel Roll Forming Machine For Furring Channel 9









  Certificate







Roof Ceiling Batten, Omega Channel Roll Forming Machine For Furring Channel 10
