24 Forming Station Decking Floor Roll Forming Machine With PLC Control System

Name: 24 Forming Station Decking Floor Roll Forming Machine With PLC Control System
Brand: TECHWELL
SKU: TW-FD1250
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (177 reviews)

Large Image : 24 Forming Station Decking Floor Roll Forming Machine With PLC Control System

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE
Model Number:	TW-FD1250

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard packing
Delivery Time:	55-65 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 sets

Contact Now

Detailed Product Description

High Light:

Deck Roll Forming Machine

Floor Deck Roll Forming Machine

24 Forming Station Decking Floor Roll Forming Machine With PLC Control System

Main Specifications of Decking Floor Roll Forming Machine

Material Spec: Galvanized steel sheet
Thickness of Coil Sheet: 0.8 --1.2 mm
Main Motor Power of Floor decking roll forming machine: 18.5kw
Forming Speed: 10--12m/min
Hydraulic Station Power: 4kw
Quantity of Stands: About 24 groups
Hydraulic Pressure: 10~12Mpa
Controlling System: PLC
Index Error of Length: 10m±1.5mm
Total Weight: About 1800kg
Voltage: 380V 3 phase 50Hz or at buyers requirement

Main Components

Decoiler ----------------------------------------------- 1 Unit
Feeding ----------------------------------------------- 1 Unit
Main roll forming machine ----------------------------- 1 Unit
Hydraulic cutting device ------------------------------- 1 Unit
Hydraulic Station ------------------------------------- 1 Unit
PLC computer control -------------------------------- 1 Unit
Output table ----------------------------------------- 1 Unit

24 Forming Station Decking Floor Roll Forming Machine With PLC Control System 0

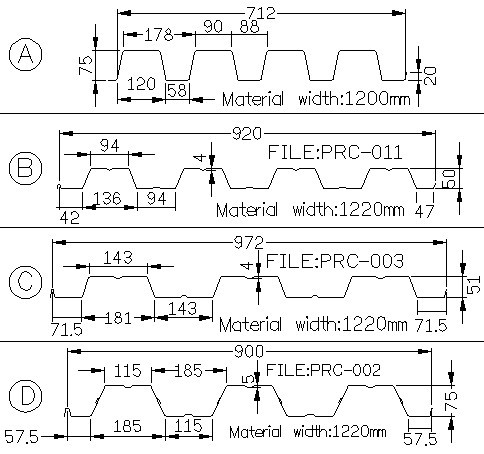

Reference Drawings

24 Forming Station Decking Floor Roll Forming Machine With PLC Control System 1

24 Forming Station Decking Floor Roll Forming Machine With PLC Control System 2

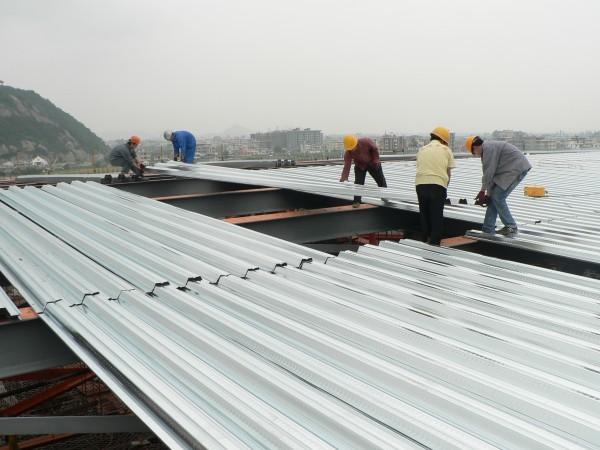

Application

Steel floor deck, metal deck, steel deck, metal decking sheet, steel structure floor deck...

24 Forming Station Decking Floor Roll Forming Machine With PLC Control System 3

Our Advantage

High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

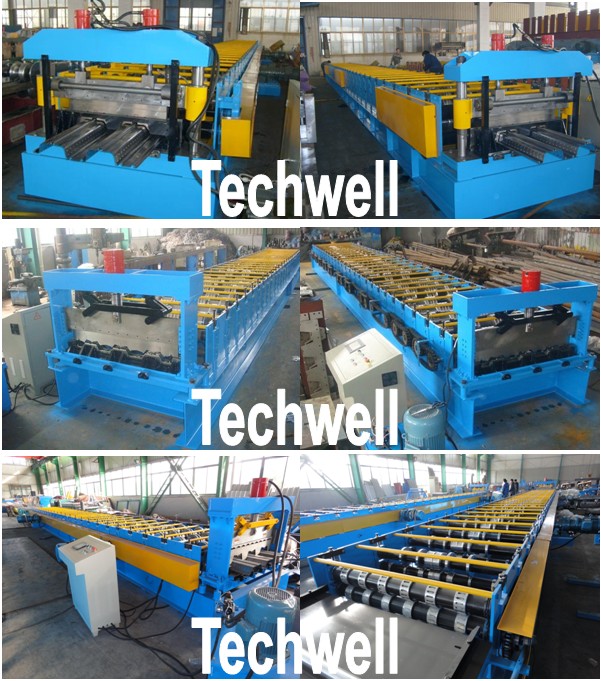

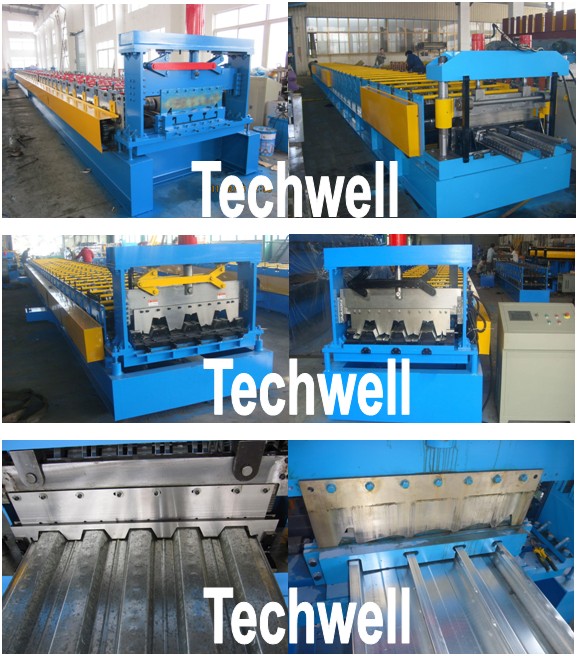

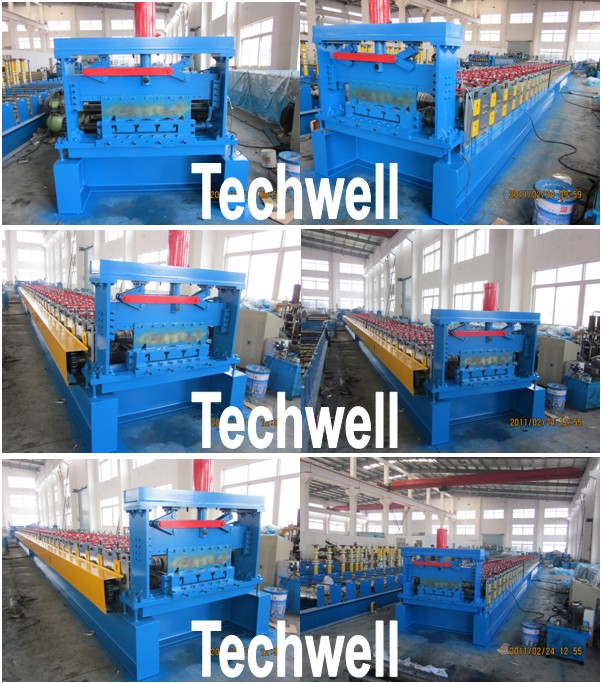

Machine Picture

24 Forming Station Decking Floor Roll Forming Machine With PLC Control System 4

24 Forming Station Decking Floor Roll Forming Machine With PLC Control System 5

24 Forming Station Decking Floor Roll Forming Machine With PLC Control System 6

Factory Pictures

24 Forming Station Decking Floor Roll Forming Machine With PLC Control System 7

24 Forming Station Decking Floor Roll Forming Machine With PLC Control System 8

24 Forming Station Decking Floor Roll Forming Machine With PLC Control System 9

24 Forming Station Decking Floor Roll Forming Machine With PLC Control System 10

Certificate

24 Forming Station Decking Floor Roll Forming Machine With PLC Control System 11
