High Precision Steel Structure Floor Deck Roll Forming Machine For Metal Decking Sheet

High Precision Steel Structure Floor Deck Roll Forming Machine For Metal Decking Sheet

Deck Roll Forming Machine

Floor Deck Roll Forming Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-FD1250

Contact Us

Request A Quote
Product Details
Cutting Length Tolerance:
10m+/-1.5mm
Total Weight:
1800Kg
Voltage:
380V, 50Hz, 3Phase
Main Motor Power:
About 18.5Kw
Forming Stations:
24 Stations
Thickness:
0.8-1.2mm
Product Description




High Precision Steel Structure Floor Deck Roll Forming Machine For Metal Decking Sheet







  Main Specifications of Floor Deck Roll Forming Machine





  • Material Spec: Galvanized steel sheet
  • Thickness of Coil Sheet: 0.8 --1.2 mm
  • Main Motor Power of Floor decking roll forming machine: 18.5kw
  • Forming Speed: 10--12m/min
  • Hydraulic Station Power: 4kw
  • Quantity of Stands: About 24 groups
  • Hydraulic Pressure: 10~12Mpa
  • Controlling System: PLC
  • Index Error of Length: 10m±1.5mm
  • Total Weight: About 1800kg
  • Voltage: 380V 3 phase 50Hz or at buyers requirement





  Main Components





  • Decoiler --------------------------------------------------- 1 Unit
  • Feeding --------------------------------------------------- 1 Unit
  • Main roll forming machine ----------------------------- 1 Unit
  • Hydraulic cutting device ------------------------------- 1 Unit
  • Hydraulic Station ---------------------------------------- 1 Unit
  • PLC computer control -------------------------------- --1 Unit
  • Output table --------------------------------------------- 1 Unit



High Precision Steel Structure Floor Deck Roll Forming Machine For Metal Decking Sheet 0







  Reference Drawings







High Precision Steel Structure Floor Deck Roll Forming Machine For Metal Decking Sheet 1

High Precision Steel Structure Floor Deck Roll Forming Machine For Metal Decking Sheet 2

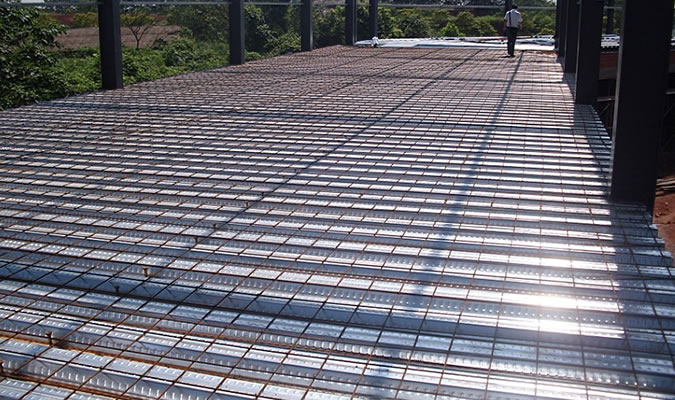

  Application





Steel floor deck, metal deck, steel deck, metal decking sheet, steel structure floor deck...





High Precision Steel Structure Floor Deck Roll Forming Machine For Metal Decking Sheet 3









  Our Advantage





  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

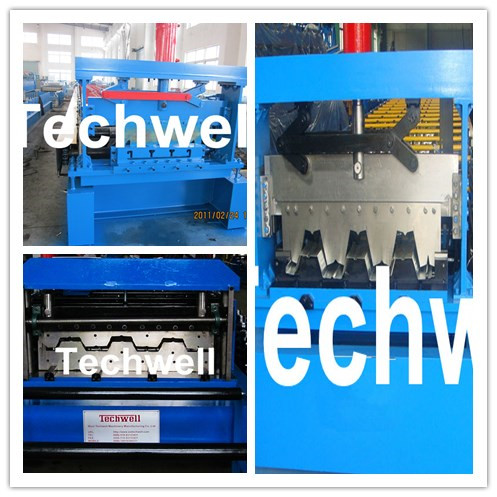

  Machine Picture



High Precision Steel Structure Floor Deck Roll Forming Machine For Metal Decking Sheet 4



High Precision Steel Structure Floor Deck Roll Forming Machine For Metal Decking Sheet 5

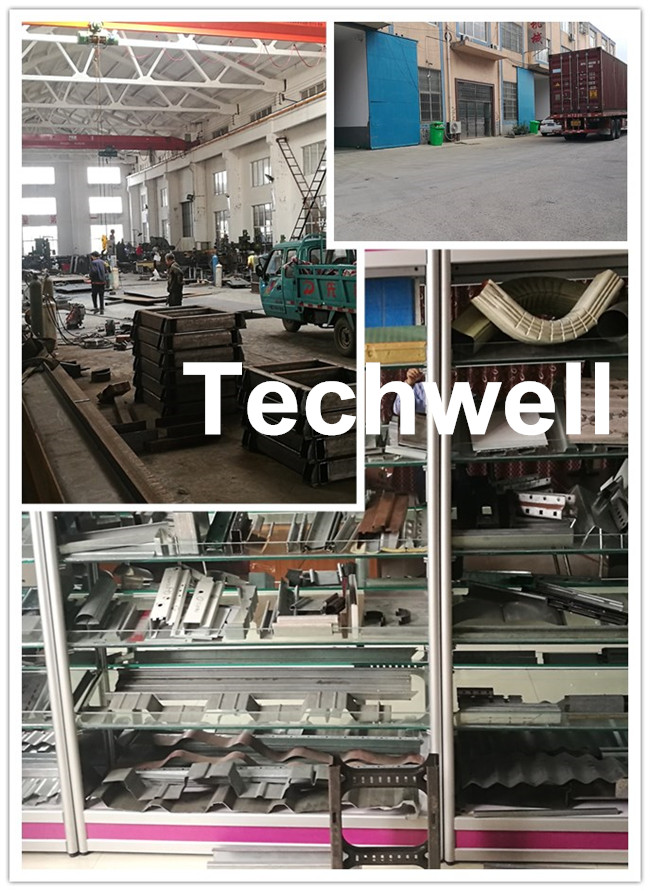

  Factory Pictures



High Precision Steel Structure Floor Deck Roll Forming Machine For Metal Decking Sheet 6





  Certificate









High Precision Steel Structure Floor Deck Roll Forming Machine For Metal Decking Sheet 7







   Contact Details





Company Wuxi Techwell Machinery Co.,Ltd
Website www.wxtechwell.com
www.cold-rollformingmachine.com
www.roofrollformingmachine.com
Tel/Fax 0086-510-83133431
Mobile/Whatsapp 0086-15861597732 (Miss Lemon)
E-Mail/Skype sales@wxtechwell.com
Reference Video Link

https://youtu.be/DGsaRUg8THM

https://youtu.be/5wPYdH9njRc
