PLC Control Deck Roll Forming Machine For Floor Decking Panel, Metal Decking Sheet

Name: PLC Control Deck Roll Forming Machine For Floor Decking Panel, Metal Decking Sheet
Brand: TECHWELL
SKU: TW-FD1250
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (160 reviews)

Large Image : PLC Control Deck Roll Forming Machine For Floor Decking Panel, Metal Decking Sheet

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE
Model Number:	TW-FD1250

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard packing
Delivery Time:	55-65 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 sets

Contact Now

Detailed Product Description

Material:	Galvanized Steel Sheet	Material Thickness:	0.8-1.2mm
Forming Speed:	10-12m/min	Hydraulic Station Plower:	4Kw
Control System:	PLC	Hydraulic Pressure:	10-12Mpa
High Light:	Deck Roll Forming Machine , Floor Deck Roll Forming Machine

PLC Control Deck Roll Forming Machine For Floor Decking Panel, Metal Decking Sheet

Main Specifications of Deck Roll Forming Machine

Material Spec: Galvanized steel sheet
Thickness of Coil Sheet: 0.8 --1.2 mm
Main Motor Power of Floor decking roll forming machine: 18.5kw
Forming Speed: 10--12m/min
Hydraulic Station Power: 4kw
Quantity of Stands: About 24 groups
Hydraulic Pressure: 10~12Mpa
Controlling System: PLC
Index Error of Length: 10m±1.5mm
Total Weight: About 1800kg
Voltage: 380V 3 phase 50Hz or at buyers requirement

Main Components

Decoiler --------------------------------------------------- 1 Unit
Feeding --------------------------------------------------- 1 Unit
Main roll forming machine ----------------------------- 1 Unit
Hydraulic cutting device ------------------------------- 1 Unit
Hydraulic Station ---------------------------------------- 1 Unit
PLC computer control ---------------------------------- 1 Unit
Output table --------------------------------------------- 1 Unit

PLC Control Deck Roll Forming Machine For Floor Decking Panel, Metal Decking Sheet 0

Reference Drawings

PLC Control Deck Roll Forming Machine For Floor Decking Panel, Metal Decking Sheet 1

PLC Control Deck Roll Forming Machine For Floor Decking Panel, Metal Decking Sheet 2

Application

Steel floor deck, metal deck, steel deck, metal decking sheet, steel structure floor deck...

PLC Control Deck Roll Forming Machine For Floor Decking Panel, Metal Decking Sheet 3

Our Advantage

High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

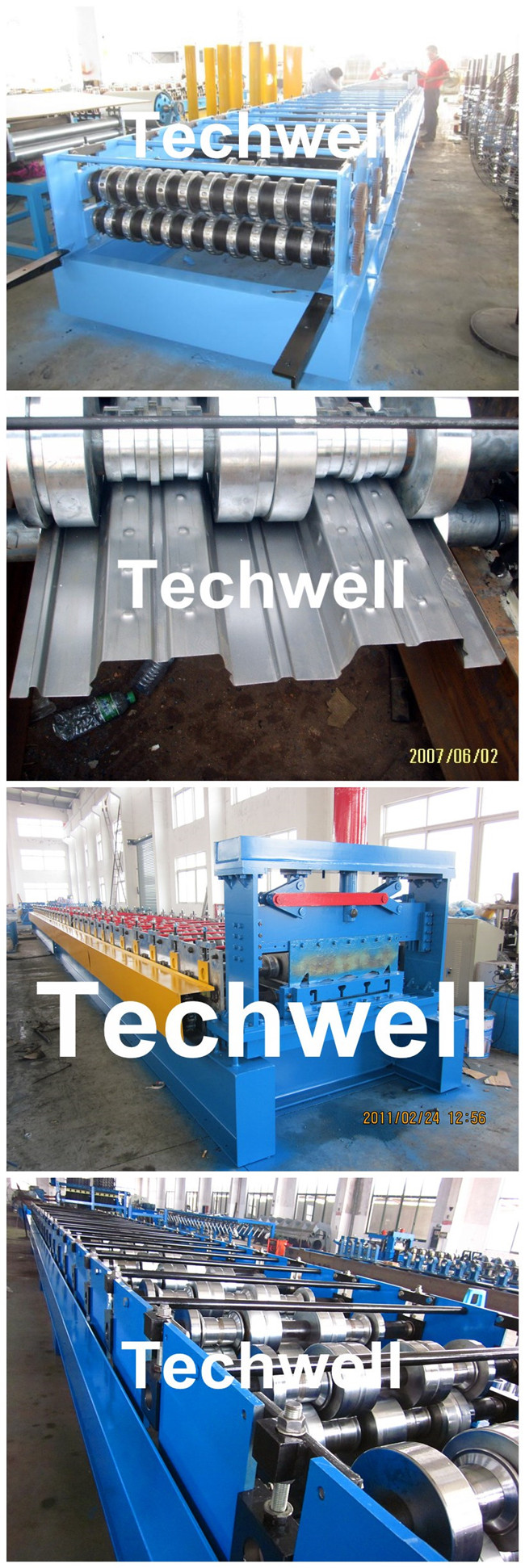

Machine Picture

PLC Control Deck Roll Forming Machine For Floor Decking Panel, Metal Decking Sheet 4

PLC Control Deck Roll Forming Machine For Floor Decking Panel, Metal Decking Sheet 5

Introduction of Our Company

PLC Control Deck Roll Forming Machine For Floor Decking Panel, Metal Decking Sheet 6

Certificate

PLC Control Deck Roll Forming Machine For Floor Decking Panel, Metal Decking Sheet 7

Contact Details

Company	Wuxi Techwell Machinery Co.,Ltd
Website	www.wxtechwell.com
	www.cold-rollformingmachine.com
	www.roofrollformingmachine.com
Tel/Fax	0086-510-83133431
Mobile/Whatsapp	0086-15861597732 (Miss Lemon)
E-Mail/Skype	sales@wxtechwell.com
Reference Video Link	https://youtu.be/B6pc2hIRUUM https://youtu.be/olvLCuRufSc https://youtu.be/DGsaRUg8THM
