75mm Roller Diameter, 7.5KW Steel Security Door Frame Roll Forming Machine

Name: 75mm Roller Diameter, 7.5KW Steel Security Door Frame Roll Forming Machine
Brand: TECHWELL
SKU: TW-DF100
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (144 reviews)

Large Image : 75mm Roller Diameter, 7.5KW Steel Security Door Frame Roll Forming Machine

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE
Model Number:	TW-DF100

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard packing
Delivery Time:	60-70 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 sets

Contact Now

Detailed Product Description

Roller Diameter:	75mm	Forming Speed:	0-10m/min
Forming Roller Stand:	About 18 Stations	Drive Type:	Chain Drive
Machine Frame Stand:	Welded Structural Steel	Main Power:	7.5KW
High Light:	door frame roll forming machine , shutter door roll forming machine

75mm Roller Diameter, 7.5KW Steel Security Door Frame Roll Forming Machine

Main Specifications

Roll Diameter: 75mm
Forming Roller stand: 18 Groups
Main Axis material: First grade 45# steel, heated and quenched
Roller material of Door Frame Roll Forming Machine: GCr15 Steel, Quenched and heated process
Forming Speed: 0-10 m/min
Dive Type: 1.2” Chain of transmission
Chain Material: 45# steel.
Machine Frame stand: Welded structural steel
Machine Base: 36# H steel
Thickmess of Fame Steel: 18mm
Main Power: 7.5KW

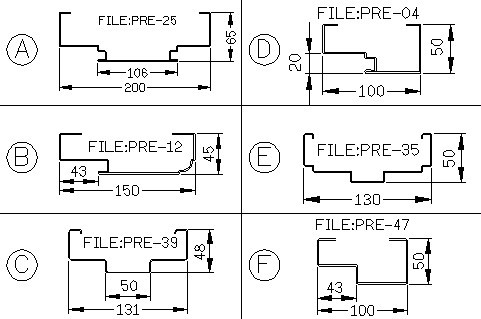

Door Frame Profile Drawings

75mm Roller Diameter, 7.5KW Steel Security Door Frame Roll Forming Machine 0

Main Components

Decoiler ---------------------------------------------- 1 Unit
Feeding & leveling------------------------------------ 1 Unit
Main roll forming machine --------------------------- 1 Unit
Hydraulic punching ----------------------------------- 1 Unit
Hydraulic cutting device ------------------------------ 1 Unit
Hydraulic Station ------------------------------------- 1 Unit
PLC computer control -------------------------------- 1 Unit
Output table ------------------------------------------ 1 Unit

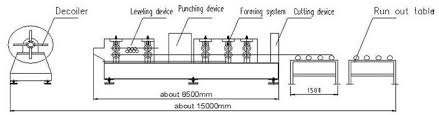

Work Flowing

Decoiler----Feeding & Leveling---Roll Forming---Hydraulic Punching---Cut-to-length---Output table

75mm Roller Diameter, 7.5KW Steel Security Door Frame Roll Forming Machine 1

Our Advantage

High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

Roller Shutter Door Forming Machine Pictures

75mm Roller Diameter, 7.5KW Steel Security Door Frame Roll Forming Machine 2

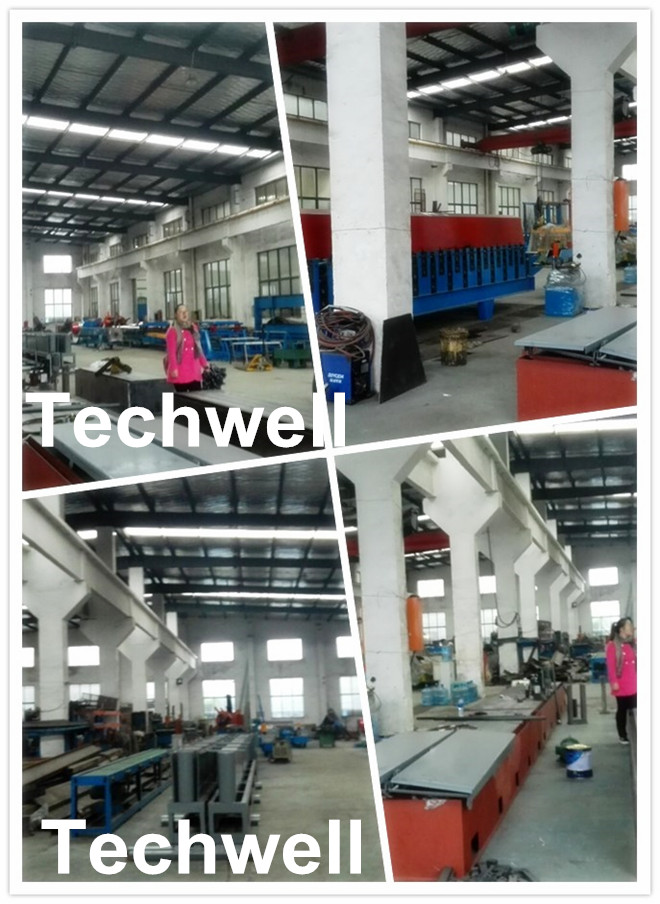

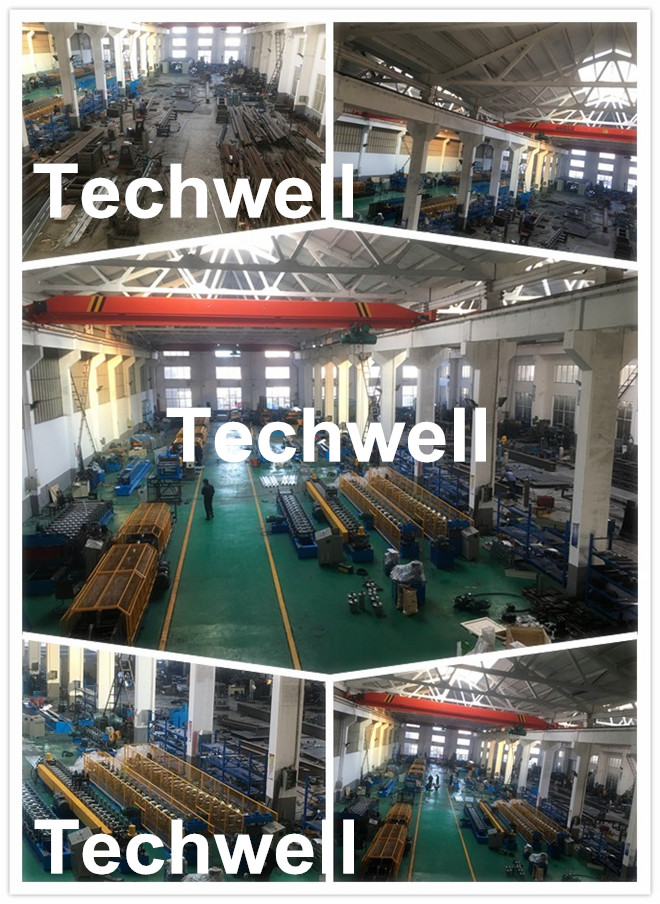

Factory Pictures

75mm Roller Diameter, 7.5KW Steel Security Door Frame Roll Forming Machine 3

75mm Roller Diameter, 7.5KW Steel Security Door Frame Roll Forming Machine 4

Certificate

75mm Roller Diameter, 7.5KW Steel Security Door Frame Roll Forming Machine 5
