3 - 12m/min Speed Manual Decoiler, 0.7 - 1.0mm PU Foam Roller Shutter Door Forming Machine

Name: 3 - 12m/min Speed Manual Decoiler, 0.7 - 1.0mm PU Foam Roller Shutter Door Forming Machine
Brand: TECHWELL
SKU: TW-PURD85
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (166 reviews)

Large Image : 3 - 12m/min Speed Manual Decoiler, 0.7 - 1.0mm PU Foam Roller Shutter Door Forming Machine

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE
Model Number:	TW-PURD85

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard packing
Delivery Time:	55-65 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 sets

Contact Now

Detailed Product Description

High Light:

door frame roll forming machine

shutter door roll forming machine

3 - 12m/min Speed Manual Decoiler, 0.7 - 1.0mm PU Foam Roller Shutter Door Forming Machine

Main Specifications

Sheet thickness: 0.7-1.0mm
Decoiler: Manual decoiler
Weight capacity of decoiler: 3 Ton
Forming Speed: 3-12m/min
Roller Material: CCr15 high grade steel with finish machining treatment, by high frequency quenched HRC58-62
Main power: 7.5KW
Cutting of PU Foam Rolling Door Slat Roll Forming Machine: Flying saw tracking cut
Cutting power: 3KW
Machine weight: about 13 Ton

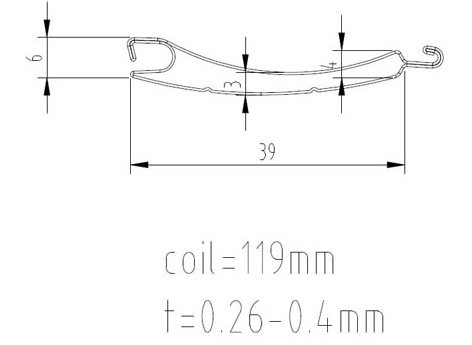

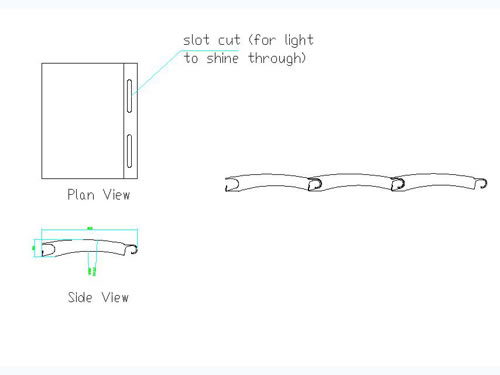

Profile Drawing

3 - 12m/min Speed Manual Decoiler, 0.7 - 1.0mm PU Foam Roller Shutter Door Forming Machine 0

3 - 12m/min Speed Manual Decoiler, 0.7 - 1.0mm PU Foam Roller Shutter Door Forming Machine 1

Main Components

Decoiler --------------------------------------------- 1 Unit
Feeding --------------------------------------------- 1 Unit
Levelling -------------------------------------------- 1 Unit
Main roll forming machine --------------------------- 1 Unit
PU Foam injection machine -------------------------- 1 Unit
cutting device --------------------------------------- 1 Unit
PLC computer control ------------------------------- 1 Unit
Output table ---------------------------------------- 1 Unit

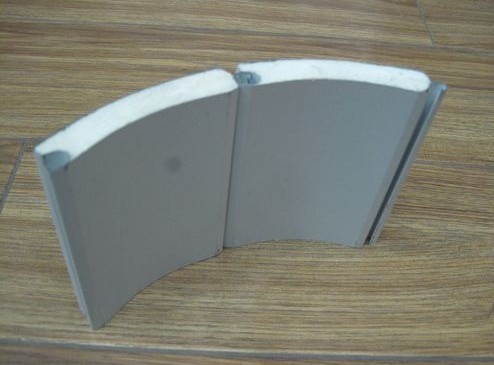

Applications

Pu foam Rolling shutter door, pu foam shutter door, pu foam roller shutter door, pu foam shutter door slat...

3 - 12m/min Speed Manual Decoiler, 0.7 - 1.0mm PU Foam Roller Shutter Door Forming Machine 2

Our Advantage

High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

Machine Pictures

3 - 12m/min Speed Manual Decoiler, 0.7 - 1.0mm PU Foam Roller Shutter Door Forming Machine 3

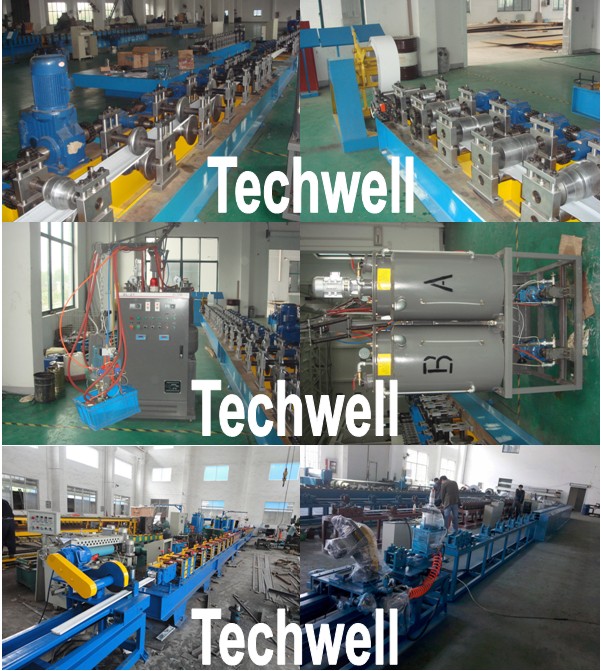

Factory Pictures

3 - 12m/min Speed Manual Decoiler, 0.7 - 1.0mm PU Foam Roller Shutter Door Forming Machine 4

3 - 12m/min Speed Manual Decoiler, 0.7 - 1.0mm PU Foam Roller Shutter Door Forming Machine 5

3 - 12m/min Speed Manual Decoiler, 0.7 - 1.0mm PU Foam Roller Shutter Door Forming Machine 6

3 - 12m/min Speed Manual Decoiler, 0.7 - 1.0mm PU Foam Roller Shutter Door Forming Machine 7

Certificate

3 - 12m/min Speed Manual Decoiler, 0.7 - 1.0mm PU Foam Roller Shutter Door Forming Machine 8
