0.4-0.8mm Seamless Gutter Machine for Rainwater Gutter , K Gutter , Half Round Gutter TW-GM5

Good quality Purlin Roll Forming Machine for sales
Good quality Purlin Roll Forming Machine for sales
Wuxi TECHWELL provide good quality roll forming machines, till now, the machines have been working 3 years, no any break, we are very satisfied.

—— Javier

WUXI TECHWELL SUPPLY HIGH QUALITY MACHINES WITH GOOD AFTER SERVICE AND REASONABLE PRICE, WHO ARE A RELIABLE MANUFACTURER IN CHINA.

—— ROOFTECH CO., LIMITED

I'm Online Chat Now

0.4-0.8mm Seamless Gutter Machine for Rainwater Gutter , K Gutter , Half Round Gutter TW-GM5

China 0.4-0.8mm Seamless Gutter Machine for Rainwater Gutter , K Gutter , Half Round Gutter TW-GM5 supplier
0.4-0.8mm Seamless Gutter Machine for Rainwater Gutter , K Gutter , Half Round Gutter TW-GM5 supplier 0.4-0.8mm Seamless Gutter Machine for Rainwater Gutter , K Gutter , Half Round Gutter TW-GM5 supplier

Large Image :  0.4-0.8mm Seamless Gutter Machine for Rainwater Gutter , K Gutter , Half Round Gutter TW-GM5

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-GM5

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 60-70 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description




Seamless K Gutter Forming Machine for Rainwater Gutter, K Gutter, Half Round Gutter TW-GM5










  Main Specifications of K Gutter Forming Machine







  • Material thickness: 0.4-0.8mm
  • Decoiler: Manaul or hydraulic decoiler
  • Weight capacity of decoiler: 3 Ton
  • Forming Station: 16
  • Main motor power: 3KW
  • Hydraulic power: 7.5KW
  • Forming Speed: 0-15m/min
  • PLC: Panasonic Brand
  • Cutting blade material: Cr12
  • Cutting: Hydraulic cutting
  • Drive: Chain transmission
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand








  Main Components







  • Decoiler ---------------------------------------------- 1 Unit
  • Feeding guide ---------------------------------------- 1 Unit
  • main roll forming machine ---------------------------- 1 Unit
  • Hydraulic cutting device ------------------------------ 1 Unit
  • Hydraulic Station ------------------------------------- 1 Unit
  • PLC computer control -------------------------------- 1 Unit
  • Output table ----------------------------------------- 1 Unit









  Working Flow






Decoiler--> Coil sheet guiding and feeding --> Roll forming machine --> Cut to length --> Out-put Table

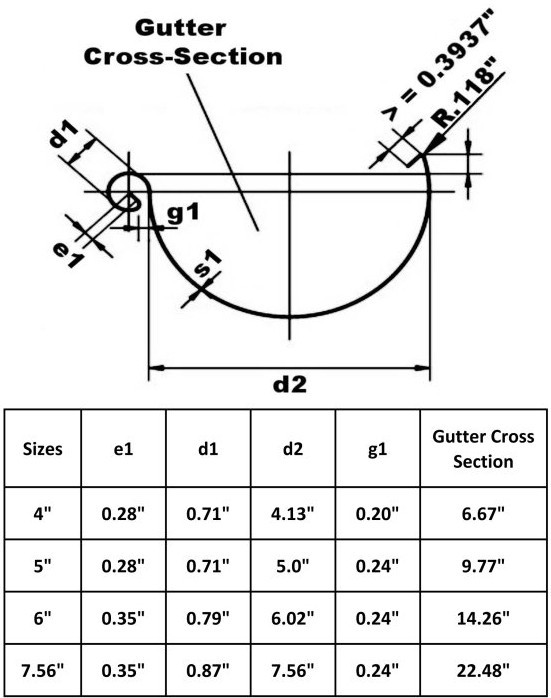

  Gutter Profile Drawing







0.4-0.8mm Seamless Gutter Machine for Rainwater Gutter , K Gutter , Half Round Gutter TW-GM5



0.4-0.8mm Seamless Gutter Machine for Rainwater Gutter , K Gutter , Half Round Gutter TW-GM5

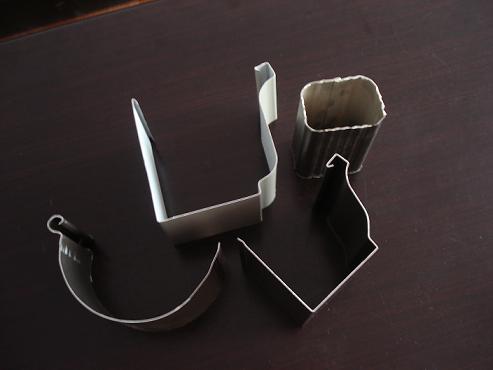

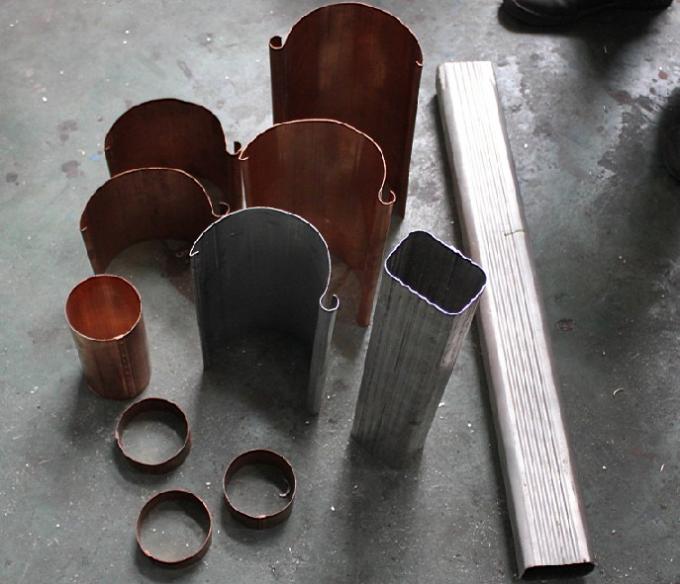

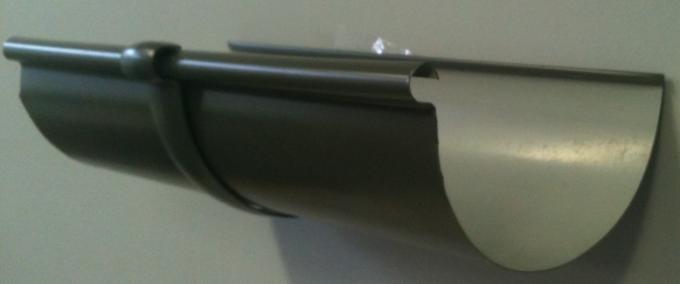

  Applications





Rainwater gutter, k gutter, half round gutter, box gutter ,seamless gutter





0.4-0.8mm Seamless Gutter Machine for Rainwater Gutter , K Gutter , Half Round Gutter TW-GM5

0.4-0.8mm Seamless Gutter Machine for Rainwater Gutter , K Gutter , Half Round Gutter TW-GM5

0.4-0.8mm Seamless Gutter Machine for Rainwater Gutter , K Gutter , Half Round Gutter TW-GM5









  Our Advantage





  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

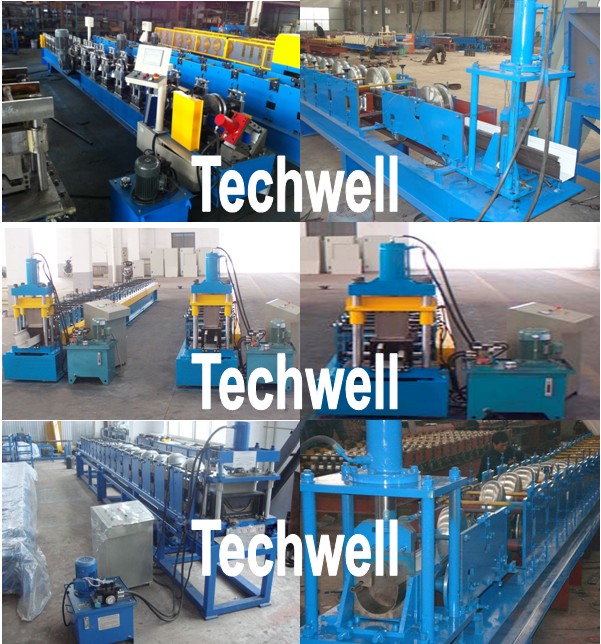

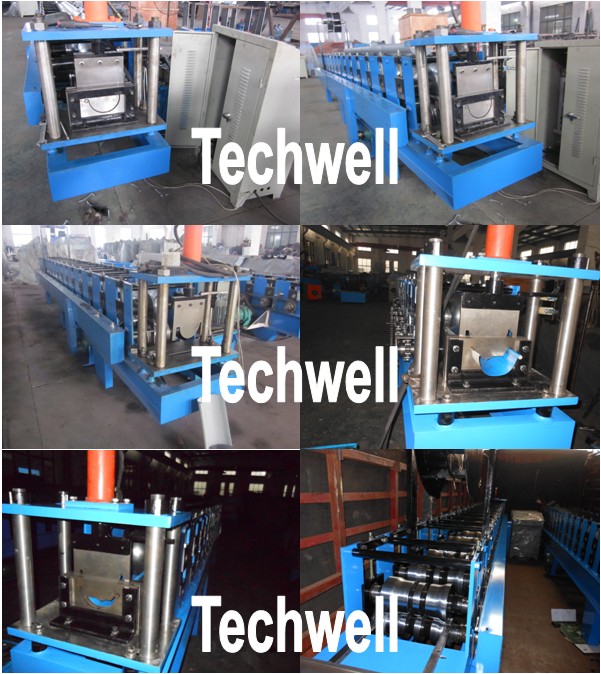

  Gutter Machine Pictures









0.4-0.8mm Seamless Gutter Machine for Rainwater Gutter , K Gutter , Half Round Gutter TW-GM5

0.4-0.8mm Seamless Gutter Machine for Rainwater Gutter , K Gutter , Half Round Gutter TW-GM5













  Factory Pictures









0.4-0.8mm Seamless Gutter Machine for Rainwater Gutter , K Gutter , Half Round Gutter TW-GM5

0.4-0.8mm Seamless Gutter Machine for Rainwater Gutter , K Gutter , Half Round Gutter TW-GM5

0.4-0.8mm Seamless Gutter Machine for Rainwater Gutter , K Gutter , Half Round Gutter TW-GM5









0.4-0.8mm Seamless Gutter Machine for Rainwater Gutter , K Gutter , Half Round Gutter TW-GM5









  Certificate









0.4-0.8mm Seamless Gutter Machine for Rainwater Gutter , K Gutter , Half Round Gutter TW-GM5
