Steel Structure Floor Deck Roll Forming Machine for Making Metal Structure Floor Decking Panel

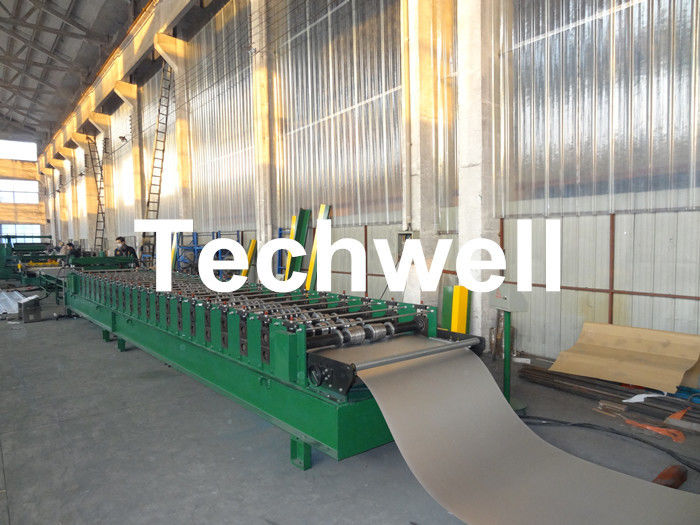

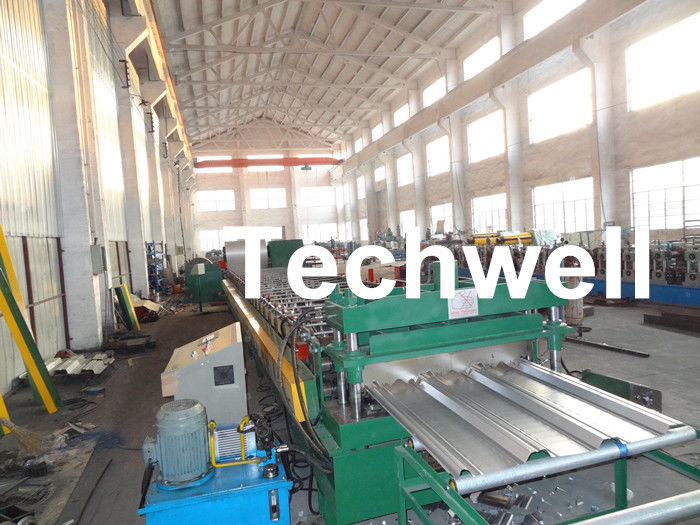

Steel Structure Floor Deck Roll Forming Machine for Making Metal Structure Floor Decking Panel
Steel Structure Floor Deck Roll Forming Machine for Making Metal Structure Floor Decking Panel Steel Structure Floor Deck Roll Forming Machine for Making Metal Structure Floor Decking Panel Steel Structure Floor Deck Roll Forming Machine for Making Metal Structure Floor Decking Panel Steel Structure Floor Deck Roll Forming Machine for Making Metal Structure Floor Decking Panel

Large Image :  Steel Structure Floor Deck Roll Forming Machine for Making Metal Structure Floor Decking Panel

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-FDM1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: Standard Packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Detailed Product Description
Material: Galvanized Steel Sheet Material Thickness: 0.8 --1.2 Mm
Controlling System: PLC Forming Speed: 10-12 M/ Min
Main Motor Power: 18.5kw Hydraulic Station Power: 4kw
High Light:

Deck Roll Forming Machine

,

Floor Deck Roll Forming Machine

Steel Structure Floor Deck Roll Forming Machine for Making Steel Structure Floor Decking Panel



   A). Introduction


The floor deck produced by Floor deck roll forming machine is used for floor decking in building. We need't dismantle the mould after pouring concrete, so we can finish the project as soon as we can. Normally, the raw material for decking floor is glazed galvanized sheet, we needn't decorate the ceiling again, due to it is beautiful enough.



This series product is suitable for steel structure factory and public great building.



   B). Main Components



  • Decoiler -------------------------------------------- 1 Unit
  • Feeding -------------------------------------------- 1 Unit
  • Main roll forming machine ------------------------- 1 Unit
  • Hydraulic cutting device --------------------------- 1 Unit
  • Hydraulic Station ----------------------------------- 1 Unit
  • PLC computer control ------------------------------ 1 Unit
  • Output table ---------------------------------------- 1 Unit



   C). Main Specifications

  1. Material Spec: Galvanized steel sheet
  2. Thickness of Coil Sheet: 0.8 --1.2 mm
  3. Main Motor Power: 18.5kw
  4. Forming Speed: 10--12m/min
  5. Hydraulic Station Power: 4kw
  6. Quantity of Stands: About 24 groups
  7. Hydraulic Pressure: 10~12Mpa
  8. Controlling System: PLC
  9. Index Error of Length: 10m±1.5mm
  10. Total Weight: About 1800kg
  11. Voltage: 380V 3 phase 50Hz or at buyers requirement

   D). Working Flow



Decoil -- Feeding -- Roll Forming -- Automatic Cutting -- Output Table



   E). Competitive Advantages



1. High Quality



2. Reasonable Price



3. Good after Service



4. Free Machine Design



5. 1 Year Warranty



6. More Than 10 Years Experience





   F). Machine Products Pictures



Steel Structure Floor Deck Roll Forming Machine for Making Metal Structure Floor Decking Panel 0

   G). Output Products Pictures



Steel Structure Floor Deck Roll Forming Machine for Making Metal Structure Floor Decking Panel 1



   H). Applications



Steel floor deck, metal deck, steel deck, metal decking sheet, steel structure floor deck...



   I). FAQ



Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components.



Q: What size decoiler can you supply us with?

A: From 5-ton decoiler to a 25-ton motorised hydraulic decoiler.



Q: Do you have a warranty on your machines?

A: One year warranty excluding electrical components.



Q: Do you have instruction manuals?

A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings.



Q: Once a machine arrives at our factory what happens then?

A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.



Q: My current machine rollers need to be replaced. Would you be able to assist me?

A: Yes. Send us your profile and specifications then we will manufacture the rollers for you.
