Automatic Steel Guide Rail Cold Roll Forming Machine for Making Security Door Guide Tracks

China Automatic Steel Guide Rail Cold Roll Forming Machine for Making Security Door Guide Tracks supplier
Automatic Steel Guide Rail Cold Roll Forming Machine for Making Security Door Guide Tracks supplier Automatic Steel Guide Rail Cold Roll Forming Machine for Making Security Door Guide Tracks supplier Automatic Steel Guide Rail Cold Roll Forming Machine for Making Security Door Guide Tracks supplier Automatic Steel Guide Rail Cold Roll Forming Machine for Making Security Door Guide Tracks supplier

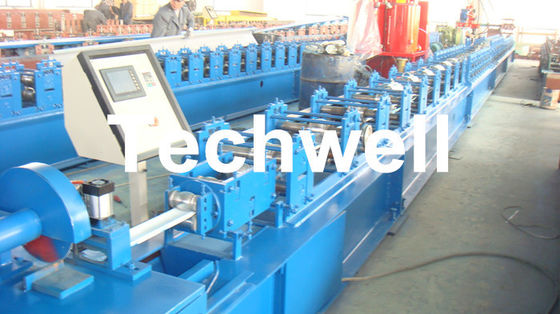

Large Image :  Automatic Steel Guide Rail Cold Roll Forming Machine for Making Security Door Guide Tracks

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-DFM100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: Standard Packing
Delivery Time: 55-65 Working Days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Material Thickness: 2.0-3.0mm Forming Speed: 0-15 M/ Min (Not Include Shear)
Forming Stations: 17 Sets Main Power: 7.5 KW
Cutting: Hydraulic Cutting Material: Galvanized Steel

Automatic Steel Guide Rail Cold Roll Forming Machine for Making Security Door Guide Tracks

   A). Description of Door Track Forming Machine



The guide rail roll forming line includes feeding device, de-coiler, roll forming machine, hydraulic device and PLC control system. The finished guide rails are commonly seen in elevator, door frame, window frame, curtain track, electrical wiring trough as well as other devices that need sliding system.



   B). Features of Door Track Forming Machine


1. Guide rail roll forming machine adopts multiple stations to increase the firmness of the machine.
2. It is configured with gearbox transmission to ensure more stable working of the machine.
3. This roll forming machine can cut steel material with thickness 2.0mm to 3.0mm.
4. Our PLC control system is imported from world famous Panasonic Company.



   C). Technical Specifications of Door Track Forming Machine



Productivity products as the drawing
Man Power Required One operator with one assistant
Working Hours per Day 8 to 16 hours
Number of Forming Stations 17 sets
Thickness 2.0-3.0mm
Main Power 7.5 KW
Shipment Packing one 40 FT container
Forming Speed 0-15 m/ min(Not include shear)
Line Direction Left to Right While Facing Operator Panel
Approximate Machine Height 1.5m





   D). Components & its Fuctions of Door Track Forming Machine



a - decoiler...................................................................passive decoiler

b - feeder applicator.....................................................to guide materia

c - roll forming..............................................................to roll avove profles

d - hydraulic stop to cut................................................cut at desired length

e - output table.............................................................support the finished products



   E). Working Flow of Door Track Forming Machine


Coil loading→ hydraulic decoiling→ leveling and feeding→ roll forming→cutting→ running out table


   F). Competitive Advantages


1. Professional

More than 10 years' rich experience!

a.Specialized in Manual Curved Arch Roof Sheet Forming Machine;

b.Keeping improving the quality.

2. Reasonable Price

We can save your money from every part!

a. Low labor cost;

b. Convenient transportation;

c. Complete supporting industries.

3. Easy to operate

More competitive!
a. High efficiency
b. Low energy consumption

c. Reliable working

4. OEM/ ODM

Customers’ design, color & logo are accepted!

Our outstanding experts and skilled workers are devoting their hard working, to ensure the machine with high quality.

5. ONE-Years warranty, whole life service.

Keep troubles far away from you!

Within the ONE-YEARS period, we could offer the replacement parts to the client free of charge for any parts damaged due to quality problems .




   G). More Machine Pictures


Automatic Steel Guide Rail Cold Roll Forming Machine for Making Security Door Guide Tracks

Automatic Steel Guide Rail Cold Roll Forming Machine for Making Security Door Guide Tracks


   H). Customer Visiting

Automatic Steel Guide Rail Cold Roll Forming Machine for Making Security Door Guide Tracks


   I). Machine To Container



Automatic Steel Guide Rail Cold Roll Forming Machine for Making Security Door Guide Tracks


   J). FAQ


1. How to get a accurate quotation from us?
a. Material width and thickness. b. drawing of profile.
As for the drawing, you can provide by yourself, or choose from our standard profiles.

2. How to repair & maintain our  Door Track Roll Forming Machine?

a. Normally, the machine can work without problem for at least 5 years.
b. If you have problem, do not change the machine by yourself. Tell us the problem, and we help you to solve it step by step.

3. What policy for broken parts?
Within the ONE-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems. After two years, you need to buy by factory cost.
