Galvanized Coil Tile Roll Forming Machine For Metal Roof Tile , Steel Roofing Sheet

Galvanized Coil Tile Roll Forming Machine For Metal Roof Tile , Steel Roofing Sheet

roof tile roll forming machine

ridge cap roll forming machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-GTM

Contact Us

Request A Quote
Product Details
Material Thickness:
0.3-0.8mm
Forming Station:
13-22 (Depend On Profile)
Forming Speed:
0-15m/min
Cutting Type:
Hydraulic Cutting
Machine Frame Stand:
Welded Structural Steel
Thickness Of Frame Steel:
About 18mm
Product Description

Galvanized Coil Tile Roll Forming Machine For Metal Roof Tile, Steel Roofing Sheet With Welded Structural Steel Frame Stand



   Description of Tile Roll Forming Machine



1. The structure is simple, the outlook is artistic, because the complete machine uses the section structure, after welding whole processing, therefore structure succinct reasonable, saves carries ability steadily, the revolution is reliable.



2. After the equipment roller wheel uses the high quality No. 45 forging steel precise manufacture, after coating the hard chromium on the surface, achieved the roller skin hardness is high, smooth, plate formation surface non-damage effect.



3. The stone roller is No. 45 steel after the quenching and retempering treatment, enhances the bearing the intensity, synthesis mechanical properties and so on degree of hardness



4. All of main primary device in electricity control system are imported from PANASONIC Japan.



5. Uses the completely automatic cut-length-off, the fixed-length localization is precise, shape of strip from beginning to end is artistic neat.







   Main Specifications of Galvanized Coil Tile Roll Forming Machine



  • Material thickness: 0.3-0.7mm,Color Steel, Galvanised coil
  • Material width: depend on customer’s requirement
  • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  • Weight Capacity Of Decoiler: 5 Ton
  • Main Motor Power: 5.5 Kw
  • Hydraulic Motor Power: 11 Kw
  • Forming Station: 13-22 ( depend on profile drawing )
  • Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
  • Main Axis Material: High grade 45#, quenched and heat treatment.
  • Axis Diameter: ¢ 75mm
  • Working Speed: 0-15 m/min
  • Transporting Type: Chain Transmission
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Type of Cutting: Hydraulic cutting
  • Material Of Cutting Blade: C r 12
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Machine Frame stand: Welded structural steel
  • Thickmess of Fame Steel: 18mm
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand
  • Machine Weight: about 8.5 Ton



   Main Components of Galvanized Coil Tile Roll Former





Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Main Roof Step Tile Roll Forming Machine 1 Unit
Hydraulic Pressing for Step 1 Unit
Hydraulic Cutting System 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Box 1 Unit
Support Tables 2 Units





   Tile Roll Former Reference Profile Drawing

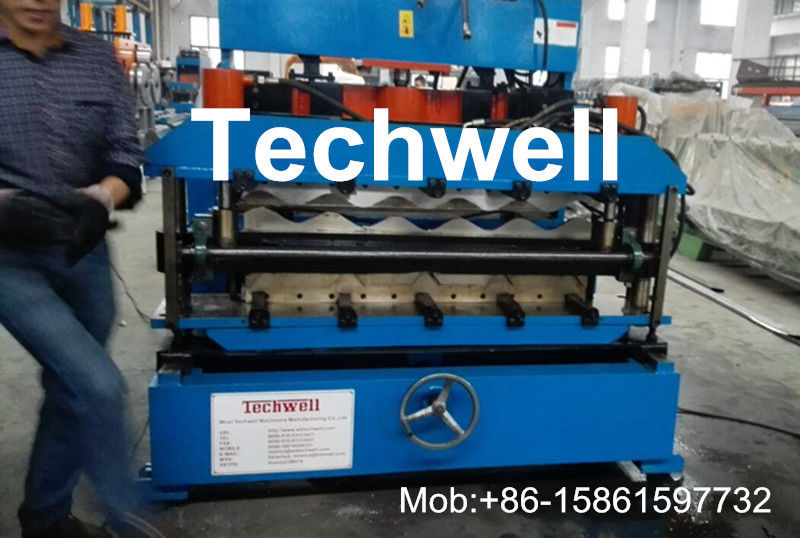

Galvanized Coil Tile Roll Forming Machine For Metal Roof Tile , Steel Roofing Sheet 0
