Cr12 Automatic Galvanized Steel Sheet Floor Deck Roll Forming Machine PLC frequency control

Cr12 Automatic Galvanized Steel Sheet Floor Deck Roll Forming Machine PLC frequency control

Metal Deck Roll Forming Machine

Deck Roll Forming Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-FD1250

Contact Us

Request A Quote
Product Details
Shaft Diameter:
90mm
Decoiler Type:
Manual Or Hydraulic Type
Main Motor Power:
18.5KW
Encoder:
OMRON Brand
Control System:
PLC Frequency Control
Power Source:
380V, 3Phase, 50Hz
Product Description

Cr12 Automatic Galvanized Steel Sheet Floor Deck Forming Machine, Decking Sheet Roll Former



   Introduction of Steel Floor Deck Forming Machine, Decking Sheet Roll Former



  • The metal deck produced by floor deck forming machine has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mould plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.



  • We also can do a custom roll forming machine, i.e. We can design the machine according to your specification and profile drawing.



  • One roll forming machine only can produce one profile.





   Main Components





  1. Decoiler / Uncoiler-----------------------------------------------------------1 Unit
  2. Feeding Device--------------------------------------------------------------1 Unit
  3. Main Roll Forming Machine------------------------------------------------1 Unit
  4. Hydraulic Cutting Device---------------------------------------------------1 Unit
  5. Hydraulic Station------------------------------------------------------------1 Unit
  6. PLC Computer Control-----------------------------------------------------1 Unit
  7. Output Table------------------------------------------------------------------1 Unit





   Main Specifications of Floor Deck Forming Machine



 Raw material  Galvanized steel sheets with strength 325Mpa
 Material Thickness  0.8-1.2mm
 Material Width  1220mm (depend on profile)
 Decoiler  Manual or Hydraulic type
 Roller stand  about 24 stations (Depend on final design)
 Shaft diameter  90mm
 Roller material  Gcr15 steel, quenched and heated process, HRC58-62
 Shaft material  First grade 45# steel, heated and quenched
 Main motor power  22KW
 Hydraulic station power  3.0KW
 Forming speed  10-12m/min
 Cutting type  Hydraulic cutting
 Blade material  Cr12 quenched treated
 Hydraulic pressure  10-12Mpa
 Controlling system  PLC





   Working Flow of Floor Deck Roll Former



Decoiler ---- Feeding guide Device ---- Roll Forming ---- Cutting Device ---- Support Table



Cr12 Automatic Galvanized Steel Sheet Floor Deck Roll Forming Machine PLC frequency control 0







   Reference Profile Drawing



Cr12 Automatic Galvanized Steel Sheet Floor Deck Roll Forming Machine PLC frequency control 1





   Applications



Steel floor deck, metal deck, steel deck, metal decking sheet, steel structure floor deck...



Cr12 Automatic Galvanized Steel Sheet Floor Deck Roll Forming Machine PLC frequency control 2







   Competitive Advantages



1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements

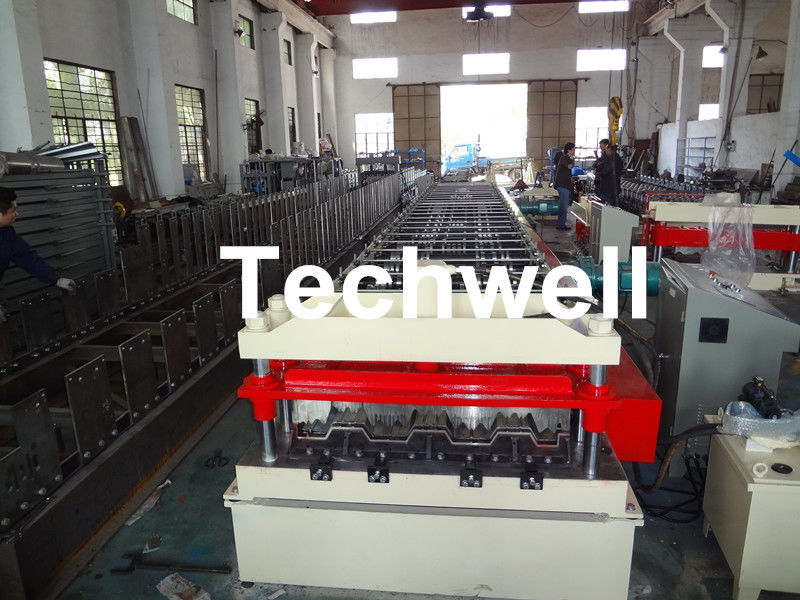

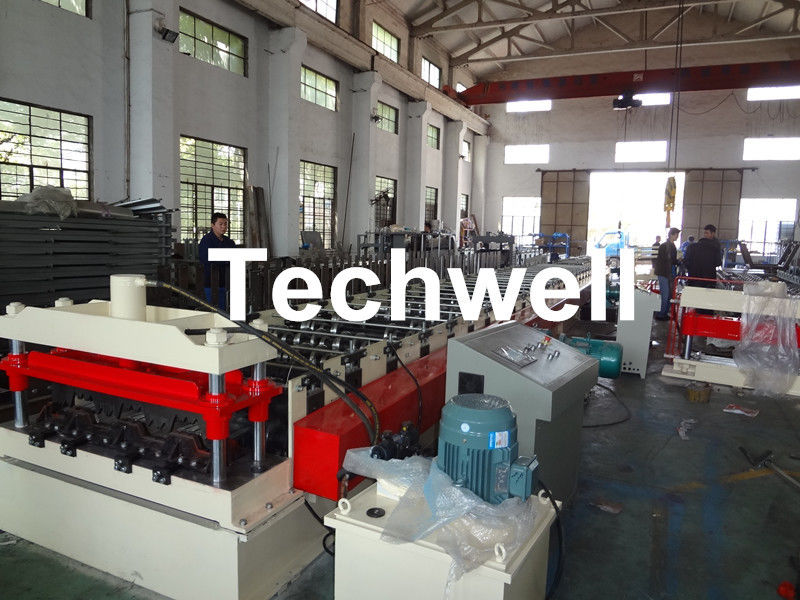

   More Floor Deck Reference Machine Pictures
