Aluminum , Carbon Steel Pu Foam Rolling Shutter Door Making Machine With Servo Tracking Flying-Saw Cutting

China Aluminum , Carbon Steel Pu Foam Rolling Shutter Door Making Machine With Servo Tracking Flying-Saw Cutting supplier
Aluminum , Carbon Steel Pu Foam Rolling Shutter Door Making Machine With Servo Tracking Flying-Saw Cutting supplier Aluminum , Carbon Steel Pu Foam Rolling Shutter Door Making Machine With Servo Tracking Flying-Saw Cutting supplier Aluminum , Carbon Steel Pu Foam Rolling Shutter Door Making Machine With Servo Tracking Flying-Saw Cutting supplier Aluminum , Carbon Steel Pu Foam Rolling Shutter Door Making Machine With Servo Tracking Flying-Saw Cutting supplier

Large Image :  Aluminum , Carbon Steel Pu Foam Rolling Shutter Door Making Machine With Servo Tracking Flying-Saw Cutting

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-PURD85

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Forming Frame Structure: Guiding Colum Material Thickness: 0.2-0.8mm
Main Power: 7.5KW Cutting Power: 2.2KW
Servo Motor Power: 1.5KW Curved Width: 39mm / 42mm / 45mm / 55mm / 65mm / 77mm

Aluminum, Carbon Steel Pu Foam Rolling Shutter Door Making Machine With Servo Tracking Flying-Saw Cutting



   Main Technical Parameters





 1). 3Ton Manual Decoiler



  1. Decoiler Type: Manual type decoiler

  2. Weight capacity of decoiler: 3Ton

  3. Manual expanding

  4. Passive uncoiling

  5. I.D: 508mm, 610mm



Aluminum , Carbon Steel Pu Foam Rolling Shutter Door Making Machine With Servo Tracking Flying-Saw Cutting



 2). Feeding Guide



  1. Function: It is used to release the head of coil and feed into the forming machine, making the coil straight and flat after decoiling.

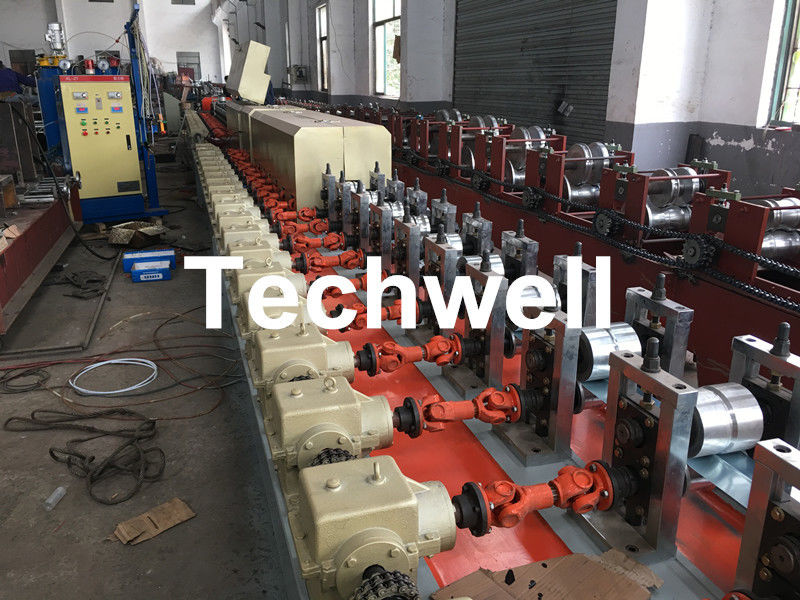

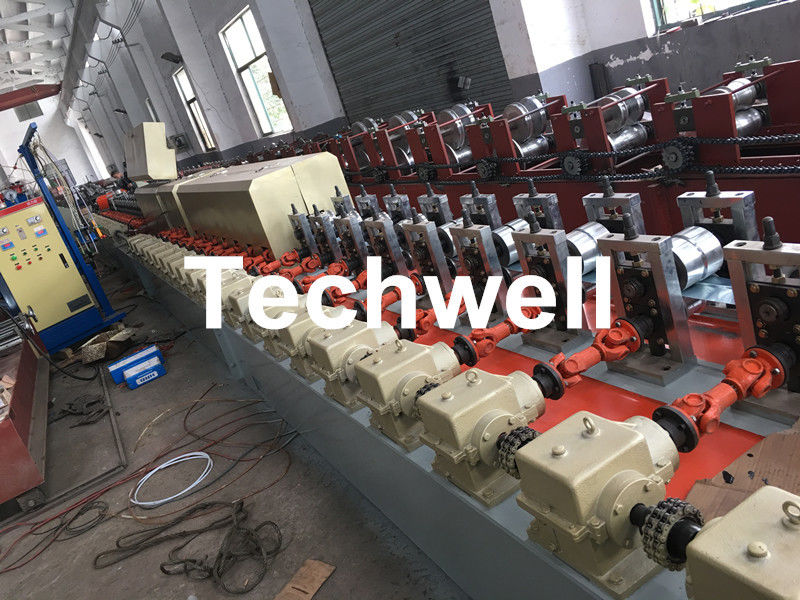

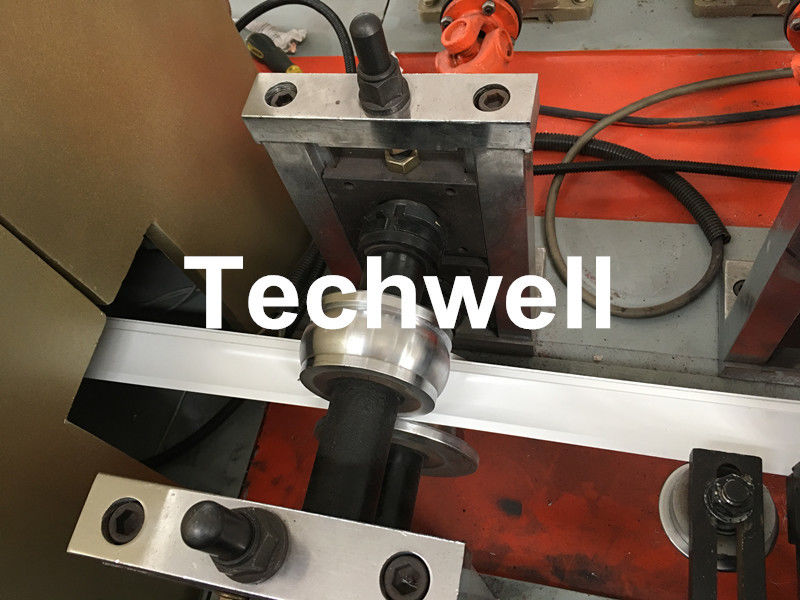

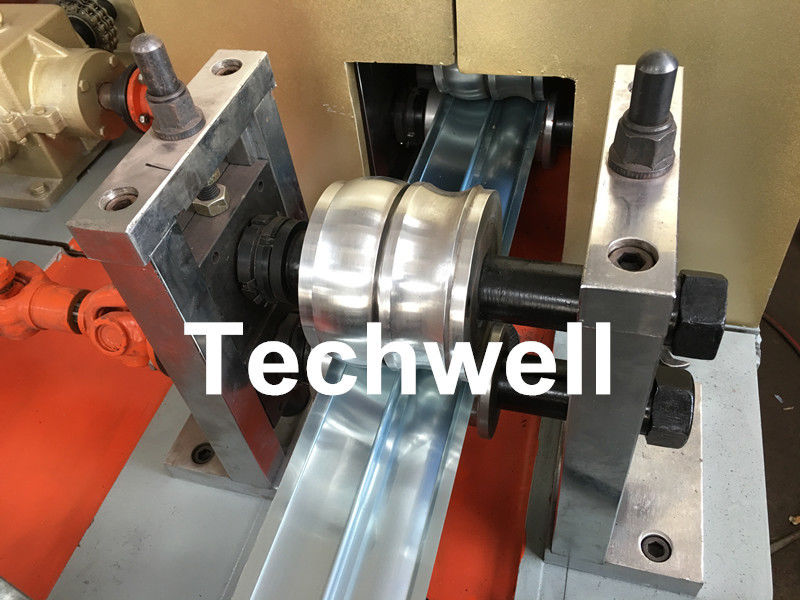

 3). Main PU Foam Roller Shutter Slat Machine



  1. It consists of machine frame, transmission parts and forming rollers etc.

  2. Material Thickness: 0.3-0.8mm

  3. Forming Material Type: Aluminum, GI. Carbon steel

  4. Machine Frame Stand: Welded structural steel with shot blasting treatment

  5. Shaft Diameter: 40mm or 50mm

  6. Material of Shaft: High grade 45# steel with heat treatment

  7. Roller Material: High grade GCr15, model steel, all treated by CNC precise machines, HRC50-54

  8. Forming Stations: about 34 stations (depend on final design)

  9. Forming Speed: 0-15m/min

  10. Forming Motor: 7.5KW

  11. Forming Structure: Guiding column

  12. Transmission: Gearbox drive

  13. Manually adjust the spaces and rollers can produce sheet of different thickness in a range.



Aluminum , Carbon Steel Pu Foam Rolling Shutter Door Making Machine With Servo Tracking Flying-Saw Cutting



 4). Foaming Machine



  1.PU Foam Machine: With two group " ISO / POLY "

  2. Low-pressure foaming machine



 5). Straighten Device



  1. To straighten the profile



 6). Pneumatic Punching Machine



  1. Material of Cutter: Cr12Mov, quenched HRC58-62

  2. Continuous punching



 7). Servo Tracking Flying-saw Cutting



  1. Servo tracking flying-saw cutting

  2. Cutting Power: 2.2KW

  3. Servo Power: 1.5KW



 8). PLC Control System



  1. Adopts PLC control technology, frequency adjust speed technology, realize the automatic production.

  2. Provide good man and machine screen, which can set the batches, plate length, and quantity.

  3. Operation type: Touching screen + Button

  4. Using encoder to calculate the number and measuring the length

  5. Electrical control: PLC frequency control system with touch screen

  6. PLC: PANASONIC Brand

  7. Encoder: OMRON Brand

  8. Size of PLC control board: 700mm (L) x 1000mm (H) x 300mm (W)



 9). Run-out Table



  1. It is used to support the finished panels

  2. Teh table we supply is 2 pieces with length of 2000mm, it can support panels with 10000mm at normal condition

  3. The frame of supporter is welded by square-steel

  4. Simple non-power table type





   Main Components



Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Main Roll Forming Machine 1 Unit
Heating Device 1 Unit
PU Injection Foaming Machine 1 Unit
Pneumatic Tracking Punching 1 Unit
Servo Flying-saw Cutting 1 Unit
PLC Electrical Control Board 1 Unit
Run out Support Table 1 Unit





   PU Foam Roller Shutter Profiles



Aluminum , Carbon Steel Pu Foam Rolling Shutter Door Making Machine With Servo Tracking Flying-Saw Cutting

Aluminum , Carbon Steel Pu Foam Rolling Shutter Door Making Machine With Servo Tracking Flying-Saw Cutting

Aluminum , Carbon Steel Pu Foam Rolling Shutter Door Making Machine With Servo Tracking Flying-Saw Cutting





   Layout of PU Foam Roller Shutter Slat Machine



Manual Decoiler --- Feeding Guide --- Roll Forming --- PU Foam Injection Machine --- Straighten Device --



- Pneumatic Punching --- Servo Flying-saw Cutting --- Run out Tables



Aluminum , Carbon Steel Pu Foam Rolling Shutter Door Making Machine With Servo Tracking Flying-Saw Cutting





   More Machine Pictures



Aluminum , Carbon Steel Pu Foam Rolling Shutter Door Making Machine With Servo Tracking Flying-Saw Cutting

Aluminum , Carbon Steel Pu Foam Rolling Shutter Door Making Machine With Servo Tracking Flying-Saw Cutting
